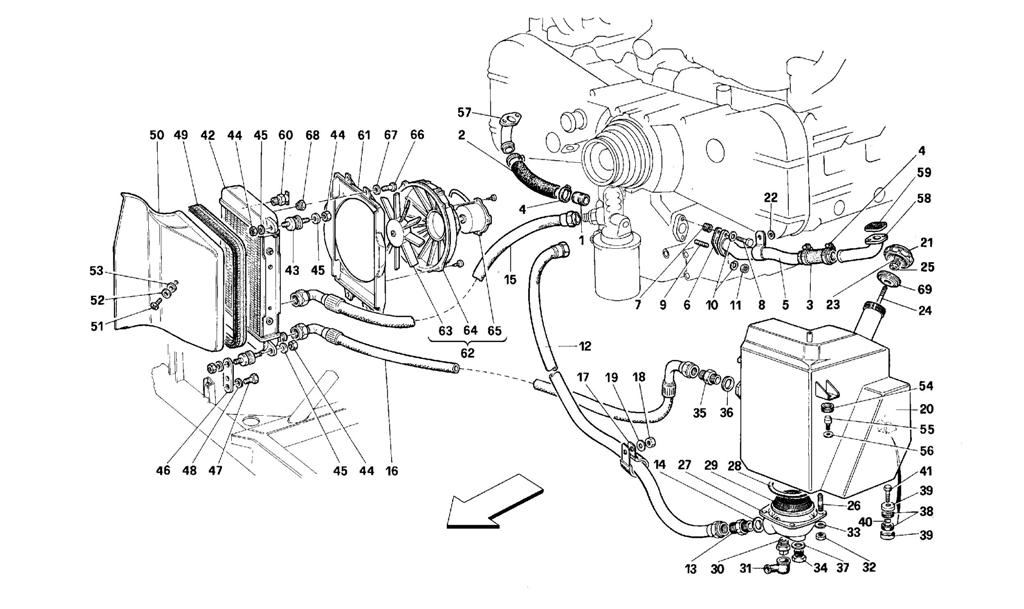

LUBRICATION

Location	Part #	Quantity*	Description	Price	Add To Cart
1	104561	1	Union	$14.21
2	122828	1	Sleeve	$49.76
3	122829	1	Sleeve	$56.33
4	168220	4	Clamp	$2.27
5	149786	1	L.H. cyl. head oil exhaust pipe	$140.09
6	150193	1	Gasket	$6.86
7	13525570	1	Heli-coil	$2.86
8	10902424	1	Screw		Unavailable
9	11500224	1	Stud		Unavailable
10	127494	2	Washer	$0.90
11	134041	1	Nut		Unavailable
12	146906	1	Hose from reservoir to pump	$5,143.78
13	138149	1	Union	$63.82
14	144485	1	Gasket		Superseded
15	146905	1	Hose from pump to radiator		Unavailable
16	146904	1	Hose from radiator to reservoir	$795.80
17	106195	1	Clamp	$80.67
18	102948	1	Nut		Superseded
19	14496424	1	Washer		Superseded
20	125517	1	Oil reservoir	$1,346.91
21	145623	1	Plug	$293.31
22	14496524	1	Washer	$0.90
23	12601274	1	Washer	$0.90
24	139646	1	Oil dip stick	$39.14
25	15896214	1	Nut		Unavailable
26	11500424	4	Stud		Unavailable
27	125473	1	Oil suction fan		Unavailable
28	125521	1	OR ring	$13.84
29	100332	1	Oil suction filter	$27.59
30	148676	1	Oil thermistor	$229.21
31	107003	1	Protection cap		Unavailable
32	102948	4	Nut		Superseded
33	12601274	4	Washer	$0.90
34	10300771	1	Plug	$17.00
35	138150	1	Union	$62.10
36	144487	1	Gasket		Superseded
37	10257060	1	Gasket	$0.90
38	107978	4	Rubber bushing	$15.35
39	107979	4	Cup	$14.90
40	107980	2	Bush	$8.20
41	123029	2	Screw		Unavailable
42	148519	1	Oil radiator -Valid after depletion of 148519		Superseded
43	102947	3	Buffer	$20.69
44	102948	6	Nut		Superseded
45	12643724	6	Washer		Superseded
46	149548	2	Bracket	$3.05
47	16296924	2	Screw		Unavailable
48	12643724	2	Washer		Superseded
49	149533	1	Gasket		Unavailable
50	149339	1	Conveyor	$56.72
51	10902521	1	Screw		Unavailable
52	12643724	1	Washer		Superseded
53	12601274	1	Washer	$0.90
54	10397480	1	Cable grommet	$1.89
55	125708	1	Pin		Unavailable
56	108242	1	Washer		Unavailable
57	122826	1	R.H. cylinder head oil exhaust port		Unavailable
58	149808	1	L.H. cylinder head oil exhaust port	$65.57
59	150192	2	Gasket	$7.63
60	123277	1	Temperature switch -Valid for CH	$243.74
61	140809	1	Cope -Valid for CH-	$880.90
62	153431	1	Complete electrofan -Valid for CH	$207.04
63	154223	1	Fan -Valid for CH-	$293.31
64	154224	1	Conveyor -Valid for CH	$224.29
65	154225	1	Motor -Valid for CH-	$259.82
66	10902424	4	Screw -Valid for CH-		Unavailable
67	14496424	4	Washer -Valid for CH-		Superseded
68	102948	4	Nut -Valid for CH-		Superseded
69	180585	1	Gasket	$95.80

* Quantity shown indicates the number of pieces used in the diagram.
