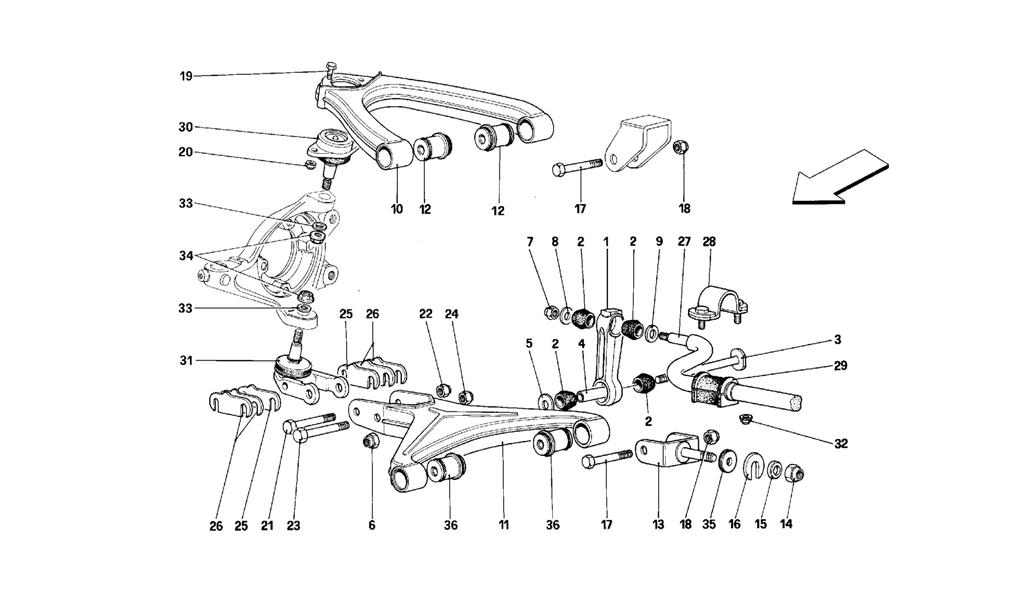

FRONT SUSPENSION - WISHBONES

FRONT SUSPENSION - WISHBONES

Location Part # Quantity* Description Price Add To Cart
1 114691 2 Bar link $1,012.81
2 100984 8 Pad Unavailable
3 132665 2 Pin $44.23
4 100985 2 Spacer $36.34
5 105334 2 Washer $50.30
6 148020 2 Nut $5.28
7 102742 2 Nut Unavailable
8 112874 2 Washer Unavailable
9 10520224 2 Washer Superseded
10 159372 2 Upper lever $934.94
11 159154 2 Lower lever Unavailable
12 154537 4 Flamblock for upper lever $73.22
13 146462 4 Lower fork $240.58
14 150238 4 Nut Unavailable
15 101041 4 Washer Unavailable
16 107338 0 Washer thick. 1,5 mm -Possible mounting Unavailable
16 107339 0 Washer thick. 2 mm -Possible mounting Unavailable
16 107340 0 Washer thick. 2,5 mm -Possible mounting Unavailable
16 107341 0 Washer thick. 3 mm -Possible mounting Unavailable
16 101039 0 Washer thick. 1 mm -Possible mounting Unavailable
16 107342 0 Washer thick. 3,25 mm -Possible mounting $1.14
17 106419 8 Screw $22.45
18 148020 8 Nut $5.28
19 16043724 4 Screw Unavailable
20 16104121 4 Nut Superseded
21 15971734 2 Screw $38.69
22 102742 2 Nut Unavailable
23 132667 2 Screw $31.95
24 148020 2 Nut $5.28
25 101022 0 Incidence adjust. plate -Possible mounting $1.87
26 115073 0 Incidence adjust. plate -Possible mounting $1.83
27 149565 1 Stabilizer bar $359.05
28 138389 2 Cramp to ret. bar $132.80
29 149566 2 Pad $93.93
30 132776 2 Upper ball joint $166.83
31 133944 2 Lower ball joint $228.96
32 14058511 4 Nut Unavailable
33 122237 4 Washer $5.26
34 149807 4 Nut $1.34
35 159406 4 Washer $20.04
36 154537 4 Flamblock for lower lever $73.22

* Quantity shown indicates the number of pieces used in the diagram.
