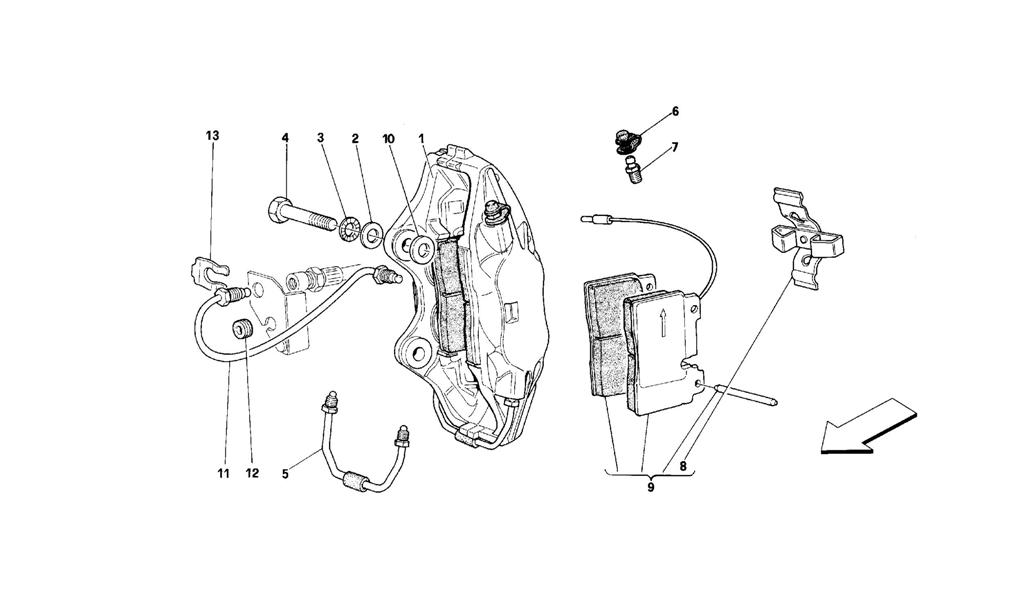

FRONT BRAKES CALIPERS

Go to Split View

FRONT BRAKES CALIPERS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 142478 *Qty: 1 L.H. front caliper with pads (TEVES) $1,221.15
Location: 1 Prev | Next Part: 142479 *Qty: 1 R.H. front caliper with pads (TEVES) $1,526.84
Location: 1 Prev | Next Part: 151901 *Qty: 1 R.H. front caliper with pads (BREMBO) Call
Location: 1 Prev | Next Part: 151902 *Qty: 1 L.H. front caliper with pads (BREMBO) Call
Location: 2 Prev | Next Part: 106616 *Qty: 4 Washer $1.51
Location: 3 Prev | Next Part: 10615874 *Qty: 4 Washer $0.90
Location: 4 Prev | Next Part: 174214 *Qty: 4 Screw $5.04
Location: 5 Prev | Next Part: 151962 *Qty: 2 Connection hose $164.44
Location: 6 Prev | Next Part: 147136 *Qty: 2 Cap $8.74
Location: 7 Prev | Next Part: 147135 *Qty: 2 Screw $17.90
Location: 8 Prev | Next Part: 151963 *Qty: 2 Pads spring $24.33
Location: 9 Prev | Next Part: 70000766 *Qty: 1 Set of front pads with spring and pin (TEVES) Superseded
Location: 9 Prev | Next Part: 70000823 *Qty: 1 Set of front pads with spring and pin (BREMBO) $430.90
Location: 10 Prev | Next Part: 156260 *Qty: 0 Washer 0,2 mm thickness -Possible mounting $1.37
Location: 10 Prev | Next Part: 156261 *Qty: 0 Washer 0,3 mm thickness -Possible mounting $1.57
Location: 10 Prev | Next Part: 156262 *Qty: 0 Washer 0,5 mm thickness -Possible mounting $1.37
Location: 10 Prev | Next Part: 156263 *Qty: 0 Washer 0,6 mm thickness -Possible mounting $1.39
Location: 10 Prev | Next Part: 156264 *Qty: 0 Washer 0,7 mm thickness -Possible mounting $1.37
Location: 10 Prev | Next Part: 156265 *Qty: 0 Washer 0,8 mm thickness -Possible mounting Call
Location: 10 Prev | Next Part: 156266 *Qty: 0 Washer 1,0 mm thickness -Possible mounting $1.37
Location: 11 Prev | Next Part: 147974 *Qty: 1 Pipe from hose to R.H. front caliper (ATE) $15.12
Location: 11 Prev | Next Part: 147975 *Qty: 1 Pipe from hose to L.H. front caliper (ATE) $7.73
Location: 11 Prev | Next Part: 152049 *Qty: 1 Pipe from hose to R.H. front caliper (BREMBO) $17.50
Location: 11 Prev | Next Part: 152050 *Qty: 1 Pipe from hose to L.H. front caliper (BREMBO) $17.50
Location: 12 Prev | Next Part: 10396380 *Qty: 2 Cable grommet $0.90
Location: 13 Prev | Next Part: 116374 *Qty: 4 Spring $2.59

* Quantity shown indicates the number of pieces used in the diagram.
