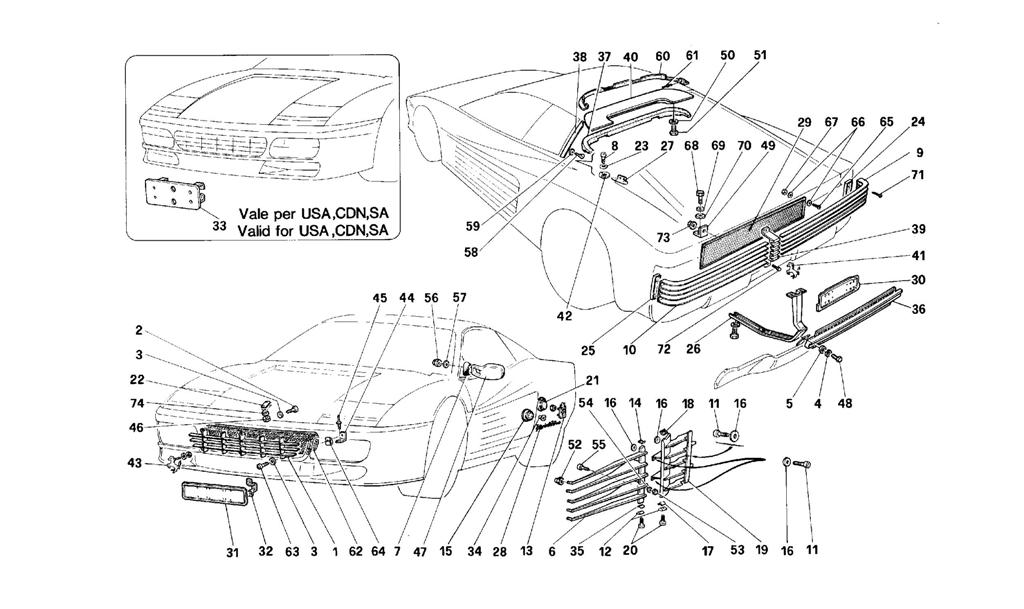

EXTERNAL FINISHING

Go to Split View

EXTERNAL FINISHING

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 63025100 *Qty: 1 Radiator mask Call
Location: 2 Prev | Next Part: 15643978 *Qty: 10 Screw $0.90
Location: 3 Prev | Next Part: 62767100 *Qty: 5 Washer $0.90
Location: 4 Prev | Next Part: 106850 *Qty: 2 Washer Superseded
Location: 5 Prev | Next Part: 12643778 *Qty: 2 Washer $0.90
Location: 6 Prev | Next Part: 61575300 *Qty: 1 R.H. door grill $1,170.85
Location: 6 Prev | Next Part: 61575400 *Qty: 1 L.H. door grill $1,854.74
Location: 7 Prev | Next Part: 61574500 *Qty: 1 R.H. bellow -Not for RHD- $25.56
Location: 7 Prev | Next Part: 61574600 *Qty: 1 L.H. bellow -Not for RHD- $25.56
Location: 7 Prev | Next Part: 61575100 *Qty: 1 R.H. bellow -Valid for RHD- $30.45
Location: 7 Prev | Next Part: 61575200 *Qty: 1 L.H. bellow -Valid for RHD- $30.45
Location: 8 Prev | Next Part: 14305527 *Qty: 2 Screw $0.90
Location: 9 Prev | Next Part: 61490600 *Qty: 1 R.H. rear grill Call
Location: 10 Prev | Next Part: 61490500 *Qty: 1 Rear L.H. grill Call
Location: 11 Prev | Next Part: 14305382 *Qty: 18 Screw $2.14
Location: 12 Prev | Next Part: 61488900 *Qty: 4 Special washer $0.90
Location: 13 Prev | Next Part: 63022600 *Qty: 2 Pininfarina mark $68.96
Location: 14 Prev | Next Part: 61579400 *Qty: 1 R.H. upper gasket fixing door grill $1.50
Location: 14 Prev | Next Part: 61579500 *Qty: 1 L.H. upper gasket fixing door grill Call
Location: 15 Prev | Next Part: 62767200 *Qty: 2 Plug Call
Location: 16 Prev | Next Part: 12643778 *Qty: 18 Washer $0.90
Location: 17 Prev | Next Part: 61489200 *Qty: 1 R.H. lower gasket fixing door grill Call
Location: 17 Prev | Next Part: 61489300 *Qty: 1 L.H. lower gasket fixing door grill Call
Location: 18 Prev | Next Part: 61489500 *Qty: 1 L.H. upper gasket fixing door grill Call
Location: 18 Prev | Next Part: 61489400 *Qty: 1 R.H. upper gasket fixing door grill Call
Location: 19 Prev | Next Part: 61489600 *Qty: 1 R.H. side grill $2,100.57
Location: 19 Prev | Next Part: 61489700 *Qty: 1 L.H. side grill $1,795.35
Location: 20 Prev | Next Part: 14441582 *Qty: 4 Screw $3.97
Location: 21 Prev | Next Part: 62773400 *Qty: 2 Plug Call
Location: 22 Prev | Next Part: 60795400 *Qty: 1 Front ornament $233.13
Location: 23 Prev | Next Part: 12643778 *Qty: 2 Washer $0.90
Location: 24 Prev | Next Part: 61490800 *Qty: 1 R.H. gasket Call
Location: 25 Prev | Next Part: 61490700 *Qty: 1 L.H. gasket Call
Location: 26 Prev | Next Part: 63101800 *Qty: 2 Grill bracket $73.93
Location: 27 Prev | Next Part: 61576700 *Qty: 1 R.H. pin $44.47
Location: 27 Prev | Next Part: 61576800 *Qty: 1 L.H. pin $44.47
Location: 28 Prev | Next Part: 20043105 *Qty: 2 Pininfarina badge $109.35
Location: 29 Prev | Next Part: 61490300 *Qty: 1 Net for engine air exhaust Call
Location: 30 Prev | Next Part: 63022800 *Qty: 1 Rear plate holder -Not for USA, CDN, SA, AUS, J $54.19
Location: 30 Prev | Next Part: 63025500 *Qty: 1 Rear plate holder -Valid for USA, CDN, SA $42.48
Location: 30 Prev | Next Part: 63465400 *Qty: 1 Rear plate holder -Valid for AUS $34.75
Location: 31 Prev | Next Part: 63024400 *Qty: 1 Front plate holder -Not for I, AUS, USA, CDN, SA, F, J $135.36
Location: 31 Prev | Next Part: 63465000 *Qty: 1 Front plate holder -Valid for AUS $38.48
Location: 31 Prev | Next Part: 61536900 *Qty: 1 Front plate holder -Valid for I Call
Location: 32 Prev | Next Part: 63025200 *Qty: 2 Bracket for plate -Not for USA, CDN, SA, F, J $5.86
Location: 33 Prev | Next Part: 63102100 *Qty: 1 Front plate holder -Valid for F $53.13
Location: 33 Prev | Next Part: 63025300 *Qty: 1 Front plate holder -Valid for USA, CDN, SA $110.58
Location: 34 Prev | Next Part: 60324506 *Qty: 4 Spring for pins Superseded
Location: 35 Prev | Next Part: 61579600 *Qty: 1 R.H. lower gasket fixing door grill Call
Location: 35 Prev | Next Part: 61579700 *Qty: 1 L.H. lower gasket fixing door grill Call
Location: 36 Prev | Next Part: 63021800 *Qty: 1 Rear underboby grill Call
Location: 37 Prev | Next Part: 61499900 *Qty: 1 Gasket Call
Location: 38 Prev | Next Part: 61491100 *Qty: 2 Gasket $18.36
Location: 39 Prev | Next Part: 61490900 *Qty: 1 Union for rear grill Call
Location: 40 Prev | Next Part: 63077900 *Qty: 1 Outside rear window bracket $482.37
Location: 41 Prev | Next Part: 63233900 *Qty: 1 Rear horse $111.50
Location: 42 Prev | Next Part: 61576900 *Qty: 1 L.H. bracket $19.80
Location: 42 Prev | Next Part: 61577000 *Qty: 1 R.H. bracket $19.80
Location: 43 Prev | Next Part: 63338300 *Qty: 1 Front horse $118.50
Location: 44 Prev | Next Part: 62799500 *Qty: 6 Net fix. bracket -Valid for CDN $15.58
Location: 45 Prev | Next Part: 60225901 *Qty: 1 Rivet -Valid for CDN $1.22
Location: 46 Prev | Next Part: 15896470 *Qty: 2 Nut $0.90
Location: 47 Prev | Next Part: 63091100 *Qty: 1 R.H. outside mirror -Valid for AUS $1,219.43
Location: 47 Prev | Next Part: 63091200 *Qty: 1 L.H. outside mirror -Valid for AUS $1,219.43
Location: 47 Prev | Next Part: 63114900 *Qty: 2 Mirror motor $45.20
Location: 47 Prev | Next Part: 63064800 *Qty: 1 R.H. outside mirror -Not for USA, CDN, GB, AUS $2,249.80
Location: 47 Prev | Next Part: 63064900 *Qty: 1 L.H. outside mirror -Not for USA, CDN, GB, ZA, AUS $2,249.80
Location: 47 Prev | Next Part: 63065000 *Qty: 1 R.H. outside mirror -Valid for USA and CDN $2,308.30
Location: 47 Prev | Next Part: 63065100 *Qty: 1 L.H. outside mirror -Valid for USA and CDN $1,157.29
Location: 47 Prev | Next Part: 63067700 *Qty: 1 R.H. outside mirror -Valid for GB and ZA $1,157.29
Location: 47 Prev | Next Part: 63067800 *Qty: 1 L.H. outside mirror -Valid for GB and ZA $1,126.72
Location: 48 Prev | Next Part: 10902387 *Qty: 2 Screw $1.08
Location: 49 Prev | Next Part: 63691000 *Qty: 1 Bracket $1.36
Location: 50 Prev | Next Part: 12643770 *Qty: 4 Washer $0.90
Location: 51 Prev | Next Part: 10902424 *Qty: 4 Screw $0.90
Location: 52 Prev | Next Part: 169180 *Qty: 10 Nut $0.90
Location: 53 Prev | Next Part: 14051849 *Qty: 4 Nut $0.90
Location: 54 Prev | Next Part: 10519377 *Qty: 4 Washer $0.90
Location: 55 Prev | Next Part: 20286704 *Qty: 4 Screw $1.79
Location: 56 Prev | Next Part: 15896214 *Qty: 6 Nut $0.90
Location: 57 Prev | Next Part: 10519424 *Qty: 6 Washer Call
Location: 58 Prev | Next Part: 15908478 *Qty: 6 Screw Call
Location: 59 Prev | Next Part: 62823200 *Qty: 6 Washer $0.90
Location: 60 Prev | Next Part: 63112000 *Qty: 1 Angle piece for rear window $69.30
Location: 61 Prev | Next Part: 60609700 *Qty: 7 Rivet $0.90
Location: 62 Prev | Next Part: 63027400 *Qty: 1 Net $145.72
Location: 63 Prev | Next Part: 15688178 *Qty: 6 Screw $2.24
Location: 64 Prev | Next Part: 62764200 *Qty: 2 Spring $0.90
Location: 65 Prev | Next Part: 10902287 *Qty: 4 Screw $0.92
Location: 66 Prev | Next Part: 12643778 *Qty: 8 Washer $0.90
Location: 67 Prev | Next Part: 14084211 *Qty: 4 Nut $0.90
Location: 68 Prev | Next Part: 10902287 *Qty: 1 Screw $0.92
Location: 69 Prev | Next Part: 10615476 *Qty: 1 Washer $0.90
Location: 70 Prev | Next Part: 12643778 *Qty: 1 Washer $0.90
Location: 71 Prev | Next Part: 13313277 *Qty: 4 Screw $0.99
Location: 72 Prev | Next Part: 10902487 *Qty: 2 Screw $73.36
Location: 73 Prev | Next Part: 13832101 *Qty: 2 Nut $0.90
Location: 74 Prev | Next Part: 149951 *Qty: 2 Washer Superseded

* Quantity shown indicates the number of pieces used in the diagram.
