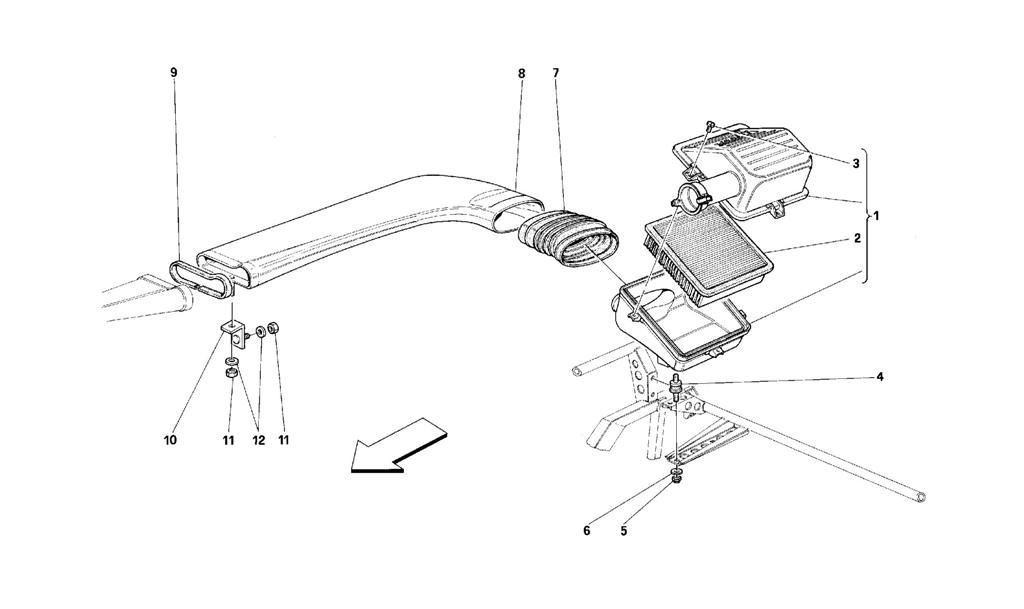

AIR INTAKE

Go to Split View

AIR INTAKE

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 148719 *Qty: 1 R.H. air intake assy -Not for CH $648.06
Location: 1 Prev | Next Part: 148720 *Qty: 1 L.H. air intake assy -Not for CH $648.06
Location: 1 Prev | Next Part: 152340 *Qty: 1 R.H. air intake assy -Valid for CH $1,073.59
Location: 1 Prev | Next Part: 152341 *Qty: 1 L.H. air intake assy -Valid for CH $1,073.59
Location: 2 Prev | Next Part: 151564 *Qty: 2 Air filter $39.91
Location: 3 Prev | Next Part: 10376577 *Qty: 6 Screw $1.14
Location: 4 Prev | Next Part: 142202 *Qty: 6 Damper support $10.09
Location: 5 Prev | Next Part: 15896214 *Qty: 6 Nut $0.90
Location: 6 Prev | Next Part: 10519424 *Qty: 6 Washer Call
Location: 7 Prev | Next Part: 63379200 *Qty: 2 Sleeve Call
Location: 8 Prev | Next Part: 63112600 *Qty: 1 R.H. rear air conveyor -Not for CH $37.82
Location: 8 Prev | Next Part: 63112700 *Qty: 1 L.H. rear air conveyor -Not for CH $37.82
Location: 8 Prev | Next Part: 63946300 *Qty: 1 R.H. rear air conveyor -Valid for CH $955.94
Location: 8 Prev | Next Part: 63946400 *Qty: 1 L.H. rear air conveyor -Valid for CH $707.92
Location: 9 Prev | Next Part: 63112800 *Qty: 2 Gasket -Not for CH- $3.93
Location: 10 Prev | Next Part: 63100500 *Qty: 2 Bracket $1.90
Location: 11 Prev | Next Part: 14084211 *Qty: 4 Nut $0.90
Location: 12 Prev | Next Part: 12643724 *Qty: 4 Washer Superseded

* Quantity shown indicates the number of pieces used in the diagram.
