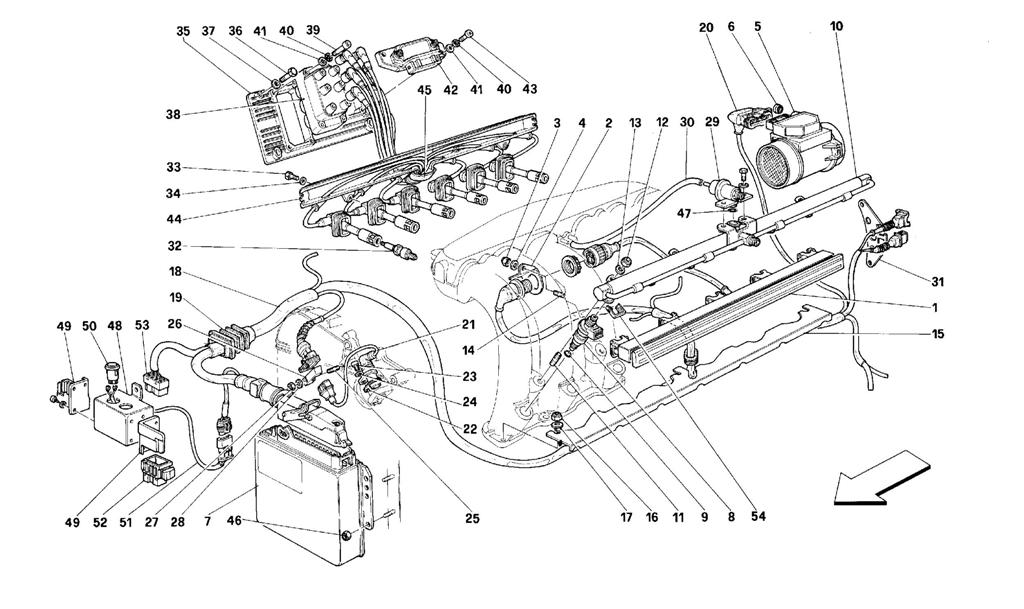

AIR INJECTION - IGNITION

AIR INJECTION - IGNITION

Location Part # Quantity* Description Price Add To Cart
1 147567 2 Connectors and cables box $734.56
2 145476 2 Bracket Unavailable
3 102741 2 Nut $0.90
4 12601274 2 Washer $0.90
5 154916 2 Air flow meter Unavailable
6 144092 2 Plug $12.20
7 149338 2 Ignition/supply control system Unavailable
8 144256 12 Injector Unavailable
9 133902 24 Gasket $6.70
10 149924 2 Delivery pipe $2,327.72
11 11500024 8 Stud $3.29
12 101239 8 Nut $2.44
13 12639701 8 Washer Unavailable
14 11499921 2 Stud Superseded
15 148533 2 Protection $177.75
16 16100821 6 Nut Unavailable
17 11194079 6 Washer Unavailable
18 147202 1 Injection system cables (cyl. 1/6) -Valid for USA, CDN, AUS, CH, SA, ZA, J $1,723.63
18 147203 1 Injection system cables (cyl.7/12) -Valid for USA, CDN, AUS, CH, SA, ZA, J Unavailable
18 150906 1 Injection system cables (cyl. 1/6) -Not for USA, CDN, AUS, CH, SA, ZA, J $1,412.31
18 150907 1 Injection system cables (cyl.7/12) -Not for USA, CDN, AUS, CH, SA, ZA, J $2,104.01
19 139465 2 Bellows $206.96
20 149023 2 Cap $6.64
21 130975 2 Angular speed sensor $152.82
22 140621 2 Spacer Unavailable
23 14305021 2 Screw Unavailable
24 12601274 2 Washer $0.90
25 11001224 2 Stud $1.10
26 144805 2 Support Unavailable
27 15896470 2 Nut Unavailable
28 11199279 2 Washer Unavailable
29 167321 2 Pressure regulator Unavailable
30 115042 2 Rubber pipe Unavailable
31 148861 2 Bracket $1.22
32 150180 12 Spark plug Superseded
33 10902111 4 Screw Superseded
34 11193279 4 Washer Unavailable
35 148421 2 Coil and module support $98.05
36 10903724 8 Screw $3.71
37 12639701 8 Washer Unavailable
38 138224 2 Coil Unavailable
39 13274972 8 Screw $2.68
40 149951 12 Washer Superseded
41 10519377 12 Washer Unavailable
42 201401 2 Power module $629.85
43 13274672 4 Screw Unavailable
44 188963 1 High tension complete cables for 7/12 cylinders Unavailable
44 188916 1 High tension complete cables for 1/6 cylinders Unavailable
45 150753 2 Cap $44.36
46 14059111 8 Nut Unavailable
47 152211 2 Gasket OR Unavailable
48 149320 1 Connectors fix. box $73.99
49 148682 2 Connectors fix. bracket $4.64
50 145810 2 Tester push -Valid for USA $13.24
51 146196 2 Tester push cable -Valid for USA Unavailable
52 146042 2 PM connector $27.95
53 146043 2 PF connector $16.16
54 144730 6 Injector retaining spring $3.74

* Quantity shown indicates the number of pieces used in the diagram.
