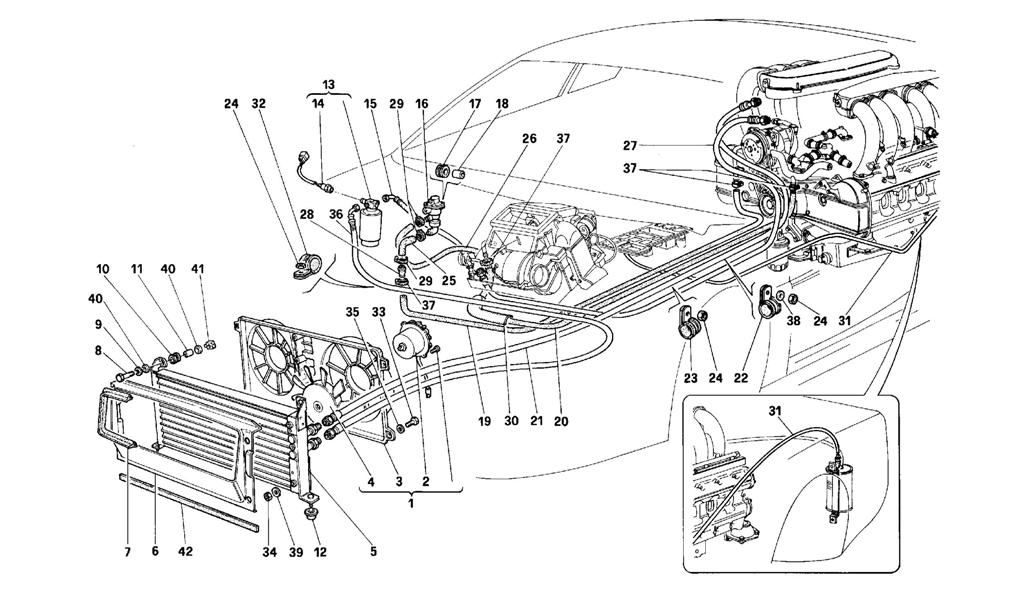

AIR CONDITIONING SYSTEM

AIR CONDITIONING SYSTEM

Location Part # Quantity* Description Price Add To Cart
1 63370600 1 Complete electro-fan $372.57
2 152409 2 Engine $183.61
3 63358800 1 Air conveyor $76.55
4 152412 2 Fan $43.08
5 63337600 1 A.C. condenser Unavailable
6 63028300 1 Air conveyor to condenser $492.60
7 63087700 1 Gasket $16.02
8 10902624 2 Screw Unavailable
9 127494 2 Washer $0.90
10 103549 2 Cable grommet $1.50
11 103550 2 Spacer $6.82
12 137624 2 Pad Unavailable
13 63638800 1 Dehydrator filter with pressostat -Valid for RHD Unavailable
13 62655500 1 Dehydrator filter with pressostat -Not for RHD $535.92
14 62433300 1 Pressostat $249.69
15 152225 1 Pipe from filter to evaporator -Valid for RHD $123.83
15 124024 1 Pipe from filter to evaporator -Not for RHD $162.18
16 61079000 1 Electromagnetic valve Unavailable
17 103549 2 Cable grommet $1.50
18 103550 2 Spacer $6.82
19 124029 1 Pipe from electromagnetic valve to engine $200.28
20 124027 1 Pipe from engine to evaporator Unavailable
21 149762 1 Pipe from compressor to condenser $178.19
22 119463 1 Bracket $51.50
23 10441890 2 Bracket $0.90
24 102948 4 Nut Superseded
25 125003 1 Pipe from electromagnetic valve to reduction $30.25
26 61615000 1 Pipe from evaporator to electro-fan $104.97
27 149977 1 Pipe from evaporator to compressor -Not for RHD $194.03
27 154108 1 Pipe from evaporator to compressor -Valid for RHD -Valid after stock exhaustion of 149977 $247.40
28 124030 1 Reduction $17.95
29 13000490 4 Clamp Superseded
30 61275000 2 Pipes insulation $118.67
31 62954400 1 Pipe from vacuum tank to push-button panel $14.23
32 10441490 2 Bracket Unavailable
33 10903821 4 Screw Unavailable
34 102948 4 Nut Superseded
35 14496421 4 Washer Unavailable
36 150474 1 Pipe from condenser to filter -Not for RHD $93.54
36 152231 1 Pipe from condenser to filter -Valid for RHD $113.36
37 13000390 4 Clamp $0.93
38 12643724 1 Washer Superseded
39 106744 4 Washer $11.43
40 12643724 4 Washer Superseded
41 60758600 2 Nut Unavailable
42 62660300 1 Gasket $12.18

* Quantity shown indicates the number of pieces used in the diagram.
