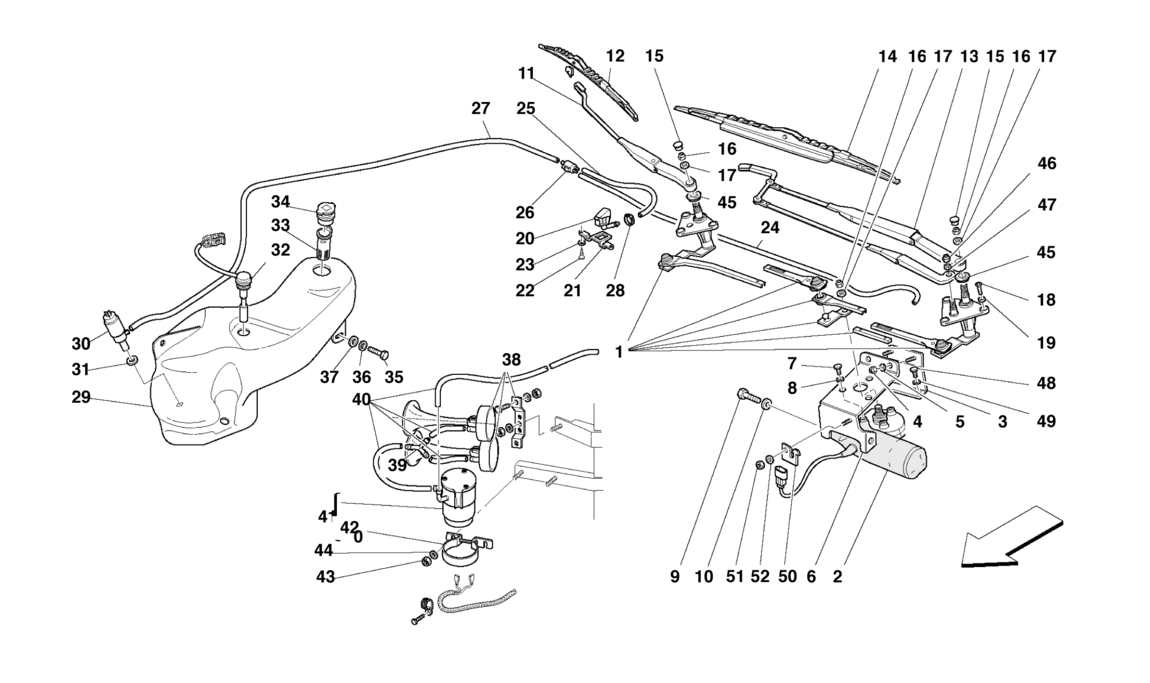

WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS

Go to Split View

WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 65081300 *Qty: 1 COMPLETE WINDSHIELD WIPER LEVERAGE -Not for RHD- $602.82
Location: 1 Prev | Next Part: 65202600 *Qty: 1 COMPLETE WINDSHIELD WIPER LEVERAGE -Valid for RHD- $967.90
Location: 2 Prev | Next Part: 63780200 *Qty: 1 WINDSHIELD WIPER MOTOR -Not for RHD- Unavailable
Location: 2 Prev | Next Part: 64275500 *Qty: 1 WINDSHIELD WIPER MOTOR -Valid for RHD- $498.03
Location: 3 Prev | Next Part: 63878800 *Qty: 1 WINDSHIELD WIPER MOTOR REAR BRACKET -Not for RHD- Unavailable
Location: 3 Prev | Next Part: 65206000 *Qty: 1 WINDSHIELD WIPER MOTOR REAR BRACKET -Valid for RHD- $446.94
Location: 4 Prev | Next Part: 104030 *Qty: 2 NUT $0.90
Location: 5 Prev | Next Part: 14499401 *Qty: 2 WASHER $0.90
Location: 6 Prev | Next Part: 65098800 *Qty: 1 WINDSHIELD WIPER MOTOR FRONT BRACKET -Not for RHD- $106.15
Location: 6 Prev | Next Part: 65454400 *Qty: 1 WINDSHIELD WIPER MOTOR FRONT BRACKET -Valid for RHD- $108.12
Location: 7 Prev | Next Part: 10902224 *Qty: 3 SCREW $0.90
Location: 8 Prev | Next Part: 127494 *Qty: 3 WASHER $0.90
Location: 9 Prev | Next Part: 16043324 *Qty: 2 SCREW $0.90
Location: 10 Prev | Next Part: 127496 *Qty: 2 WASHER $0.90
Location: 11 Prev | Next Part: 65081400 *Qty: 1 PASSENGER SIDE WINDSHIELD WIPER ARM -Not for RHD- $172.03
Location: 11 Prev | Next Part: 65202800 *Qty: 1 PASSENGER SIDE WINDSHIELD WIPER ARM -Valid for RHD- $539.01
Location: 12 Prev | Next Part: 65081600 *Qty: 1 PASSENGER SIDE WIPER BRUSH $234.12
Location: 13 Prev | Next Part: 65081500 *Qty: 1 DRIVER SIDE WINDSHIELD WIPER ARM -Not for RHD- $172.03
Location: 13 Prev | Next Part: 65849400 *Qty: 1 DRIVER SIDE WINDSHIELD WIPER ARM -Valid for GB- $623.65
Location: 14 Prev | Next Part: 63776100 *Qty: 1 DRIVER SIDE WIPER BRUSH $85.18
Location: 15 Prev | Next Part: 65190900 *Qty: 2 SMALL COVER -Not for RHD- $3.70
Location: 15 Prev | Next Part: 65081700 *Qty: 2 SMALL COVER -Valid for RHD- Unavailable
Location: 16 Prev | Next Part: 147985 *Qty: 3 NUT $0.90
Location: 17 Prev | Next Part: 12601374 *Qty: 3 WASHER $0.90
Location: 18 Prev | Next Part: 13312970 *Qty: 6 SCREW $0.90
Location: 19 Prev | Next Part: 62794700 *Qty: 6 WASHER $0.99
Location: 20 Prev | Next Part: 65191000 *Qty: 2 JET FOR WINDOW WASHING $3.27
Location: 21 Prev | Next Part: 65191700 *Qty: 2 BRACKET $6.87
Location: 22 Prev | Next Part: 15957077 *Qty: 4 SCREW $0.90
Location: 23 Prev | Next Part: 10519278 *Qty: 4 WASHER $0.90
Location: 24 Prev | Next Part: 65191400 *Qty: 1 PIPE FROM VALVE TO L.H. JET $4.90
Location: 25 Prev | Next Part: 65191500 *Qty: 1 PIPE FROM VALVE TO R.H. JET $3.23
Location: 26 Prev | Next Part: 61648100 *Qty: 1 NONRETURN VALVE $33.58
Location: 27 Prev | Next Part: 65191600 *Qty: 1 PIPE FROM PUMP TO VALVE $6.14
Location: 28 Prev | Next Part: 157990 *Qty: 2 SCREW COLLAR $2.27
Location: 29 Prev | Next Part: 66285600 *Qty: 1 WINDSHIELD WIPER AND HEAD LIGHT WASHER CONTAINER -Not for USA and CDN- $324.50
Location: 29 Prev | Next Part: 66533600 *Qty: 1 WINDSHIELD WIPER CONTAINER -Valid for USA and CDN- $598.13
Location: 30 Prev | Next Part: 65358700 *Qty: 1 WIPER PUMP $62.83
Location: 31 Prev | Next Part: 66645000 *Qty: 1 GASKET $6.87
Location: 32 Prev | Next Part: 65758700 *Qty: 1 LIQUID SENSOR $81.17
Location: 33 Prev | Next Part: 66645100 *Qty: 1 FILTER $7.52
Location: 34 Prev | Next Part: 69318000 *Qty: 1 PLUG FOR LIQUID $3.24
Location: 35 Prev | Next Part: 10902324 *Qty: 3 SCREW Superseded
Location: 36 Prev | Next Part: 12640624 *Qty: 3 WASHER $0.90
Location: 37 Prev | Next Part: 127494 *Qty: 3 WASHER $0.90
Location: 38 Prev | Next Part: 189428 *Qty: 1 ELECTRO-PNEUMATIC HORN $24.15
Location: 39 Prev | Next Part: 60741100 *Qty: 1 3-WAY UNION $0.90
Location: 40 Prev | Next Part: 183273 *Qty: 1 PIPE FOR COMPRESSOR $12.51
Location: 41 Prev | Next Part: 139920 *Qty: 1 ELECTRO-COMPRESSOR Unavailable
Location: 42 Prev | Next Part: 60741200 *Qty: 1 BRACKET $1.23
Location: 43 Prev | Next Part: 102741 *Qty: 3 NUT $0.90
Location: 44 Prev | Next Part: 12644424 *Qty: 3 WASHER $0.90
Location: 45 Prev | Next Part: 65504100 *Qty: 2 GASKET $2.07
Location: 46 Prev | Next Part: 15896472 *Qty: 1 NUT Superseded
Location: 47 Prev | Next Part: 12601176 *Qty: 1 WASHER $0.90
Location: 48 Prev | Next Part: 10902224 *Qty: 2 SCREW $0.90
Location: 49 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 50 Prev | Next Part: 156198 *Qty: 1 CLIP $18.21
Location: 51 Prev | Next Part: 113647 *Qty: 1 NUT $0.90
Location: 52 Prev | Next Part: 12637824 *Qty: 1 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
