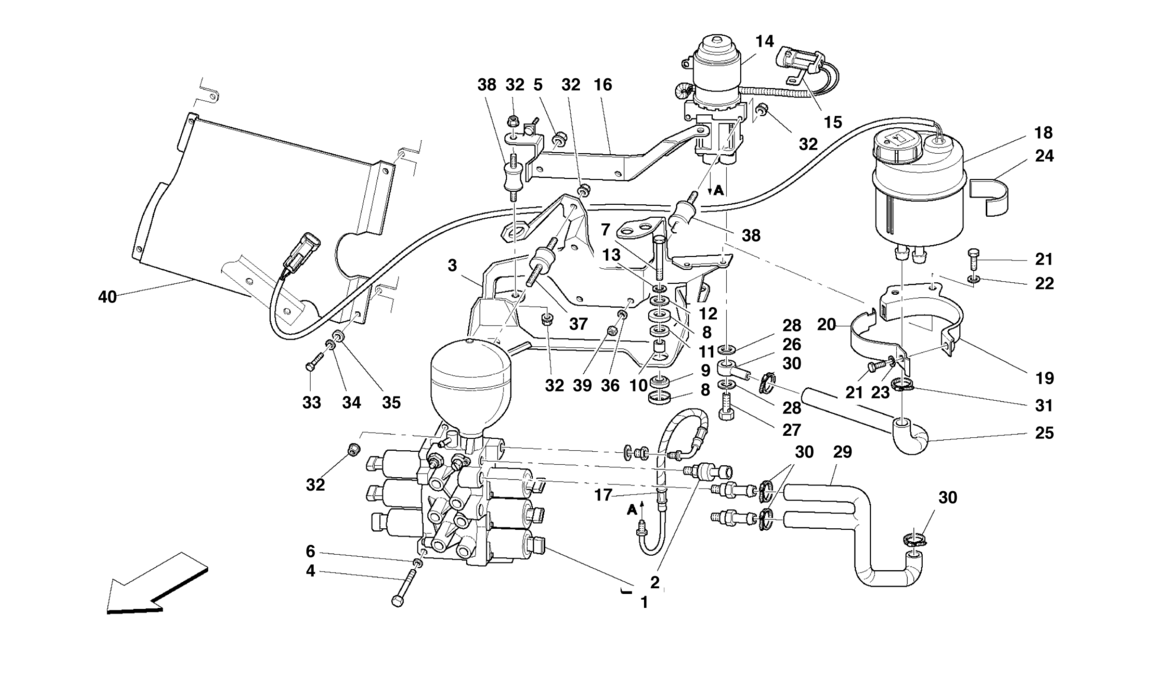

POWER UNIT AND TANK -Valid for F1

Go to Split View

POWER UNIT AND TANK -Valid for F1

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 212821 *Qty: 1 F1 CLUTCH HYDRAULIC CONTROL $7,444.30
Location: 1 Prev | Next Part: 179533 *Qty: 1 POWER UNIT $4,026.34
Location: 2 Prev | Next Part: 190662 *Qty: 1 PRESSURE SENSOR $300.68
Location: 3 Prev | Next Part: 196214 *Qty: 1 POWER UNIT SUPPORTING BRACKET $400.73
Location: 4 Prev | Next Part: 16043834 *Qty: 2 SCREW $0.90
Location: 5 Prev | Next Part: 175283 *Qty: 2 NUT $0.90
Location: 6 Prev | Next Part: 14496524 *Qty: 2 WASHER $0.90
Location: 7 Prev | Next Part: 10903424 *Qty: 3 SCREW $9.09
Location: 8 Prev | Next Part: 192345 *Qty: 6 CUP $2.95
Location: 9 Prev | Next Part: 192337 *Qty: 3 LOWER PAD $0.90
Location: 10 Prev | Next Part: 192344 *Qty: 3 SPACER FOR WICK $3.05
Location: 11 Prev | Next Part: 192339 *Qty: 3 UPPER PAD $0.90
Location: 12 Prev | Next Part: 12620474 *Qty: 3 WASHER $0.90
Location: 13 Prev | Next Part: 14446627 *Qty: 3 WASHER $0.90
Location: 14 Prev | Next Part: 247223 *Qty: 1 ELECTRIC PUMP Unavailable
Location: 15 Prev | Next Part: 162606 *Qty: 1 CLIP $1.61
Location: 16 Prev | Next Part: 195187 *Qty: 1 POWER UNIT SUPPORTING BRACKET $270.02
Location: 17 Prev | Next Part: 194328 *Qty: 1 PIPE FROM ELECTRICAL PUMP TO POWER UNIT $245.33
Location: 18 Prev | Next Part: 188685 *Qty: 1 OIL TANK $193.41
Location: 19 Prev | Next Part: 179593 *Qty: 1 RADIATOR SUPPORTING TANK SUPPORT $295.85
Location: 20 Prev | Next Part: 171746 *Qty: 1 SUPPORT CLAMP $24.30
Location: 21 Prev | Next Part: 10902124 *Qty: 3 SCREW $0.90
Location: 22 Prev | Next Part: 14496424 *Qty: 2 WASHER Superseded
Location: 23 Prev | Next Part: 12601274 *Qty: 1 WASHER $0.90
Location: 24 Prev | Next Part: 183718 *Qty: 1 RUBBER GASKET $3.16
Location: 25 Prev | Next Part: 194330 *Qty: 1 PIPE FROM TANK TO PUMP Unavailable
Location: 26 Prev | Next Part: 184958 *Qty: 1 SWINGING UNION $433.49
Location: 27 Prev | Next Part: 10185111 *Qty: 1 FILLER $4.83
Location: 28 Prev | Next Part: 10280050 *Qty: 2 GASKET Superseded
Location: 29 Prev | Next Part: 185095 *Qty: 1 PIPE FROM POWER UNIT TO TANK Unavailable
Location: 30 Prev | Next Part: 161490 *Qty: 4 SCREW COLLAR $2.16
Location: 31 Prev | Next Part: 13000390 *Qty: 1 SCREW COLLAR $0.90
Location: 32 Prev | Next Part: 14058421 *Qty: 9 NUT $1.26
Location: 33 Prev | Next Part: 10902124 *Qty: 4 SCREW $0.90
Location: 34 Prev | Next Part: 127494 *Qty: 4 WASHER $0.90
Location: 35 Prev | Next Part: 12643724 *Qty: 4 WASHER Superseded
Location: 36 Prev | Next Part: 12604274 *Qty: 3 WASHER $0.90
Location: 37 Prev | Next Part: 195372 *Qty: 4 PAD $28.56
Location: 38 Prev | Next Part: 195373 *Qty: 2 PAD $15.20
Location: 39 Prev | Next Part: 10725914 *Qty: 3 NUT $0.90
Location: 40 Prev | Next Part: 184121 *Qty: 1 ANTI-HEAT SHIELD $218.07

* Quantity shown indicates the number of pieces used in the diagram.
