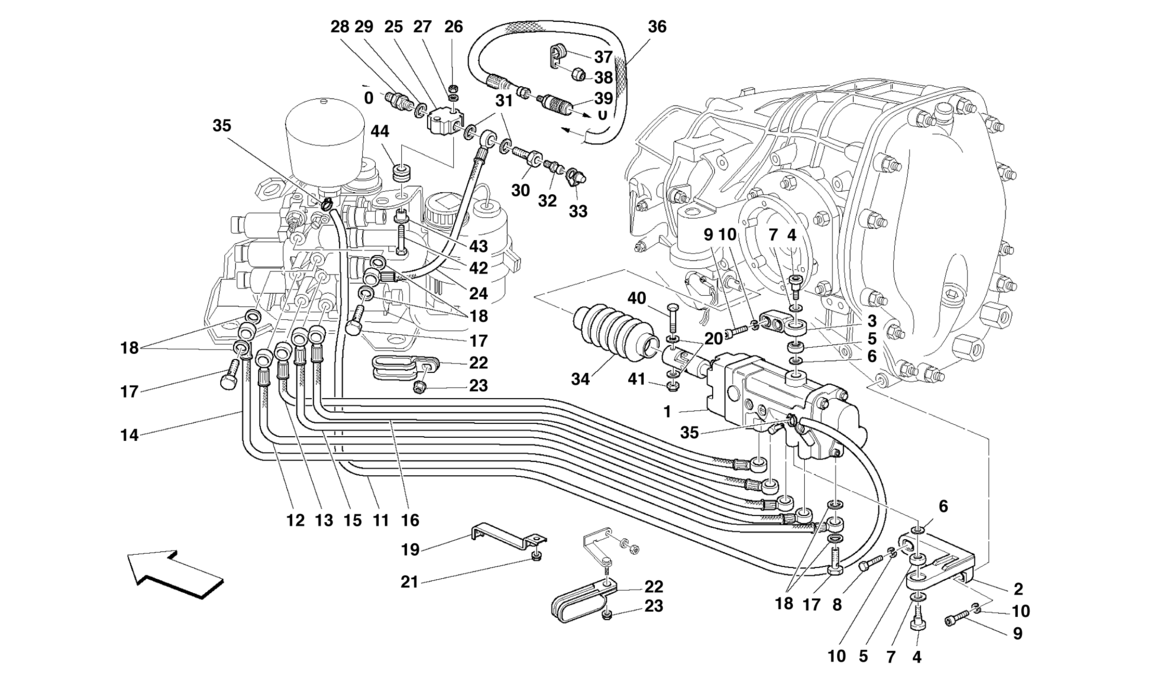

F1 CLUTCH HYDRAULIC CONTROL -Valid for F1

Go to Split View

F1 CLUTCH HYDRAULIC CONTROL -Valid for F1

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 212821 *Qty: 1 F1 CLUTCH HYDRAULIC CONTROL $7,593.18
Location: 1 Prev | Next Part: 179141 *Qty: 1 COMPLETE HYDRAULIC ACTUATOR $26,072.21
Location: 2 Prev | Next Part: 184110 *Qty: 1 LOWER ACTUATOR SUPPORT BRACKET $646.70
Location: 3 Prev | Next Part: 184109 *Qty: 1 UPPER ACTUATOR SUPPORT BRACKET $170.56
Location: 4 Prev | Next Part: 179300 *Qty: 2 PIN $249.21
Location: 5 Prev | Next Part: 169222 *Qty: 2 BALL JOINT Unavailable
Location: 6 Prev | Next Part: 179679 *Qty: 2 WASHER $61.29
Location: 7 Prev | Next Part: 10730314 *Qty: 2 WASHER Superseded
Location: 8 Prev | Next Part: 16043834 *Qty: 1 SCREW Unavailable
Location: 9 Prev | Next Part: 14306524 *Qty: 3 SCREW Unavailable
Location: 10 Prev | Next Part: 10569374 *Qty: 4 WASHER Unavailable
Location: 11 Prev | Next Part: 194027 *Qty: 1 OIL RECYCLE TUBE $50.78
Location: 12 Prev | Next Part: 185087 *Qty: 1 PIPE (EV1) $804.89
Location: 13 Prev | Next Part: 185088 *Qty: 1 PIPE (EV2) $495.84
Location: 14 Prev | Next Part: 185089 *Qty: 1 PIPE (EV3) $520.88
Location: 15 Prev | Next Part: 185090 *Qty: 1 PIPE (EV4) $499.14
Location: 16 Prev | Next Part: 185091 *Qty: 1 PIPE (EV5) $495.06
Location: 17 Prev | Next Part: 171454 *Qty: 5 FILLER $10.69
Location: 17 Prev | Next Part: 204543 *Qty: 6 FILLER $91.62
Location: 17 Prev | Next Part: 204545 *Qty: 3 FILLER $93.45
Location: 18 Prev | Next Part: 10261060 *Qty: 22 GASKET $0.90
Location: 19 Prev | Next Part: 193714 *Qty: 1 PIPES SUPPORTING BRACKET $26.97
Location: 20 Prev | Next Part: 12638524 *Qty: 2 WASHER $0.90
Location: 21 Prev | Next Part: 14058411 *Qty: 1 NUT Superseded
Location: 22 Prev | Next Part: 61712500 *Qty: 2 BRACKET WITH SHEATH $1.92
Location: 23 Prev | Next Part: 14058411 *Qty: 2 NUT Superseded
Location: 24 Prev | Next Part: 185093 *Qty: 1 PIPE FROM VALVE SET TO BLOCK $416.40
Location: 25 Prev | Next Part: 175667 *Qty: 1 BLOCK $37.74
Location: 26 Prev | Next Part: 102741 *Qty: 2 NUT $0.90
Location: 27 Prev | Next Part: 14496424 *Qty: 2 WASHER Superseded
Location: 28 Prev | Next Part: 210468 *Qty: 1 QUICK MALE COUPLING $139.82
Location: 29 Prev | Next Part: 171755 *Qty: 1 WASHER $9.92
Location: 30 Prev | Next Part: 171630 *Qty: 1 FILLER $61.63
Location: 31 Prev | Next Part: 10261060 *Qty: 2 GASKET $0.90
Location: 32 Prev | Next Part: 152954 *Qty: 1 BLEEDER SCREW $6.93
Location: 33 Prev | Next Part: 152955 *Qty: 1 PROTECTION BOOT $6.42
Location: 34 Prev | Next Part: 184119 *Qty: 1 RUBBER BOOT $334.40
Location: 35 Prev | Next Part: 13430770 *Qty: 2 ELASTIC COLLAR Unavailable
Location: 36 Prev | Next Part: 186357 *Qty: 1 CLUTCH HOSE Unavailable
Location: 37 Prev | Next Part: 10441690 *Qty: 1 BRACKET WITH SHEATH $2.41
Location: 38 Prev | Next Part: 14058411 *Qty: 1 NUT Superseded
Location: 39 Prev | Next Part: 210469 *Qty: 1 FEMALE COUPLING $147.06
Location: 40 Prev | Next Part: 170767 *Qty: 1 SCREW $9.18
Location: 41 Prev | Next Part: 101139 *Qty: 1 NUT $0.90
Location: 42 Prev | Next Part: 10903224 *Qty: 2 SCREW Superseded
Location: 43 Prev | Next Part: 149707 *Qty: 2 SPACER FOR CABLE GROMMET $1.26
Location: 44 Prev | Next Part: 177576 *Qty: 2 CABLE GROMMET $2.42

* Quantity shown indicates the number of pieces used in the diagram.
