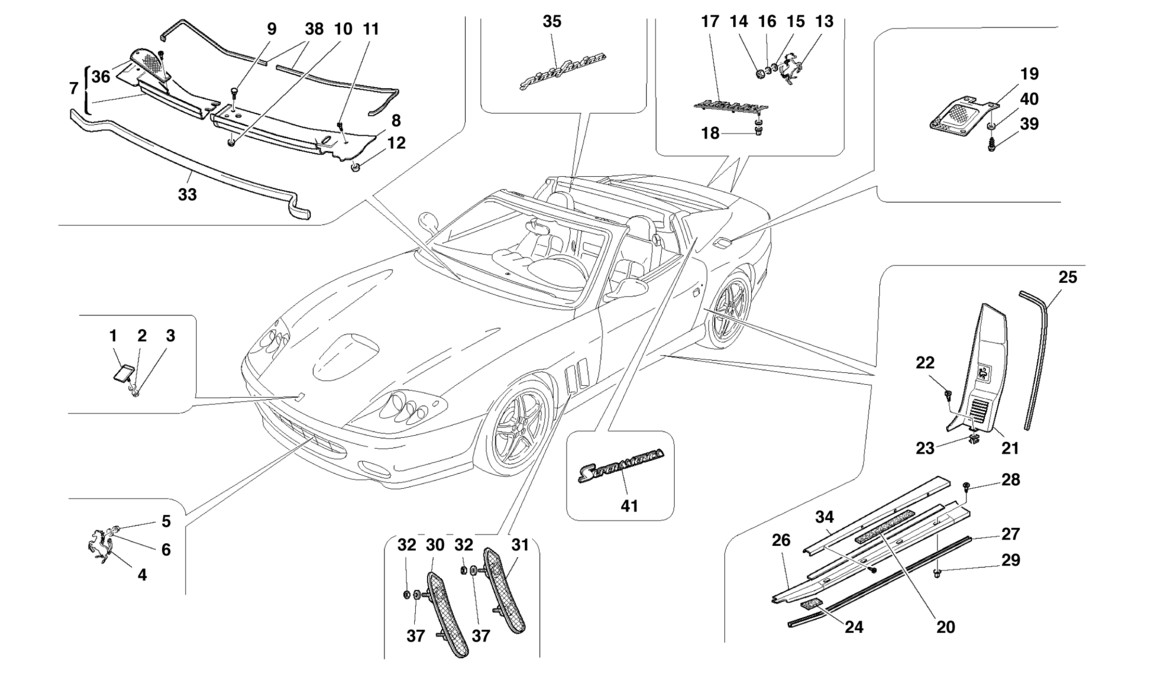

OUTSIDE FINISHINGS

Location Part # Quantity* Description Price Add To Cart
1 62673100 1 FRONT ORNAMENT $239.84
2 12638124 1 WASHER $0.90
3 113647 1 NUT Unavailable
4 67904300 1 CAVALLINO RAMPANTE $72.45
5 16101715 2 NUT Unavailable
6 12600474 2 WASHER $0.90
7 64789200 1 R.H. OUTER MOLDING -Not for RHD- $378.35
7 65241700 1 R.H. OUTER MOLDING -Valid for RHD- $747.02
8 64948500 1 L.H. OUTER MOLDING -Not for RHD- $609.96
8 65241900 1 L.H. OUTER MOLDING -Valid for RHD- $747.02
9 15965814 2 SCREW $10.43
10 159601 2 NUT Superseded
11 62771900 2 SCREW Unavailable
12 62765000 2 NUT SCREW $2.72
13 63233900 1 REAR CAVALLINO $119.04
14 62790300 2 NUT $0.90
15 60995100 2 RUBBER RING $3.80
16 10519224 2 WASHER $0.90
17 63482200 1 FERRARI MARK $93.16
18 60324506 3 CLIP Superseded
19 66081400 1 COMPLETE AIR INTAKE GRILLE $48.70
20 65357500 2 ANTI-VIBRATION GASKET -Not for carbon version- $4.41
21 64557500 1 COVER FOR R.H. DOOR STRIP $61.77
21 64557600 1 COVER FOR L.H. DOOR STRIP Unavailable
22 16083501 2 SCREW Unavailable
23 14211580 2 NUT SCREW $8.51
24 65357600 2 ANTI-VIBRATION GASKET $10.80
25 65182400 1 R.H. GASKET $99.04
25 65182500 1 L.H. GASKET $99.04
26 64552300 1 L.H. KICK PLATE Unavailable
26 65596800 1 L.H. KICK PLATE -Carbon- -Optional- $845.47
26 64552200 1 R.H. KICK PLATE Unavailable
26 65596700 1 R.H. KICK PLATE -Carbon- -Optional- $845.47
26 65599700 2 ALUMINIUM CARPET SHIELD WITH ''FERRARI'' INSCRIPTION -Carbon- -Optional- $224.29
27 64787700 2 GASKET $189.78
28 62564800 8 SCREW $3.19
29 14211580 2 NUT SCREW $8.51
30 64656800 1 R.H. FRONT GRILL Unavailable
30 64656900 1 L.H. FRONT GRILL Unavailable
31 64657000 1 R.H. REAR GRILL $373.50
31 64657100 1 L.H. REAR GRILL $373.50
32 14059111 8 NUT Unavailable
33 64718700 1 RUBBER GASKET $142.89
34 65221700 1 L.H. KICK PLATE INSERT -Not for carbon version- $98.33
34 65221600 1 R.H. KICK PLATE INSERT -Not for carbon version- Unavailable
35 69349100 1 PININFARINA ORNAMENT Unavailable
36 63897800 1 COMPLETE AIR FILTER -Not for RHD- $151.01
36 64241800 1 COMPLETE AIR FILTER -Valid for RHD- $159.13
37 12638177 8 WASHER Superseded
38 62948800 1 GASKET $6.44
39 15689675 4 SCREW $2.42
40 12638177 4 WASHER Superseded
41 69213300 1 SUPERAMERICA ORNAMENT Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
