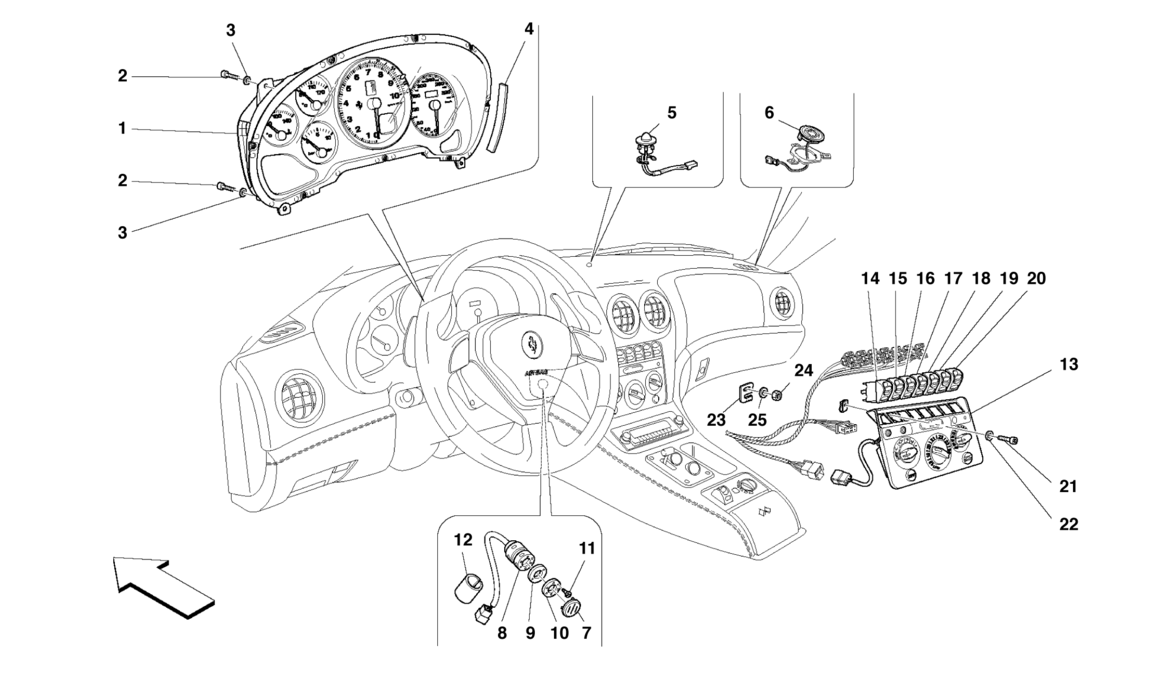

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 215309 *Qty: 1 COMPLETE INSTRUMENT BOARD -Yellow- -Valid for cars with metrical system- -Optional- $6,031.38
Location: 1 Prev | Next Part: 215310 *Qty: 1 COMPLETE INSTRUMENT BOARD -Red- -Valid for cars with metrical system- -Optional- $6,031.38
Location: 1 Prev | Next Part: 215311 *Qty: 1 COMPLETE INSTRUMENT BOARD -Yellow- -Valid for USA- -Not for cars with metrical system- $6,031.38
Location: 1 Prev | Next Part: 215312 *Qty: 1 COMPLETE INSTRUMENT BOARD -Red- -Valid for USA- -Not for cars with metrical system- $6,031.38
Location: 1 Prev | Next Part: 215313 *Qty: 1 COMPLETE INSTRUMENT BOARD -Yellow- -Valid for GB- -Not for cars with metrical system- $6,031.38
Location: 1 Prev | Next Part: 215314 *Qty: 1 COMPLETE INSTRUMENT BOARD -Red- -Valid for GB- -Not for cars with metrical system- Unavailable
Location: 2 Prev | Next Part: 15687270 *Qty: 4 SCREW $0.90
Location: 3 Prev | Next Part: 14496277 *Qty: 4 WASHER $0.90
Location: 4 Prev | Next Part: 67112700 *Qty: 2 FELT $0.90
Location: 5 Prev | Next Part: 64692400 *Qty: 1 SOLAR RADIATION SENSOR $166.40
Location: 6 Prev | Next Part: 184678 *Qty: 2 LOUD SPEAKER TWEETER Unavailable
Location: 6 Prev | Next Part: 184679 *Qty: 2 LOUD SPEAKER TWEETER -Valid for high power HI FI - -Optional- $78.42
Location: 7 Prev | Next Part: 63994500 *Qty: 1 SENSOR COVERING GRILL $7.63
Location: 8 Prev | Next Part: 63934200 *Qty: 1 INNER COMPARTMENT TEMPERATURE SENSOR $104.16
Location: 9 Prev | Next Part: 63994700 *Qty: 1 SENSOR FIXING WASHER $5.51
Location: 10 Prev | Next Part: 63994600 *Qty: 1 SENSOR FIXING WASHER $5.33
Location: 11 Prev | Next Part: 15915977 *Qty: 2 SCREW Unavailable
Location: 12 Prev | Next Part: 179309 *Qty: 1 SPONGE Unavailable
Location: 13 Prev | Next Part: 66280400 *Qty: 1 A.C. CONTROL DASHBOARD -Not for USA and CDN- Unavailable
Location: 13 Prev | Next Part: 66403300 *Qty: 1 A.C. CONTROL DASHBOARD -Valid for USA and CDN- Unavailable
Location: 14 Prev | Next Part: 182899 *Qty: 1 L.H. SWITCH FOR GLASS LIFT $90.31
Location: 15 Prev | Next Part: 180732 *Qty: 1 ASR EXCLUSION CONTROL SWITCH $70.85
Location: 16 Prev | Next Part: 180735 *Qty: 1 SPORT SWITCH Unavailable
Location: 17 Prev | Next Part: 180734 *Qty: 1 SWITCH FOR REAR WINDOW DEFROSTER Unavailable
Location: 18 Prev | Next Part: 180733 *Qty: 1 REAR FOG LIGHT CONTROL SWITCH -Not for USA and CDN- $120.44
Location: 18 Prev | Next Part: 180687 *Qty: 1 DUMMY SWITCH -Valid for USA and CDN- $133.29
Location: 19 Prev | Next Part: 182932 *Qty: 1 SWITCH FOR PARKING LIGHT $70.85
Location: 20 Prev | Next Part: 182898 *Qty: 1 R.H. SWITCH FOR GLASS LIFT $93.02
Location: 21 Prev | Next Part: 62771900 *Qty: 2 SCREW $0.90
Location: 22 Prev | Next Part: 12637824 *Qty: 2 WASHER $0.90
Location: 23 Prev | Next Part: 155751 *Qty: 1 CLIP $4.87
Location: 24 Prev | Next Part: 13046011 *Qty: 1 NUT $0.90
Location: 25 Prev | Next Part: 12637824 *Qty: 1 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
