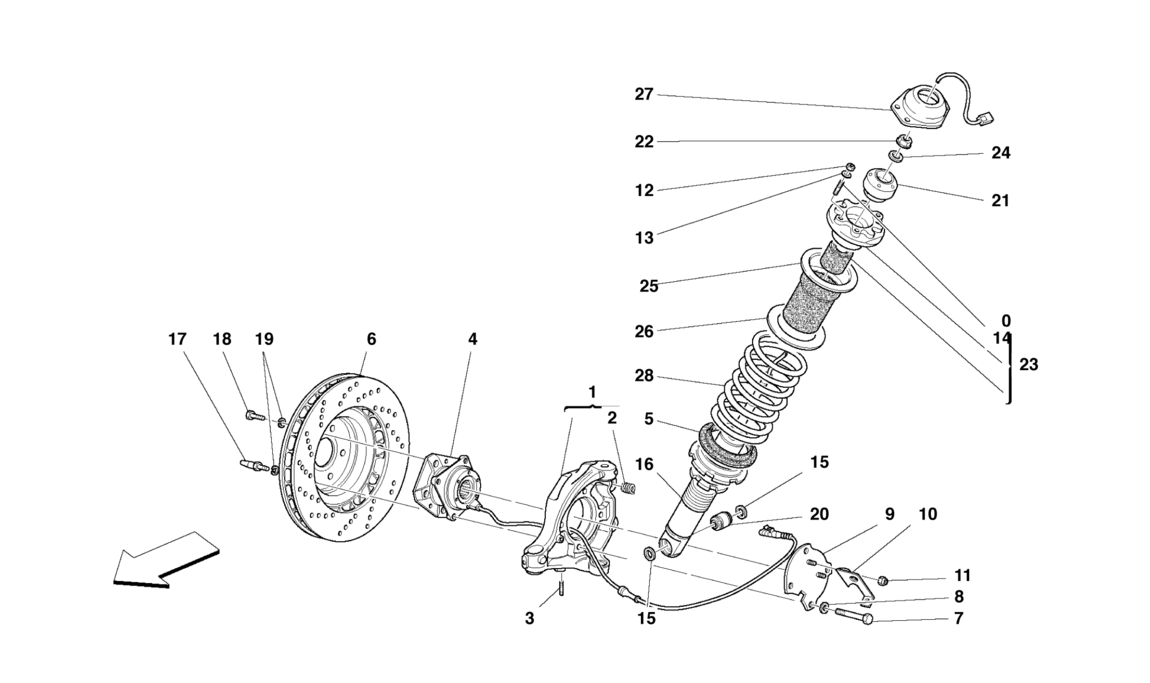

FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

Go to Split View

FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 184626 *Qty: 1 COMPLETE R.H. STEERING KNUCKLE Unavailable
Location: 1 Prev | Next Part: 184627 *Qty: 1 COMPLETE L.H. STEERING KNUCKLE $2,679.77
Location: 1 Prev | Next Part: 184621 *Qty: 1 R.H. STEERING KNUCKLE -Not as spare part- -With complete R.H. steering knuckle 184626- Unavailable
Location: 1 Prev | Next Part: 184622 *Qty: 1 L.H. STEERING KNUCKLE -Not as spare part- -With complete L.H. steering knuckle 184627- Unavailable
Location: 2 Prev | Next Part: 133771 *Qty: 4 THREADED INSERT $4.07
Location: 3 Prev | Next Part: 11000924 *Qty: 4 STUD $1.67
Location: 4 Prev | Next Part: 197271 *Qty: 2 BEARING FOR WHEEL $1,035.42
Location: 5 Prev | Next Part: 152842 *Qty: 2 WASHER $11.98
Location: 6 Prev | Next Part: 191981 *Qty: 2 FRONT BRAKE DISC $389.50
Location: 6 Prev | Next Part: 211525 *Qty: 2 FRONT BRAKE DISC -CCM Version- Unavailable
Location: 7 Prev | Next Part: 16324034 *Qty: 8 SCREW $14.74
Location: 8 Prev | Next Part: 102901 *Qty: 8 WASHER $0.90
Location: 9 Prev | Next Part: 183313 *Qty: 1 R.H. COVER $53.92
Location: 9 Prev | Next Part: 183314 *Qty: 1 L.H. COVER $53.92
Location: 10 Prev | Next Part: 183764 *Qty: 1 R.H. SUPPORT $63.62
Location: 10 Prev | Next Part: 183765 *Qty: 1 L.H. SUPPORT $63.62
Location: 11 Prev | Next Part: 102741 *Qty: 4 NUT $0.90
Location: 12 Prev | Next Part: 104030 *Qty: 8 NUT $0.90
Location: 13 Prev | Next Part: 12638524 *Qty: 8 WASHER $0.90
Location: 14 Prev | Next Part: 12354524 *Qty: 8 STUD $33.02
Location: 15 Prev | Next Part: 153495 *Qty: 4 SPACER WASHER mm. 3.00 Unavailable
Location: 15 Prev | Next Part: 153496 *Qty: 0 SPACER WASHER mm. 2.90 -As an alternative of 153495- Unavailable
Location: 15 Prev | Next Part: 153497 *Qty: 0 SPACER WASHER mm. 3.10 -As an alternative of 153495- Unavailable
Location: 16 Prev | Next Part: 217735 *Qty: 2 FRONT SHOCK ABSORBER $1,713.46
Location: 17 Prev | Next Part: 104370 *Qty: 2 BRAKE DISC FIXING SCREW $0.90
Location: 18 Prev | Next Part: 16043424 *Qty: 2 SCREW $0.90
Location: 19 Prev | Next Part: 127496 *Qty: 4 WASHER $0.90
Location: 20 Prev | Next Part: 157630 *Qty: 2 SHOCK ABSORBER BUSHING $104.05
Location: 21 Prev | Next Part: 204606 *Qty: 2 HYPERBLOCK $211.84
Location: 22 Prev | Next Part: 203795 *Qty: 2 NUT $2.56
Location: 23 Prev | Next Part: 209909 *Qty: 2 COMPLETE FRONT SHOCK ABSORBER SUPPORT $245.78
Location: 24 Prev | Next Part: 10520124 *Qty: 2 WASHER $0.90
Location: 25 Prev | Next Part: 127991 *Qty: 2 COMPLETE SPACER $120.79
Location: 26 Prev | Next Part: 152655 *Qty: 2 WASHER $9.93
Location: 27 Prev | Next Part: 204627 *Qty: 2 PAD FASTENING CUP $17.24
Location: 28 Prev | Next Part: 163648 *Qty: 2 SPRING -Sold in pair- -Not for cars with handling ''Fiorano equipment''- $455.86
Location: 28 Prev | Next Part: 169985 *Qty: 2 SPRING -Sold in pair- -As an alternativa- -Not for cars with handling ''Fiorano equipment''- $642.14
Location: 28 Prev | Next Part: 175886 *Qty: 2 SPRING -Cagnola- -Sold in pair- -Valid for cars with handling ''Fiorano equipment''- -Optional- Unavailable
Location: 28 Prev | Next Part: 208678 *Qty: 2 SPRING -Cosmos- -Sold in pair- -As an alternativa- -Valid for cars with handling ''Fiorano equipment''- -Optional- Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
