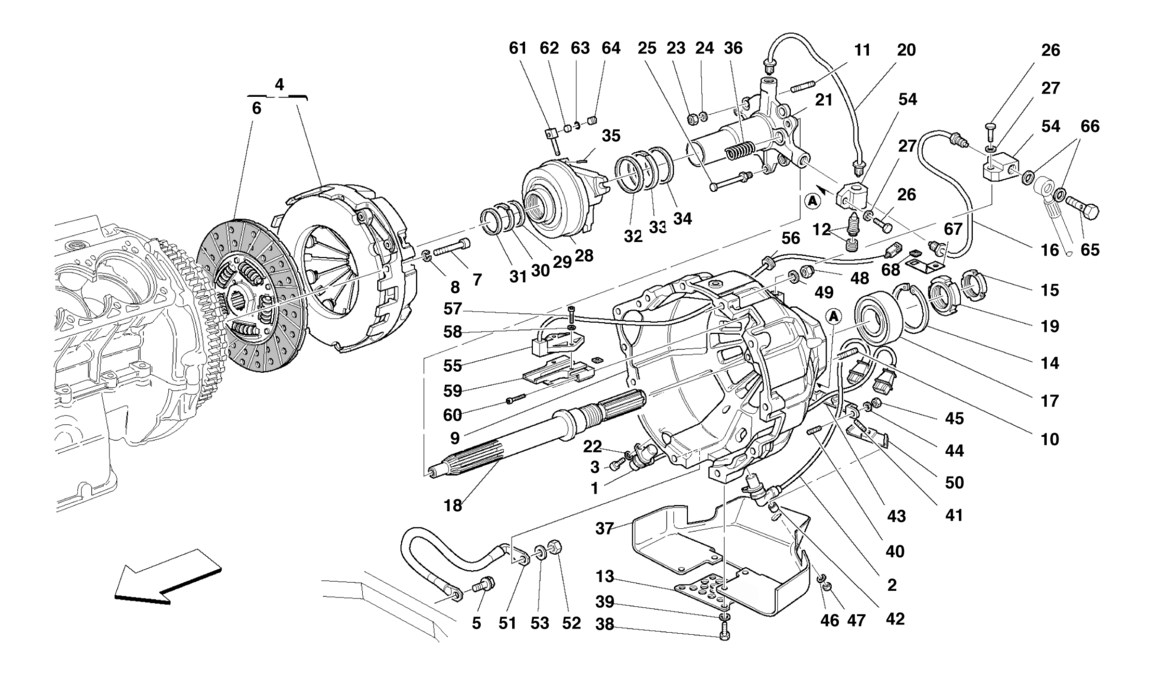

CLUTCH AND CONTROLS -Valid for F1

CLUTCH AND CONTROLS -Valid for F1

Location Part # Quantity* Description Price Add To Cart
1 189548 1 R.H. SIDE ANGOLAR SPEED SENSOR $103.37
2 189540 1 L.H. SIDE ANGOLAR SPEED SENSOR $222.02
3 14305124 2 SCREW $0.90
4 194775 1 COMPLETE CLUTCH $3,051.70
5 16296421 1 SCREW $36.24
6 194776 1 CLUTCH DISC $1,359.33
7 14305974 9 SCREW $0.90
8 127494 9 WASHER $0.90
9 151601 1 COMPLETE CLUTCH HOUSING Unavailable
9 168915 1 CLUTCH HOUSING -With complete clutch housing- Unavailable
10 13546334 8 STUD $1.20
11 13543124 4 STUD Unavailable
12 121699 1 BLEEDER SCREW $55.74
13 144441 1 CLUTCH HOUSING SMALL COVER $3.47
14 144511 1 STOP RING $3.29
15 165576 1 RING NUT $24.50
16 165759 1 OIL DELIVERY TUBE -Not as spare part- -Replaced by 219212- $408.38
16 219212 1 OIL DELIVERY TUBE $69.59
17 145805 1 BEARING Unavailable
18 165573 1 CLUTCH SHAFT $667.59
19 165575 1 RING NUT $24.50
20 165733 1 VENT PIPE -Not as spare part- -Replaced by 219213- Unavailable
21 219213 1 VENT PIPE $62.20
21 170411 1 FLANGE FOR SERVOMECHANISM $754.00
22 12601274 2 WASHER $0.90
23 133989 4 NUT $0.90
24 127496 4 WASHER $0.90
25 166650 3 STUD $42.89
26 10902624 2 SCREW Unavailable
27 11181874 2 WASHER Unavailable
28 CRB575F1-612F1S 1 THRUST BEARING $870.00
29 181838 1 SEAL RING $21.94
30 170416 1 RING $2.82
31 181837 1 SCRAPER RING $23.41
32 181828 1 SEAL RING $27.36
33 154507 1 RING $3.88
34 181836 1 SCRAPER RING $25.72
35 14158570 1 FLEXIBLE PIN $0.90
36 155207 2 PRELOAD SPRING $5.00
37 170115 1 SHIELD FOR FASE SENSOR PROTECTION $472.12
38 10977824 4 SCREW $2.42
39 12601174 4 WASHER $0.90
40 13540824 2 STUD Unavailable
41 155177 1 STUD $10.09
42 155175 1 SPACER $1.99
43 154464 1 SUPPORT $45.59
44 12639724 2 WASHER $0.90
45 102741 2 NUT $0.90
46 11199274 1 WASHER Unavailable
47 15896470 1 NUT Unavailable
48 16100814 5 NUT Unavailable
49 12601374 5 WASHER $0.90
50 146654 1 SUPPORT $86.44
51 155918 1 GROUND CABLE Unavailable
52 15896470 1 NUT Unavailable
53 11199274 1 WASHER Unavailable
54 139471 2 UNION $41.09
55 206075 1 COMPLETE SENSOR KIT Superseded
56 10398480 1 CABLE GROMMET -Not supplied- -Included in 206075- $1.93
57 14303324 2 SCREW Unavailable
58 10519224 2 WASHER $0.90
59 200165 1 SENSOR SUPPORT Superseded
60 14304424 2 SCREW Unavailable
61 166676 1 PIN $42.89
62 165676 1 MAGNET -Not supplied- -Included in 206075- Superseded
63 165658 1 O.R. GASKET $9.62
64 167802 1 PLUG $51.46
65 171454 1 FILLER $63.01
66 10261060 2 GASKET $0.90
67 214436 1 BRACKET FOR CONNECTOR FIXING $4.97
68 187161 1 CLIP $4.97

* Quantity shown indicates the number of pieces used in the diagram.
