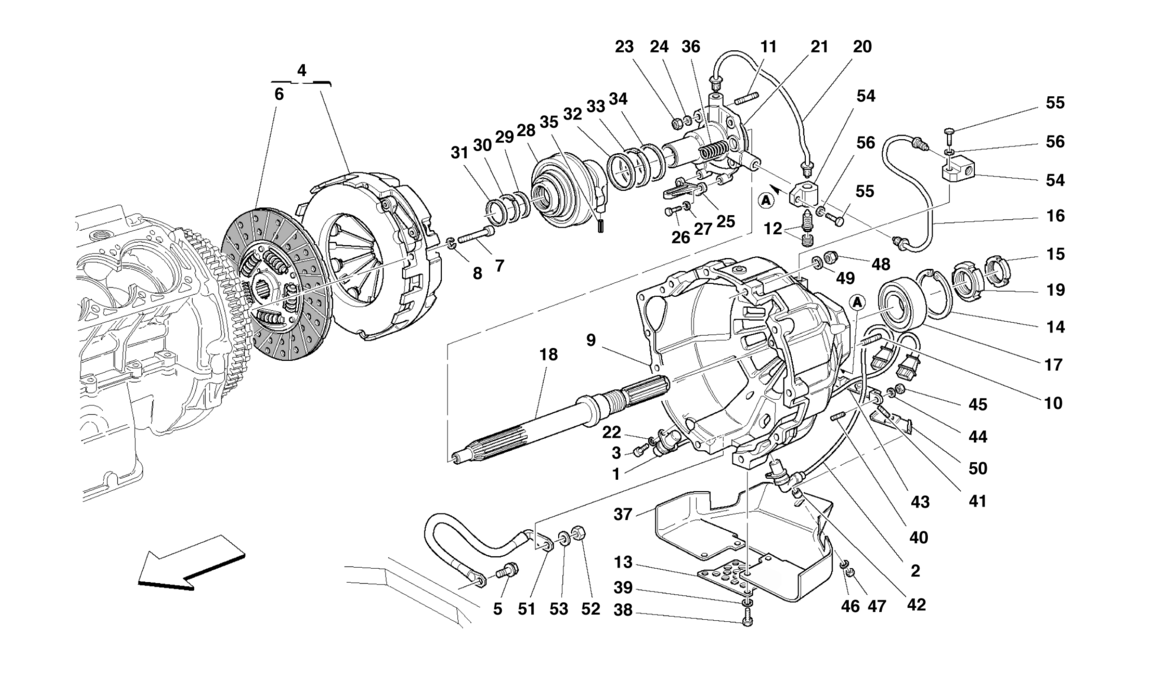

CLUTCH AND CONTROLS -Not for F1

Location Part # Quantity* Description Price Add To Cart
1 189548 1 R.H. SIDE ANGOLAR SPEED SENSOR $115.28
2 189540 1 L.H. SIDE ANGOLAR SPEED SENSOR $259.82
3 14305124 2 SCREW $0.90
4 194775 1 COMPLETE CLUTCH $3,400.64
5 16296421 1 SCREW $36.24
6 194776 1 CLUTCH DISC $1,429.10
7 14305974 9 SCREW $0.90
8 127494 9 WASHER $0.90
9 151601 1 COMPLETE CLUTCH HOUSING Unavailable
9 168915 1 CLUTCH HOUSING -With complete clutch housing- Unavailable
10 13546334 8 STUD $1.20
11 13543124 4 STUD Unavailable
12 121699 1 BLEEDER SCREW $59.36
13 144441 1 CLUTCH HOUSING SMALL COVER $3.84
14 144511 1 STOP RING Unavailable
15 165576 1 RING NUT $24.50
16 165759 1 OIL DELIVERY TUBE -Not as spare part- -Replaced by 219212- $465.86
16 219212 1 OIL DELIVERY TUBE $69.59
17 145805 1 BEARING Unavailable
18 165573 1 CLUTCH SHAFT $759.20
19 165575 1 RING NUT $24.50
20 165733 1 VENT PIPE -Not as spare part- -Replaced by 219213- Unavailable
20 219213 1 VENT PIPE $69.00
21 169137 1 FLANGE WITH SLEEVE $910.00
22 12601274 2 WASHER $0.90
23 133989 4 NUT $0.90
24 127496 4 WASHER $0.90
25 151693 1 PLATE $60.00
26 10977524 2 SCREW $0.90
27 127493 2 WASHER $0.90
28 177201 1 THRUST BEARING $1,276.85
29 154505 1 SEAL RING $14.84
30 154504 1 RING $7.90
31 154550 1 SCRAPER RING $28.91
32 154508 1 SEAL RING $46.57
33 154507 1 RING $4.45
34 154551 1 SCRAPER RING $31.04
35 13904970 1 FLEXIBLE PIN Unavailable
36 155207 2 PRELOAD SPRING $5.00
37 170115 1 SHIELD FOR FASE SENSOR PROTECTION $500.37
38 10977824 4 SCREW $2.72
39 12601174 4 WASHER $0.90
40 13540824 2 STUD Unavailable
41 155177 1 STUD $11.25
42 155175 1 SPACER $2.27
43 154464 1 SUPPORT $51.74
44 12639724 2 WASHER $0.90
45 102741 2 NUT $0.90
46 11199274 1 WASHER Unavailable
47 15896470 1 NUT Unavailable
48 16100814 5 NUT Unavailable
49 12601374 5 WASHER $0.90
50 146654 1 SUPPORT $96.61
51 155918 1 GROUND CABLE Unavailable
52 15896470 1 NUT Unavailable
53 11199274 1 WASHER Unavailable
54 139471 2 UNION $48.29
55 10902624 2 SCREW Unavailable
56 11181874 2 WASHER Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
