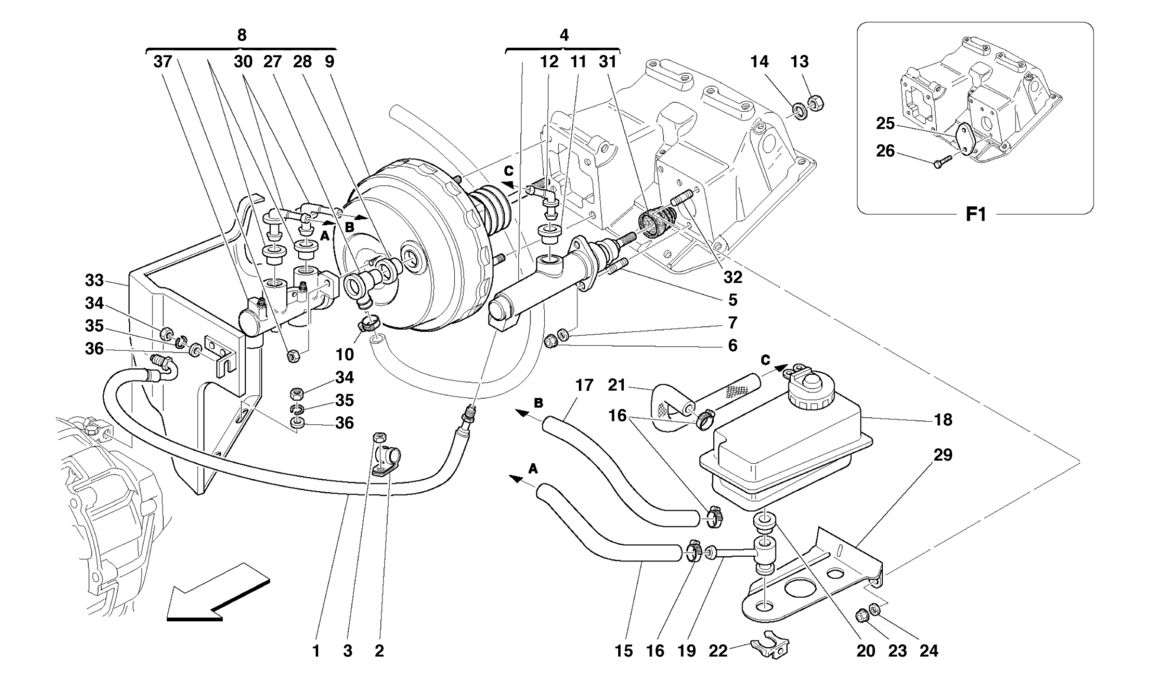

BRAKE AND CLUTCH HYDRAULIC SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 154009 *Qty: 1 CLUTCH CONTROL TUBE -Not for F1- -Not for RHD- $615.66
Location: 1 Prev | Next Part: 156119 *Qty: 1 CLUTCH CONTROL TUBE -Not for F1- -Valid for RHD- $263.17
Location: 2 Prev | Next Part: 10441590 *Qty: 2 BRACKET WITH SHEATH -Not for F1- $0.90
Location: 3 Prev | Next Part: 102948 *Qty: 2 NUT -Not for F1- Superseded
Location: 4 Prev | Next Part: 175211 *Qty: 1 CLUTCH CONTROL PUMP -Not for F1- $300.72
Location: 5 Prev | Next Part: 13516824 *Qty: 2 STUD -Not for F1- -For RHD valid for F1 too- $0.90
Location: 6 Prev | Next Part: 177778 *Qty: 2 NUT -Not for F1- -For RHD valid for F1 too- $1.60
Location: 7 Prev | Next Part: 12601374 *Qty: 2 WASHER -Not for F1- -For RHD valid for F1 too- $0.90
Location: 8 Prev | Next Part: 183081 *Qty: 1 BRAKE BOOSTER WITH PUMP Unavailable
Location: 9 Prev | Next Part: 188572 *Qty: 1 BOOSTER Unavailable
Location: 10 Prev | Next Part: 13000390 *Qty: 1 SCREW COLLAR $0.90
Location: 11 Prev | Next Part: 175189 *Qty: 1 SEAL RING -Not for F1- $21.64
Location: 12 Prev | Next Part: 184497 *Qty: 1 UNION -Not for F1- Unavailable
Location: 13 Prev | Next Part: 101139 *Qty: 4 NUT $0.90
Location: 14 Prev | Next Part: 12601374 *Qty: 4 WASHER $0.90
Location: 15 Prev | Next Part: 105857 *Qty: 1 RUBBER HOSE -Not for RHD- $10.55
Location: 15 Prev | Next Part: 134903 *Qty: 1 RUBBER HOSE -Valid for RHD- $3.84
Location: 16 Prev | Next Part: 13000390 *Qty: 6 SCREW COLLAR -For F1 q.ty 4- $0.90
Location: 17 Prev | Next Part: 123266 *Qty: 1 RUBBER HOSE -Not for RHD- Superseded
Location: 17 Prev | Next Part: 134903 *Qty: 1 RUBBER HOSE -Valid for RHD- $3.84
Location: 18 Prev | Next Part: 173866 *Qty: 1 COMPLETE PAN FOR BRAKE LIQUID Unavailable
Location: 19 Prev | Next Part: 113116 *Qty: 2 UNION Superseded
Location: 20 Prev | Next Part: 106625 *Qty: 2 RUBBER Superseded
Location: 21 Prev | Next Part: 173974 *Qty: 1 RUBBER HOSE -Not for F1- -Not for RHD- $44.62
Location: 21 Prev | Next Part: 173884 *Qty: 1 RUBBER HOSE -Not for F1- -Valid for RHD- $6.61
Location: 22 Prev | Next Part: 110810 *Qty: 2 ELASTIC PLATE Unavailable
Location: 23 Prev | Next Part: 104030 *Qty: 2 NUT $0.90
Location: 24 Prev | Next Part: 12638524 *Qty: 2 WASHER $0.90
Location: 25 Prev | Next Part: 163651 *Qty: 1 FLANGE -Valid for F1- $73.78
Location: 26 Prev | Next Part: 16043021 *Qty: 2 SCREW -Valid for F1- -Not for RHD- $0.90
Location: 26 Prev | Next Part: 13516824 *Qty: 2 STUD -Valid for F1- -Valid for RHD- $0.90
Location: 27 Prev | Next Part: 144552 *Qty: 1 UNION $14.77
Location: 28 Prev | Next Part: 151475 *Qty: 1 CABLE GROMMET $11.42
Location: 29 Prev | Next Part: 183258 *Qty: 1 BRAKE OIL TANK SUPPORT -Not for RHD- $12.87
Location: 29 Prev | Next Part: 188873 *Qty: 1 BRAKE OIL TANK SUPPORT -Valid for RHD- $48.31
Location: 30 Prev | Next Part: 183477 *Qty: 2 UNION $17.13
Location: 31 Prev | Next Part: 175212 *Qty: 1 PROTECTION BOOT -Not for F1- $29.45
Location: 32 Prev | Next Part: 13516824 *Qty: 2 STUD $0.90
Location: 33 Prev | Next Part: 183082 *Qty: 1 BRAKE BOOSTER PROTECTION -Not for RHD- $272.25
Location: 33 Prev | Next Part: 188887 *Qty: 1 BRAKE BOOSTER PROTECTION -Valid for RHD- $303.67
Location: 34 Prev | Next Part: 15896214 *Qty: 3 NUT $0.90
Location: 35 Prev | Next Part: 12643724 *Qty: 3 WASHER Superseded
Location: 36 Prev | Next Part: 127494 *Qty: 3 WASHER $0.90
Location: 37 Prev | Next Part: 171782 *Qty: 1 BRAKE PUMP $712.69

* Quantity shown indicates the number of pieces used in the diagram.
