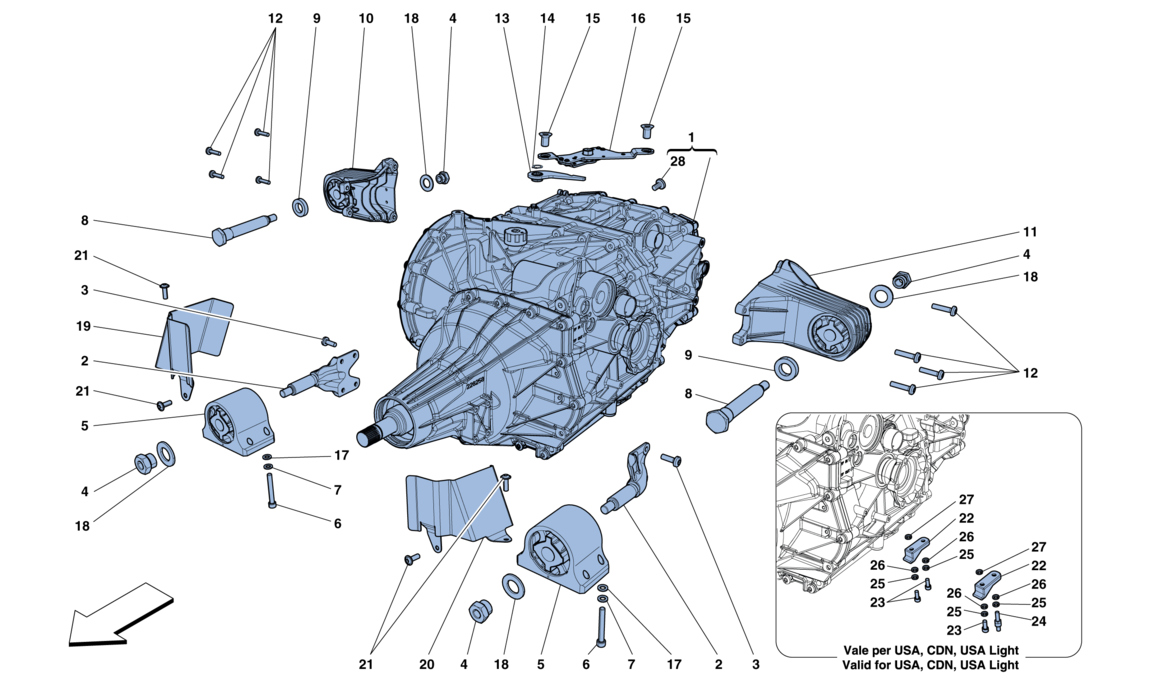

GEARBOX HOUSING

Go to Split View

GEARBOX HOUSING

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 278272 *Qty: 1 COMPL. DCT GEARBOX Call
Location: 2 Prev | Next Part: 235647 *Qty: 2 FRONT STRUT -Applicable until depletion- $211.82
Location: 2 Prev | Next Part: 295438 *Qty: 2 FRONT STRUT -Applicable after depletion of 235647- Call
Location: 3 Prev | Next Part: 247856 *Qty: 8 SCREW -M8 X 1.25 X 25- Call
Location: 4 Prev | Next Part: 287404 *Qty: 4 NUT $14.95
Location: 5 Prev | Next Part: 253004 *Qty: 2 COMPL. BUSHING MOUNTING -No longer supplied- -Replaced by 289318- $298.68
Location: 5 Prev | Next Part: 289318 *Qty: 2 COMPL. BUSHING MOUNTING $363.01
Location: 6 Prev | Next Part: 14308924 *Qty: 8 SCREW -M8 X 60- $4.52
Location: 7 Prev | Next Part: 11198074 *Qty: 8 WASHER $0.90
Location: 8 Prev | Next Part: 243075 *Qty: 2 GEARBOX MOUNTING BUSH PIN $124.12
Location: 9 Prev | Next Part: 243122 *Qty: 2 SHIM $6.62
Location: 10 Prev | Next Part: 266362 *Qty: 1 COMPL. RH REAR STRUT $342.05
Location: 11 Prev | Next Part: 266364 *Qty: 1 COMPL. LH REAR STRUT $350.16
Location: 12 Prev | Next Part: 247857 *Qty: 8 SCREW -M8 X 1.25 X 35- $2.25
Location: 13 Prev | Next Part: 238370 *Qty: 1 COMPLETE RELEASE LEVER $60.34
Location: 14 Prev | Next Part: 11066176 *Qty: 1 SEEGER RING $0.90
Location: 15 Prev | Next Part: 243151 *Qty: 2 SCREW -M12 X 1.25 X 20- $6.52
Location: 16 Prev | Next Part: 252661 *Qty: 1 RELEASE ARM MOUNTING BRACKET -No longer supplied- -Replaced by 310524- Call
Location: 16 Prev | Next Part: 310524 *Qty: 1 RELEASE ARM MOUNTING BRACKET Call
Location: 17 Prev | Next Part: 10519624 *Qty: 8 WASHER $0.90
Location: 18 Prev | Next Part: 287405 *Qty: 4 SHIM $12.32
Location: 19 Prev | Next Part: 282341 *Qty: 1 RH FRONT MOUNT HEAT SHIELD Call
Location: 20 Prev | Next Part: 282339 *Qty: 1 LH FRONT MOUNT HEAT SHIELD Call
Location: 21 Prev | Next Part: 65377400 *Qty: 4 SCREW -M6 X 1 X 18- Superseded
Location: 22 Prev | Next Part: 248689 *Qty: 2 RETENTION BRACKET -Applicable for USA, CDN, USA LIGHT- $57.20
Location: 23 Prev | Next Part: 14306474 *Qty: 3 SCREW -Applicable for USA, CDN, USA LIGHT- $0.90
Location: 24 Prev | Next Part: 266645 *Qty: 1 STUD BOLT -Applicable for USA, CDN, USA LIGHT- $16.20
Location: 25 Prev | Next Part: 12638524 *Qty: 4 WASHER -Applicable for USA, CDN, USA LIGHT- $0.90
Location: 26 Prev | Next Part: 12601374 *Qty: 4 WASHER -Applicable for USA, CDN, USA LIGHT- $0.90
Location: 27 Prev | Next Part: 10730514 *Qty: 2 WASHER -Applicable for USA, CDN, USA LIGHT- $0.90
Location: 28 Prev | Next Part: 263679 *Qty: 1 FUEL LEVEL PLUG $54.25

* Quantity shown indicates the number of pieces used in the diagram.
