SCREENS, WINDOWS AND SEALS

Go to Split View

SCREENS, WINDOWS AND SEALS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 84285700 *Qty: 1 WINDSCREEN $2,705.94
Location: 1 Prev | Next Part: 85062300 *Qty: 1 WINDSCREEN -Heat insulating windscreen- $4,116.21
Location: 2 Prev | Next Part: 83363700 *Qty: 2 SPACER BLOCK -Not for RHD- $0.90
Location: 3 Prev | Next Part: 84715100 *Qty: 1 COMPL. REAR VIEW MIRROR -Electrochromic- -Applicable up to Ass. No. 113730- -Applicable until depletion- $487.91
Location: 3 Prev | Next Part: 85378500 *Qty: 1 COMPL. REAR VIEW MIRROR -Electrochromic- -Applicable from Ass. No. 113731- -Applicable after depletion of 84715100- Call
Location: 3 Prev | Next Part: 85392100 *Qty: 1 COMPL. REAR VIEW MIRROR -Electrochromic- -Homelink- -Applicable for USA, CDN, USA LIGHT- $2,328.80
Location: 3 Prev | Next Part: 84715200 *Qty: 1 COMPL. REAR VIEW MIRROR -Prismatic- Call
Location: 3 Prev | Next Part: 85602400 *Qty: 1 COMPL. REAR VIEW MIRROR -Electrochromic- -Version with track cameras- Call
Location: 3 Prev | Next Part: 85602700 *Qty: 1 COMPL. REAR VIEW MIRROR -Electrochromic- -Homelink- -Version with track cameras- -Applicable for USA, CDN, USA LIGHT- Call
Location: 4 Prev | Next Part: 84265000 *Qty: 1 RH REAR WINDOW Call
Location: 4 Prev | Next Part: 84706400 *Qty: 1 RH REAR WINDOW -Version with Privacy Glass- Call
Location: 5 Prev | Next Part: 84265100 *Qty: 1 LH REAR WINDOW Call
Location: 5 Prev | Next Part: 84706500 *Qty: 1 LH REAR WINDOW -Version with Privacy Glass- Call
Location: 6 Prev | Next Part: 84265200 *Qty: 1 REAR SCREEN $1,518.38
Location: 6 Prev | Next Part: 84706600 *Qty: 1 REAR SCREEN -Version with Privacy Glass- $3,009.26
Location: 7 Prev | Next Part: 83370000 *Qty: 1 RH DOOR PERIMETER SEAL $624.75
Location: 7 Prev | Next Part: 83370100 *Qty: 1 LH DOOR PERIMETER SEAL $624.75
Location: 8 Prev | Next Part: 84281500 *Qty: 1 RH DOOR WINDOW $342.73
Location: 9 Prev | Next Part: 84281600 *Qty: 1 LH DOOR WINDOW $342.73
Location: 10 Prev | Next Part: 84776300 *Qty: 1 RH CURVED WINDOW -Electrochromic- -Not for USA, CDN, GOLFO, USA LIGHT- Call
Location: 10 Prev | Next Part: 85158600 *Qty: 1 RH CURVED GLASS -Electrochromic- -Applicable for GOLFO- Call
Location: 10 Prev | Next Part: 85089000 *Qty: 1 RH CURVED GLASS -Electrochromic- -Applicable for USA, CDN, USA LIGHT- $814.01
Location: 10 Prev | Next Part: 84776400 *Qty: 1 RH CURVED WINDOW -Not for GOLFO- Call
Location: 10 Prev | Next Part: 85158700 *Qty: 1 RH CURVED GLASS -Applicable for GOLFO- Call
Location: 10 Prev | Next Part: 84776500 *Qty: 1 LH CURVED WINDOW -Electrochromic- -Not for USA, CDN, GOLFO, USA LIGHT- Call
Location: 10 Prev | Next Part: 85089200 *Qty: 1 LH CURVED GLASS -Electrochromic- -Applicable for USA, CDN, GOLFO, USA LIGHT- $607.65
Location: 10 Prev | Next Part: 84776600 *Qty: 1 LH CURVED WINDOW -Not for GOLFO- Call
Location: 10 Prev | Next Part: 85089300 *Qty: 1 LH CURVED GLASS -Applicable for GOLFO- Call
Location: 11 Prev | Next Part: 63343400 *Qty: 2 SCREW -M4 X 15- $2.89
Location: 12 Prev | Next Part: 85088200 *Qty: 1 RH DOOR JAMB SHIELD -After depletion, order door jamb complete with rivets- -Applicable until depletion- Call
Location: 12 Prev | Next Part: 85148400 *Qty: 1 RH DOOR JAMB SHIELD -Applicable after depletion of 85088200- Call
Location: 12 Prev | Next Part: 85088300 *Qty: 1 LH DOOR JAMB SHIELD -After depletion, order door jamb complete with rivets- -Applicable until depletion- Call
Location: 12 Prev | Next Part: 85148500 *Qty: 1 LH DOOR JAMB SHIELD -Applicable after depletion of 85088300- Call
Location: 13 Prev | Next Part: 60684944 *Qty: 1 RAIN AND TWILIGHT SENSOR ECU $131.92

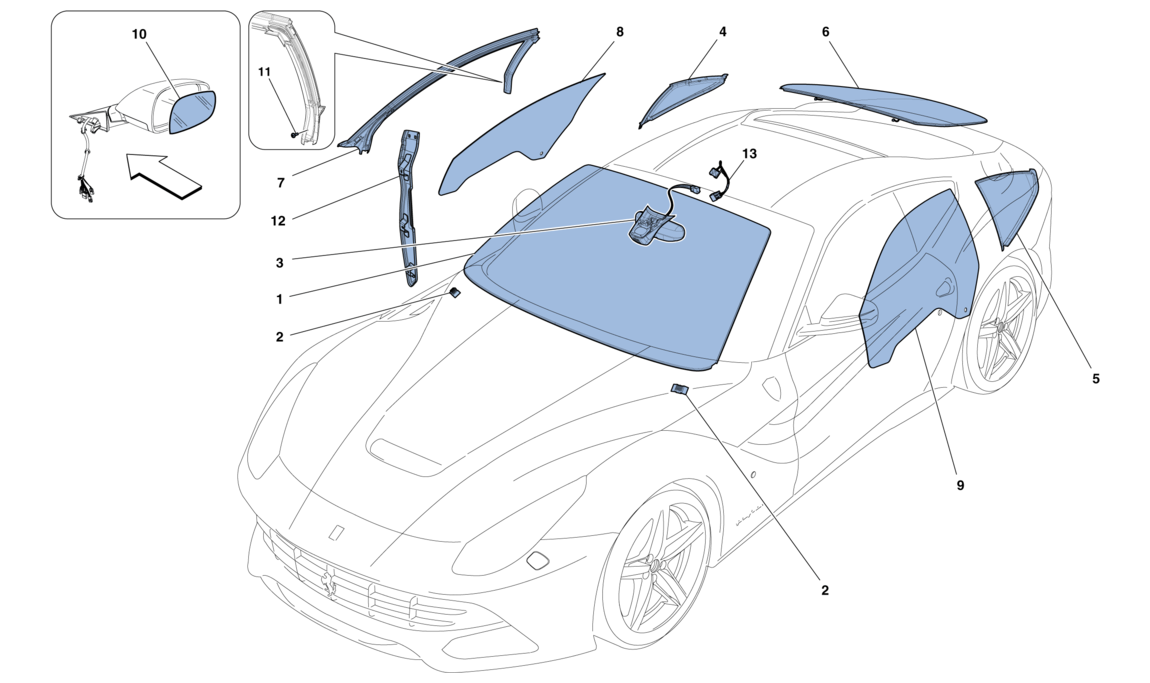

* Quantity shown indicates the number of pieces used in the diagram.
