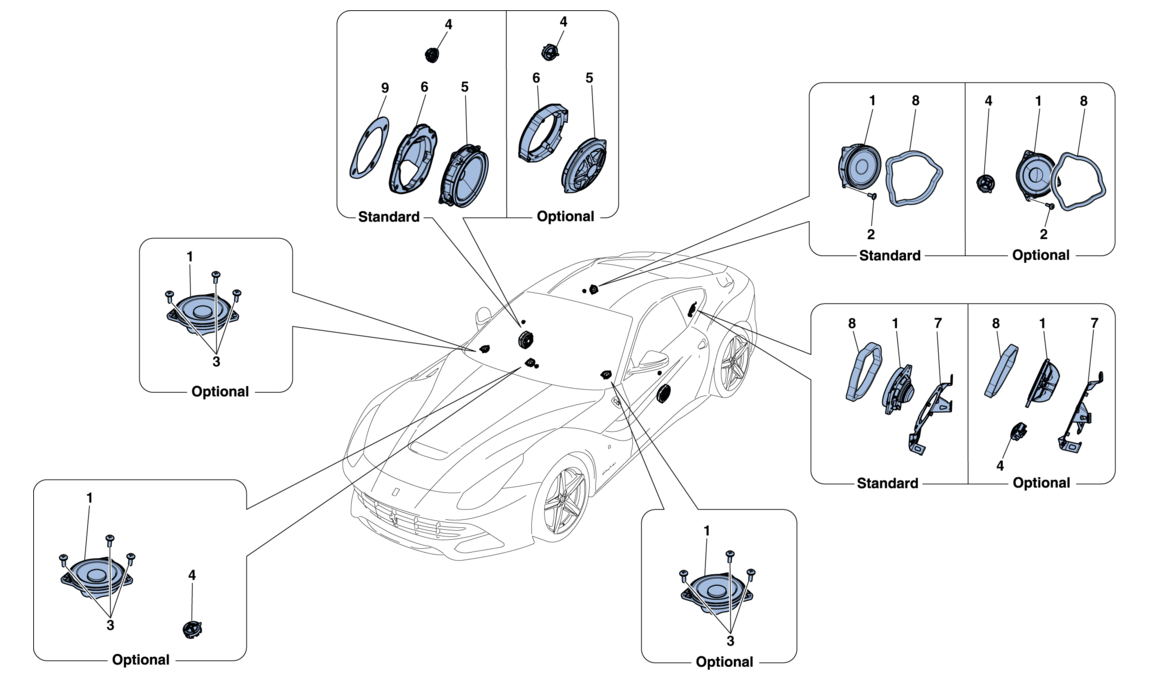

AUDIO SPEAKER SYSTEM

Go to Split View

AUDIO SPEAKER SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 269772 *Qty: 2 TWIDDLER Call
Location: 1 Prev | Next Part: 253861 *Qty: 5 TWIDDLER -Premium Hi-Fi version- $252.39
Location: 2 Prev | Next Part: 63343400 *Qty: 8 SCREW -M4 X 15- -Q.ty 6 for Hi-Fi version- $2.89
Location: 3 Prev | Next Part: 68176200 *Qty: 9 SCREW -M5 X 10- -Premium Hi-Fi version- $1.13
Location: 4 Prev | Next Part: 251541 *Qty: 2 TWEETER $33.73
Location: 4 Prev | Next Part: 258166 *Qty: 5 TWEETER -Premium Hi-Fi version- $130.54
Location: 5 Prev | Next Part: 252908 *Qty: 2 WOOFER $56.16
Location: 5 Prev | Next Part: 254984 *Qty: 2 WOOFER -Premium Hi-Fi version- $302.20
Location: 6 Prev | Next Part: 266133 *Qty: 2 WOOFER BRACKET WITH SPACER $25.43
Location: 6 Prev | Next Part: 260131 *Qty: 1 RH WOOFER ADAPTER -Premium Hi-Fi version- $24.90
Location: 6 Prev | Next Part: 260130 *Qty: 1 LH WOOFER ADAPTER -Premium Hi-Fi version- $24.90
Location: 7 Prev | Next Part: 286297 *Qty: 1 LH TWIDDLER BRACKET Call
Location: 7 Prev | Next Part: 286301 *Qty: 1 LH TWIDDLER BRACKET -Premium Hi-Fi version- Call
Location: 7 Prev | Next Part: 286295 *Qty: 1 RH TWIDDLER BRACKET Call
Location: 7 Prev | Next Part: 286299 *Qty: 1 RH TWIDDLER BRACKET -Premium Hi-Fi version- Call
Location: 8 Prev | Next Part: 85276800 *Qty: 2 GRILLE GASKET Call
Location: 9 Prev | Next Part: 85221100 *Qty: 2 GASKET -Not for Hi-Fi premium version- Call

* Quantity shown indicates the number of pieces used in the diagram.
