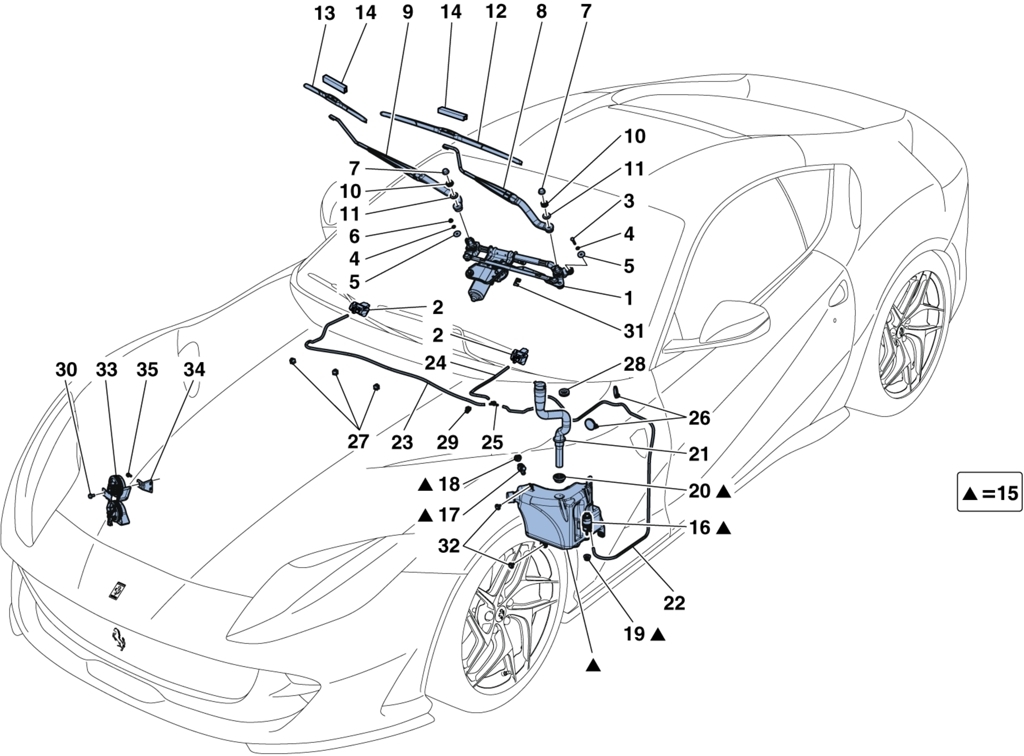

WINDSCREEN WIPER – WASHER – HORNS

Go to Split View

WINDSCREEN WIPER – WASHER – HORNS

Location Part # Quantity* Description Price Add To Cart
1 85033900 1 WINDSCREEN WIPER WITH MOTOR AND LINKAGES -APPLICABLE FOR GD- Unavailable
1 83736600 1 WINDSCREEN WIPER WITH MOTOR AND LINKAGES -NOT FOR GD- $942.14
2 84019400 2 WINDSCREEN /HEADLIGHT WASHER SPRAY NOZZLE $5.26
3 10902824 2 SCREW Unavailable
4 12601274 3 WASHER $0.90
5 12640624 3 WASHER $0.90
6 85554200 1 NUT Unavailable
7 15811787 2 PROTECTIVE CAP $1.02
8 85033700 1 DRIVER SIDE WINDSCREEN WIPER ARM -APPLICABLE FOR GD- Unavailable
8 83736800 1 DRIVER SIDE WINDSCREEN WIPER ARM -NOT FOR GD- Unavailable
9 85033800 1 PASSENGER SIDE WINDSCREEN WIPER ARM -APPLICABLE FOR GD- Unavailable
9 83736700 1 PASSENGER SIDE WINDSCREEN WIPER ARM -NOT FOR GD- Unavailable
10 10791021 2 NUT -NO LONGER SUPPLIED- -REPLACED BY 10791011- Unavailable
11 12601474 2 WASHER Unavailable
12 82196700 1 DRIVER SIDE WINDSCREEN WIPER BLADE -NOT FOR GD- $131.87
12 83994600 1 PASSENGER SIDE WINDSCREEN WIPER BLADE -APPLICABLE FOR GD- $89.06
13 83994700 1 DRIVER SIDE WINDSCREEN WIPER BLADE -APPLICABLE FOR GD- $158.38
13 82196500 1 PASSENGER SIDE WINDSCREEN WIPER BLADE -NOT FOR GD- $88.89
14 65328600 2 GUARD FOR WIPER BLADES -NO LONGER SUPPLIED- Unavailable
15 88301600 1 COMPL. WINDSCREEN/HEADLIGHT WASHER FLUID RESERVOIR $298.68
16 81632900 1 WINDSCREEN WASHER PUMP $140.27
17 81633100 1 FLUID LEVEL SENSOR $148.78
18 81633200 1 LEVEL SENSOR SEAL $29.39
19 65775100 1 WINDSCREEN WASHER PUMP SEAL $6.72
20 82198600 1 FILLER PIPE SEAL Unavailable
21 89037300 1 COMPL. WINDSCREEN/HEADLIGHT WASHER FLUID RESERVOIR FILLING PIPE. $69.90
22 84491600 1 PIPE FROM ELECTRIC PUMP TO CHECK VALVE Unavailable
23 84491700 1 PIPE FROM VALVE TO RH NOZZLE Unavailable
24 84491800 1 PIPE FROM VALVE TO LH NOZZLE Unavailable
25 82984600 1 NONRETURN VALVE $6.74
26 217854 3 CLIP Unavailable
27 14501087 5 CLIP Unavailable
28 10396780 1 INSULATING RING $4.81
29 81097300 1 ROUTING CLIP Unavailable
30 16287024 1 SCREW -M8 X 16- -APPLICABLE UP TO ASS. NO. 108035- Unavailable
31 289644 1 CLIP Unavailable
32 81290900 3 SCREW -M6 X 20- Unavailable
33 340072 1 HORN -NOT FOR USA- CDN- USA LIGHT- Unavailable
33 785918 1 HORN -APPLICABLE FOR USA- CDN- USA LIGHT- $155.53
34 336474 1 HORN FASTENER BRACKET $31.77
35 16296924 2 SCREW -M6 X 14- Unavailable
36 262559 1 CLIP Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
