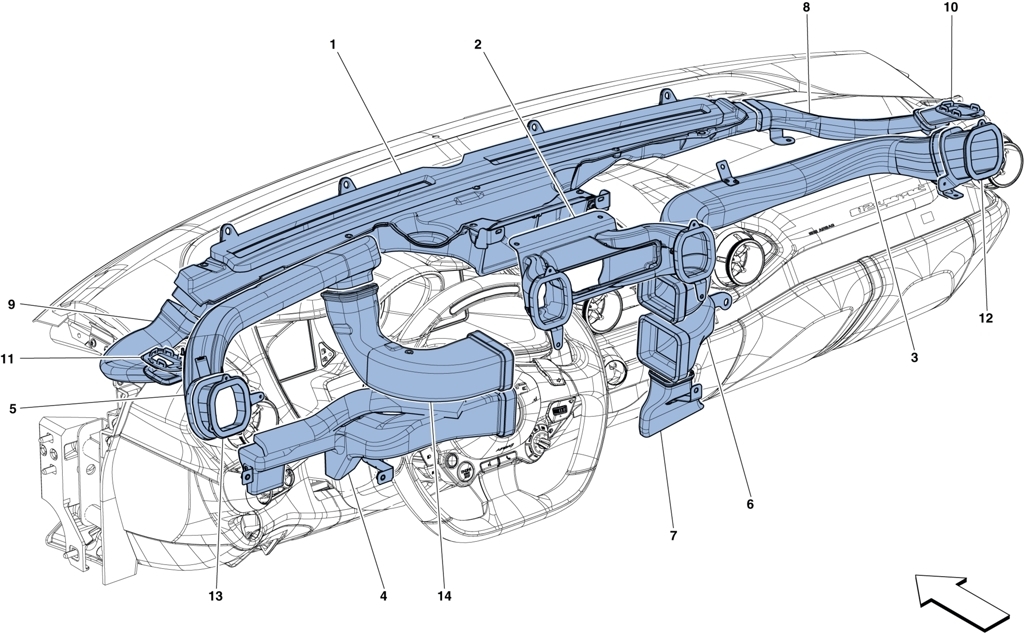

DASHBOARD AIR DIFFUSION

Location Part # Quantity* Description Price Add To Cart
1 88364300 1 DEFROSTER DUCT -NOT FOR GD- $510.68
1 88364700 1 DEFROSTER DUCT -APPLICABLE FOR GD- $548.07
2 88604200 1 CENTRE DUCT -APPLICABLE FOR GD- $292.33
2 87896500 1 CENTRE DUCT -NOT FOR GD- $88.97
3 87890900 1 RH LATERAL AC VENT DUCT -NOT FOR GD- $127.10
3 88600300 1 RH LATERAL AC VENT DUCT -APPLICABLE FOR GD- $139.82
4 87891900 1 DRIVER SIDE FOOTWELL AIR DUCT -NOT FOR GD- $158.88
4 88599200 1 DRIVER SIDE FOOTWELL AIR DUCT -APPLICABLE FOR GD- $174.78
5 88598800 1 LH LATERAL AC VENT DUCT -APPLICABLE FOR GD- $146.81
5 87890800 1 LH LATERAL AC VENT DUCT -NOT FOR GD- $133.47
6 84088300 1 PASSENGER SIDE UPPER FOOTWELL AIR DUCT -NOT FOR GD- Unavailable
6 89131100 1 PASSENGER SIDE UPPER FOOTWELL AIR DUCT -APPLICABLE FOR GD- $85.15
7 88600800 1 PASSENGER SIDE LOWER FOOTWELL AIR DUCT -APPLICABLE FOR GD- $67.36
7 88390600 1 PASSENGER SIDE LOWER FOOTWELL AIR DUCT -NOT FOR GD- $49.83
8 88517900 1 RH DEMISTER AIR DUCT -NOT FOR GD- $114.38
8 88601600 1 RH DEMISTER AIR DUCT -APPLICABLE FOR GD- $177.93
9 88601100 1 LH DEMISTER AIR DUCT -APPLICABLE FOR GD- $190.65
9 88518000 1 LH DEMISTER AIR DUCT -NOT FOR GD- $101.68
10 88518300 1 RH DEMISTER SURROUND CONNECTOR $7.63
11 88518200 1 LH DEMISTER SURROUND CONNECTOR $7.63
12 88518700 1 RH LATERAL VENT CONNECTOR -NOT FOR GD- $19.07
12 88670800 1 RH LATERAL VENT CONNECTOR -APPLICABLE FOR GD- $20.98
13 88671000 1 LH LATERAL VENT CONNECTOR -APPLICABLE FOR GD- $20.98
13 88285500 1 LH LATERAL VENT CONNECTOR -NOT FOR GD- $19.07
14 88602100 1 COMPL. RH HVAC-VENTILATION SYSTEM CONNECTOR -APPLICABLE FOR GD- $111.85
14 87893300 1 COMPL. LH HVAC-VENTILATION SYSTEM CONNECTOR -NOT FOR GD- $101.68

* Quantity shown indicates the number of pieces used in the diagram.
