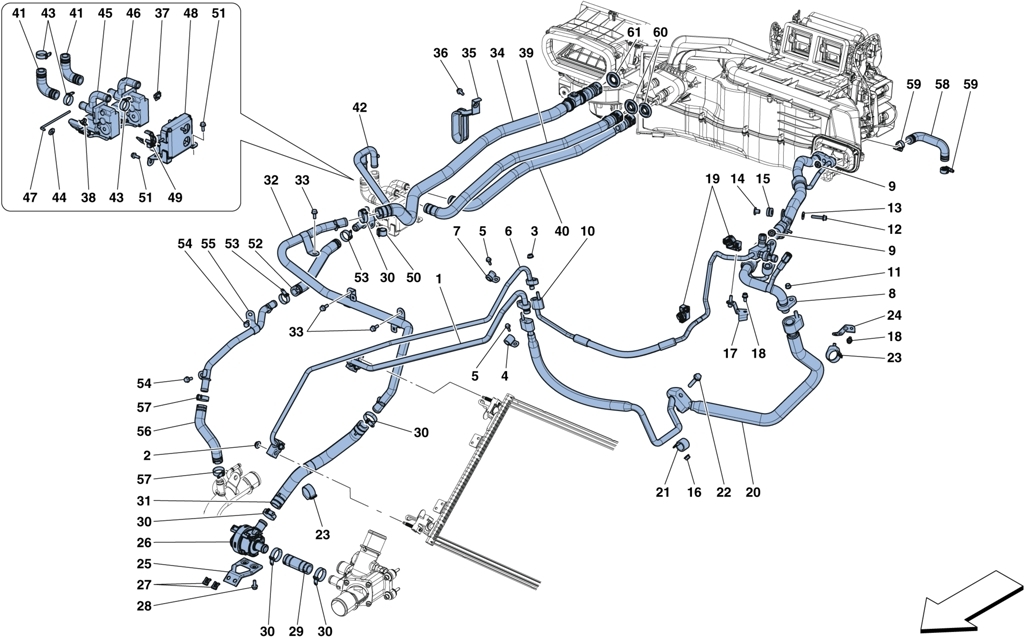

AIR CONDITIONING WATER AND FREON

Location Part # Quantity* Description Price Add To Cart
1 328417 1 PIPE FROM DISCONNECTOR UNION TO CONDENSER $207.04
2 14066021 2 NUT -APPLICABLE AFTER DEPLETION OF 14066017- $4.10
2 14066021 2 NUT -APPLICABLE UNTIL DEPLETION- $4.10
3 14040614 2 NUT Unavailable
4 10441390 1 BRACKET Unavailable
5 16285127 2 SCREW Superseded
6 328420 1 PIPE FROM CONDENSER TO DISCONNECTOR UNION $157.61
7 10441290 1 BRACKET WITH SHEATH Unavailable
8 331901 1 COMPL. IHX GAS PIPE $688.89
9 14066021 2 NUT $4.10
10 333909 1 GAS PIPE FROM DISCONNECTOR UNION TO IHX $517.63
11 177778 1 NUT $1.97
12 231621 2 SCREW -M6 X 30- Unavailable
13 12643724 2 WASHER Superseded
14 149707 2 SPACER $1.50
15 103549 2 CABLE GROMMET $1.81
16 14040611 1 NUT $0.90
17 329371 1 AC PIPE TO LH DIAGONAL BRACE MOUNTING BRACKET. $27.97
18 231616 2 SCREW -M6 X 14- Unavailable
19 298580 2 CLIP $4.13
20 336702 1 GAS PIPE FROM IHX TO COMPRESSOR $577.66
21 10441790 1 BRACKET WITH SHEATH $0.95
22 16044024 1 SCREW -M8 X 40- $0.90
23 225821 2 CLIP $3.44
24 765072 1 AC PIPE TO COMPRESSOR MOUNTING BRACKET $13.98
25 326221 1 IDLE SPEED PUMP MOUNTING BRACKET $34.49
26 291349 1 IDLE WATER RECIRCULATION PUMP $3,807.70
27 82268600 2 CLIP $2.38
28 16286024 2 SCREW Unavailable
29 260083 1 SLEEVE $46.57
30 262111 5 COLLAR -APPLICABLE AFTER DEPLETION OF 10860370- $2.11
31 337857 1 SLEEVE $39.91
32 337154 1 RIGID PIPE FROM PUMP TO AC SYSTEM $327.15
33 16286024 3 SCREW -M6 X 16- Unavailable
34 329120 1 COMPL. PIPE FROM RECIRCULATION PUMP TO AC UNIT $141.08
35 341287 1 TGK PIPE MOUNTING BRACKET $31.77
36 16286024 1 SCREW -M6 X 16- Unavailable
37 252473 1 FASTENER CLIP $2.03
38 253769 1 CLIP Unavailable
39 329122 1 COMPL. PIPE FROM HEATER TO FRONT TGK VALVE $101.17
40 329123 1 COMPL. PIPE FROM HEATER TO REAR TGK VALVE $102.94
41 292306 2 TGK VALVE OUTLET UNION $44.84
42 341613 1 RIGID TGK VALVE OUTLET PIPE $167.79
43 262109 6 COLLAR -APPLICABLE AFTER DEPLETION OF 13 $1.40
44 64215300 1 TIE ROD RETAINING CLIP $0.90
45 67635900 1 RH CYLINDER BANK TGK VALVE $241.55
46 67444900 1 LH CYLINDER BANK TGK VALVE $258.80
47 67933600 1 TGK VALVE FASTENER ROD $1.91
48 339274 1 COMPL. TGK VALVE BRACKET -NOT FOR GD- $114.38
48 772140 1 COMPL. TGK VALVE BRACKET -APPLICABLE FOR GD- $279.63
49 204777 1 CLIP Unavailable
50 206536 1 CLIP Unavailable
51 16286024 4 SCREW -M6 X 16- Unavailable
52 321365 1 TGK VALVE OUTLET UNION $40.05
53 262109 2 COLLAR -APPLICABLE AFTER DEPLETION OF 10860270- $1.40
54 16286024 2 SCREW -M6 X 16- Unavailable
55 337391 1 RIGID PIPE $223.06
56 337858 1 SLEEVE $29.23
57 262109 2 COLLAR -NOT FOR GD- -APPLICABLE UNTIL DEPLETION- $1.40
58 84536000 1 HVAC SIDE DUCT DRAIN HOSE CONNECTOR Unavailable
59 161490 2 SCREW COLLAR $2.72
60 81895900 2 GASKET $10.86
61 81970900 1 AC WATER PIPE SEAL $11.23
62 11342784 1 GASKET $14.43
63 11342584 1 GASKET $14.43

* Quantity shown indicates the number of pieces used in the diagram.
