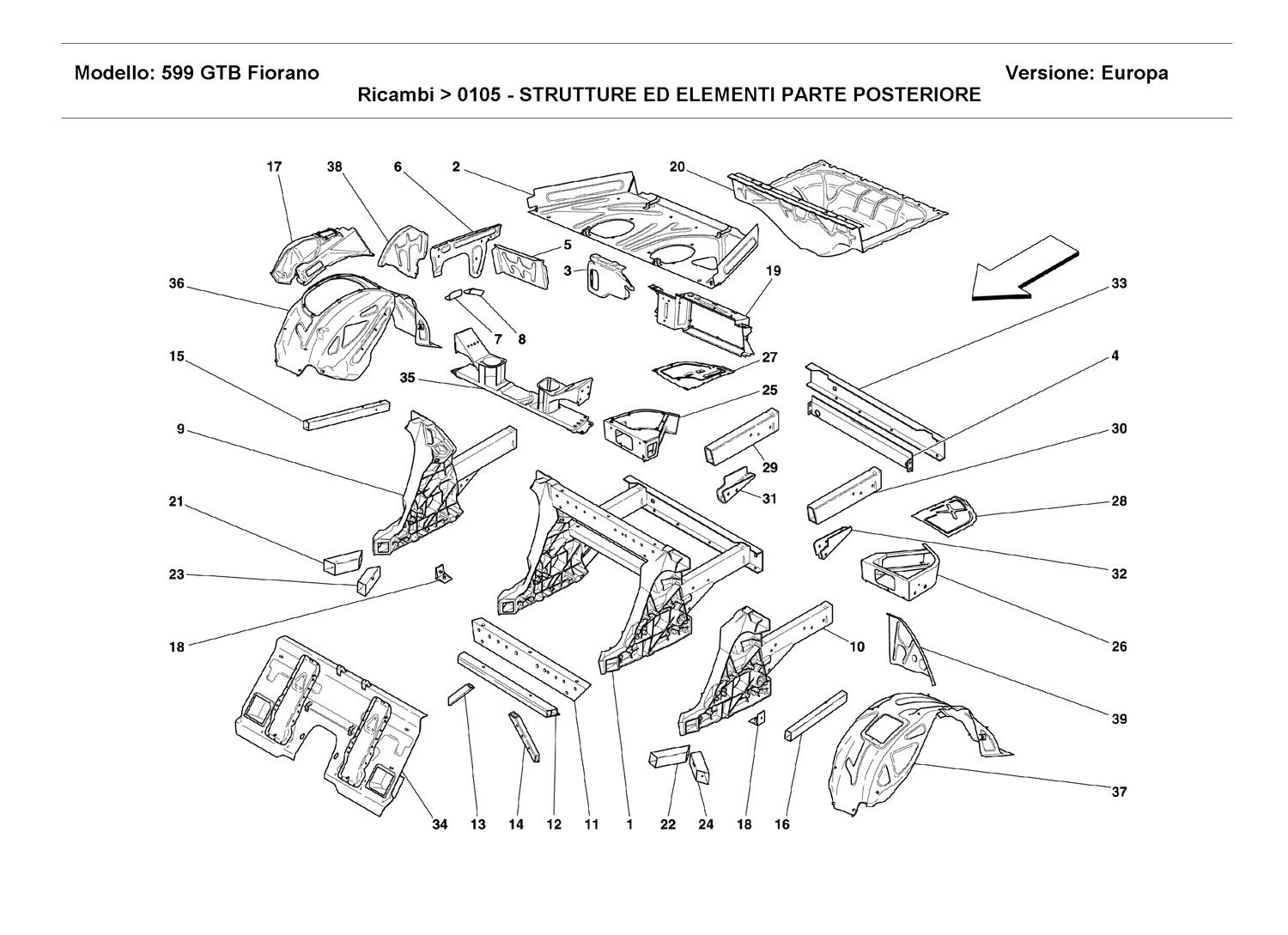

REAR STRUCTURES AND COMPONENTS

Location Part # Quantity* Description Price Add To Cart
1 985195250 1 REAR MODULE $12,601.04
2 69003511 1 PANEL FOR BAGS
-Standard-
-Not for USA and CDN- 		$1,547.96
2 69259611 1 PANEL FOR BAGS
-Roll bar version-
-Not for USA, CDN and AUS- 		$1,750.33
3 68771011 1 L.H. REAR SHIELD $324.11
2 69260011 1 PANEL FOR BAGS
-Valid for USA and CDN- 		$1,513.61
3 68770911 1 R.H. REAR SHIELD $324.11
4 69003911 1 REAR BRACKET $74.22
5 68770711 1 R.H. SIDE PANEL $324.11
5 68770811 1 L.H. SIDE PANEL $324.11
6 68059611 1 R.H. REAR SIDE PANEL $97.99
6 68059711 1 L.H. REAR SIDE PANEL $585.70
7 68059911 2 REAR ANGLE PIECE $39.63
8 68059811 1 R.H. FRONT ANGLE PIECE $48.25
8 69017211 1 L.H. FRONT ANGLE PIECE $48.25
9 985223102 1 R.H. REAR LATERAL MODULE Unavailable
10 985223103 1 L.H. REAR LATERAL MODULE Unavailable
11 985221742 1 CROSS MEMBER $985.71
12 985221718 1 CROSS MEMBER CONNECTION FUSIONS Unavailable
13 985223670 1 R.H. ARM $349.77
14 985223669 1 L.H. ARM $482.04
15 985195236 1 R.H. UPPER DIAGONAL Unavailable
16 985195235 1 L.H. UPPER DIAGONAL $166.99
17 68784300 1 AIR CONVEYOR $742.53
18 68785911 2 BRACKET FIXING AEREODYNAMIC BOTTOM $66.48
19 985217435 1 TRUNK COMPARTMENT SEAL $493.43
20 69138511 1 COMPLETE SPARE WHEEL STEP $1,663.66
21 985205732 1 R.H. LOWER DIAGONAL Unavailable
22 985205731 1 L.H. LOWER DIAGONAL $403.97
23 985221712 1 R.H. INNER REAR TORQUE BOX $186.54
24 985221711 1 L.H. INNER REAR TORQUE BOX $186.54
25 68551511 1 R.H. REAR FRAME $1,027.22
26 68551611 1 L.H. REAR FRAME $1,024.52
27 68053111 1 R.H. LATERAL PAVEMENT $120.89
28 68053211 1 L.H. LATERAL PAVEMENT $115.12
29 985212036 1 R.H. SPRAG $435.65
30 985212035 1 L.H. SPRAG $513.97
31 985187303 1 R.H. REINFORCEMENT Unavailable
32 985187302 1 L.H. REINFORCEMENT $200.97
33 985205754 1 REAR CROSS MEMBER $1,296.42
34 985212086 1 SEAT BACK SHIELD $1,063.74
35 985189265 1 GEARBOX FRAME $5,688.69
36 68555511 1 R.H. REAR WHEELHOUSE $875.01
37 68555611 1 L.H. REAR WHEELHOUSE
-Not for F1- 		$742.03
37 68780511 1 L.H. REAR WHEELHOUSE
-Valid for F1- 		$941.86
38 68054211 1 R.H. REAR LATERAL PANEL $94.42
39 68054311 1 L.H. REAR LATERAL FRONT PANEL $80.02

* Quantity shown indicates the number of pieces used in the diagram.
