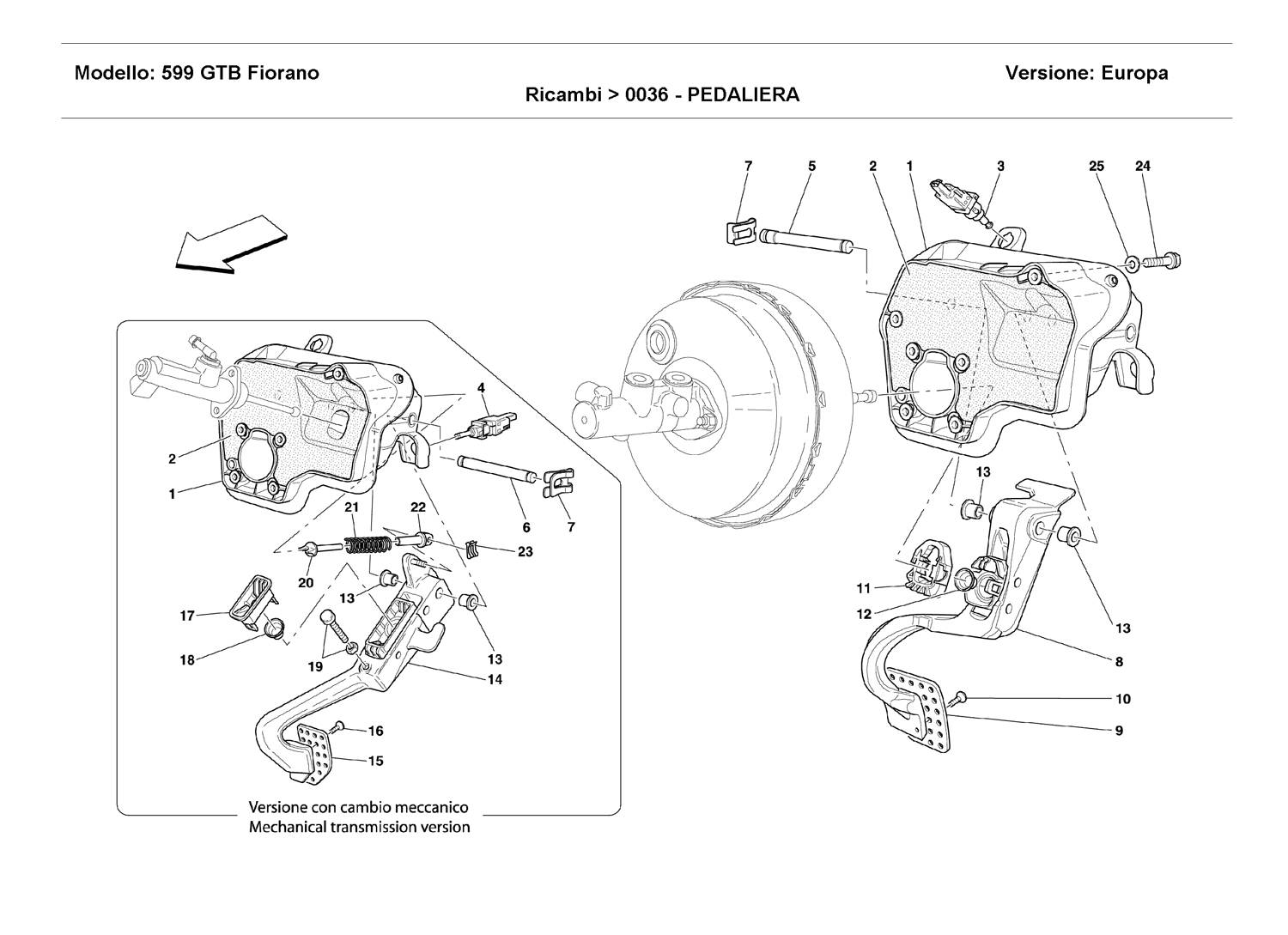

PEDALS

Go to Split View

PEDALS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 189858 *Qty: 1 PEDAL SUPPORT
-Not for RHD-
$261.67
Location: 1 Prev | Next Part: 204192 *Qty: 1 PEDAL SUPPORT
-Valid for RHD-
$610.46
Location: 2 Prev | Next Part: 193886 *Qty: 1 SILENCER $115.13
Location: 3 Prev | Next Part: 201957 *Qty: 1 PUSH-BUTTON SWITCH $37.63
Location: 4 Prev | Next Part: 201958 *Qty: 1 PUSH-BUTTON SWITCH
-Not for F1-
$7.64
Location: 5 Prev | Next Part: 189870 *Qty: 1 PIN $73.26
Location: 6 Prev | Next Part: 189871 *Qty: 1 PIN
-Not for F1-
$87.22
Location: 7 Prev | Next Part: 11064471 *Qty: 2 RETAINER
-Q.ty 4 for mechanical transmission version
$10.76
Location: 8 Prev | Next Part: 191805 *Qty: 1 BRAKE PEDAL
-Valid for F1
-
-Not for RHD-
$470.99
Location: 8 Prev | Next Part: 201376 *Qty: 1 BRAKE PEDAL
-Valid for F1-
-Valid for RHD-
$934.67
Location: 8 Prev | Next Part: 190376 *Qty: 1 BRAKE PEDAL
-No per F1
-
-Not for RHD-
$470.99
Location: 8 Prev | Next Part: 201323 *Qty: 1 BRAKE PEDAL
-No per F1
-
-Valid for RHD-
$785.00
Location: 9 Prev | Next Part: 191401 *Qty: 1 PERFORATED PLATE
-Valid for F1-
$261.67
Location: 9 Prev | Next Part: 188722 *Qty: 1 PERFORATED PLATE
-Not for F1-
$209.34
Location: 10 Prev | Next Part: 14441324 *Qty: 2 SCREW $0.90
Location: 11 Prev | Next Part: 189863 *Qty: 1 BRAKE PEDAL HOLD $27.37
Location: 12 Prev | Next Part: 189864 *Qty: 1 CUP $34.44
Location: 13 Prev | Next Part: 189869 *Qty: 2 BUSHING
-Q.ty 4 for mechanical transmission version
$51.69
Location: 14 Prev | Next Part: 190377 *Qty: 1 CLUTCH PEDAL
-Not for F1
-
-Not for RHD-
Call
Location: 14 Prev | Next Part: 201324 *Qty: 1 CLUTCH PEDAL
-Not for F1
-
-Valid for RHD-
$534.04
Location: 15 Prev | Next Part: 188723 *Qty: 1 PERFORATED PLATE
-Not for F1-
Call
Location: 16 Prev | Next Part: 14441324 *Qty: 2 SCREW-NotforF1- $0.90
Location: 17 Prev | Next Part: 189865 *Qty: 1 CLUTCH PEDAL HOLD
-Not for F1-
$41.86
Location: 18 Prev | Next Part: 189866 *Qty: 1 CUP-NotforF1- $50.83
Location: 19 Prev | Next Part: 199701 *Qty: 1 CLUTCH PEDAL STOPPER
-Not for F1
-
$75.15
Location: 20 Prev | Next Part: 189872 *Qty: 1 UPPER PIN FOR SPRING
-Not for F1-
$16.31
Location: 21 Prev | Next Part: 189874 *Qty: 1 SPRING-NotforF1- $13.58
Location: 22 Prev | Next Part: 189873 *Qty: 1 LOWER PIN FOR SPRING
-Not for F1-
$16.31
Location: 23 Prev | Next Part: 11064071 *Qty: 1 RETAINER-NotforF1- Call
Location: 24 Prev | Next Part: 16287421 *Qty: 2 SCREW $0.90
Location: 25 Prev | Next Part: 12601374 *Qty: 2 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
