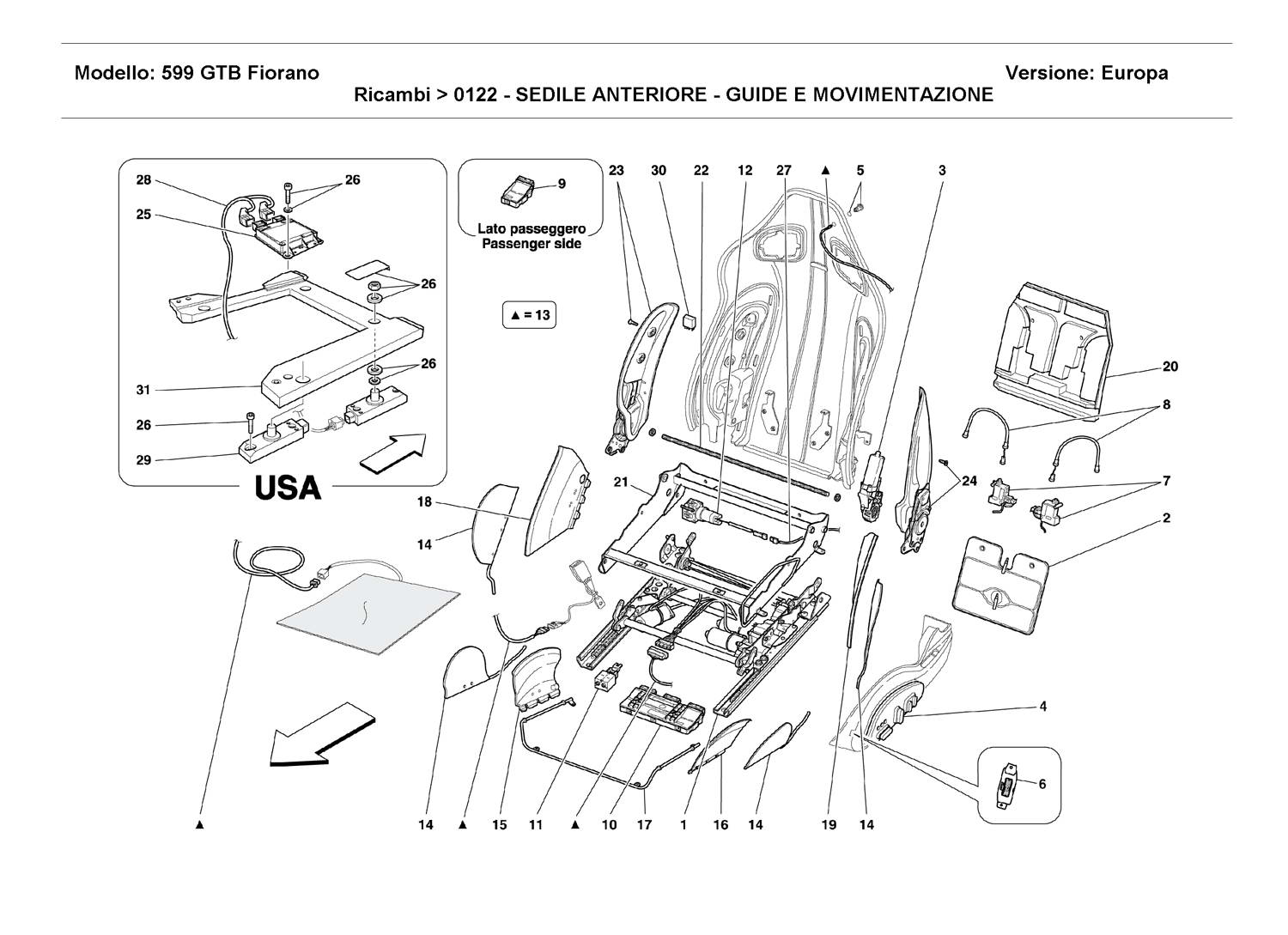

FRONT SEAT - GUIDE AND MOVEMENT

Go to Split View

FRONT SEAT - GUIDE AND MOVEMENT

Location Part # Quantity* Description Price Add To Cart
1 68645900 1 L.H. SEAT MOVEMENT
-Standard- 		$3,454.39
1 69142000 1 R.H. SEAT MOVEMENT
-Standard- 		$2,789.83
1 69471600 1 L.H. SEAT MOVEMENT
-Full electric- 		$3,944.29
1 69480200 1 R.H. SEAT MOVEMENT
-Full electric- 		$3,944.29
2 69480100 2 LOMBAR ADJUST $94.01
3 222975 2 BACKSEAT ADJUST ENGINE
-With hall effect sensor- 		$290.74
3 231032 2 BACKSEAT ADJUST ENGINE
-Without hall effect sensor- 		$276.55
4 69474800 1 R.H. SWITCH PANEL
-Standard- 		$2,148.25
4 69474900 1 R.H. SWITCH PANEL
-Full electric-
-Not for RHD- 		$2,778.36
4 69476000 1 R.H. SWITCH PANEL
-Full electric-
-Valid for RHD- 		$3,026.28
4 69475100 1 L.H. SWITCH PANEL
-Standard- 		$2,148.25
4 69475200 1 L.H. SWITCH PANEL
-Full electric-
-Not for RHD- 		$2,778.36
4 69476100 1 L.H. SWITCH PANEL
-Full electric-
-Valid for RHD- 		$2,711.82
5 222977 2 BUTTON BACKREST DISENGAGEMENT $284.79
6 228929 1 DIGITAL L.H. HEATING CONTROL
-Not for RHD- 		Unavailable
6 228927 1 ANALOGIC L.H. HEATING CONTROL
-Valid for RHD- 		$476.30
6 228928 1 DIGITAL R.H. HEATING CONTROL
-Valid for RHD- 		$561.92
6 228926 1 ANALOGIC R.H. HEATING CONTROL
-Not for RHD- 		$561.92
7 222976 2 ACTUATOR $153.02
8 69476500 2 BOWDEN CABLES $127.57
9 230559 1 SEAT HEATING CONTROL STATION
-Full electric-
-Passenger side- 		$600.88
10 221681 1 NAG/NAP CONTROL STATION
-Full electric-
-Q.ty 1 for USA l.h. seat- 		$2,569.41
10 228923 1 NAG/NAP CONTROL STATION
-Full electric-
-Valid for USA r.h. seat- 		$2,504.57
11 80183900 2 MAGNET VALVE BLOCK
-Q.ty 4 in full electric version-
-Valid till stock exhaustion- 		$580.42
11 80183900 2 MAGNET VALVE BLOCK
-Q.ty 4 in full electric version-
-Valid after stock exhaustion of 68646700- 		$580.42
12 68646500 2 PUMP AIR COMPRESSOR $458.25
13 222980 1 WIRINGS SEAT
-Standard-
-Not for USA and CDN passenger side- 		$1,008.10
13 222981 1 WIRINGS SEAT
-Full electric-
-Memo- 		$1,448.97
13 231110 1 WIRINGS SEAT
-Full electric-
-Not for USA and CDN passenger side- 		$947.32
13 236378 1 WIRINGS SEAT
-Standard-
-Passenger side-
-Valid for USA and CDN- 		$1,651.00
13 236379 1 WIRINGS SEAT
-Full electric-
-Passenger side-
-Valid for USA and CDN- 		$1,651.00
14 68644600 8 AIR CHAMBER $1,296.87
15 69474100 2 R.H. FLAP Unavailable
16 69474200 2 L.H. FLAP Unavailable
17 69474300 2 ATTACHMENT BAR SEAT WELDING GROUP $177.40
18 69471100 2 R.H. FLAP Unavailable
19 69471200 2 L.H. FLAP Unavailable
20 69476400 2 INLAY $187.71
21 69472600 1 R.H. CUSHION FRAME $1,280.06
21 69472700 1 L.H. CUSHION FRAME $1,219.10
22 69476600 2 TRANSMISSION BAR $270.25
23 69470200 1 FLAP R.H. SIDE BOLSTER BACKREST + SCREWS
-Valid till Ass. Nr. 68733- 		$1,191.26
23 69470200 1 FLAP R.H. SIDE BOLSTER BACKREST + SCREWS
-Valid from Ass. Nr. 68734- 		$1,191.26
24 69470300 1 FLAP L.H. SIDE BOLSTER BACKREST + SCREWS
-Valid till Ass. Nr. 68733- 		Unavailable
24 69470300 1 FLAP L.H. SIDE BOLSTER BACKREST + SCREWS
-Valid from Ass. Nr. 68734- 		Unavailable
25 203087 1 CONTROL STATION
-Weigh sensors-
-Valid for USA- 		$337.00
26 70001260 1 KIT FOR FIXING FRAME OF SENSORS
-Weigh sensors-
-Valid for USA- 		$9,216.97
27 68644700 1 KIT TUBES FOR BACKSEAT AIR CHAMBER $208.70
27 68645600 1 KIT TUBES FOR CUSHION AIR CHAMBER $200.12
28 219929 1 SENSORS CABLE
-Weigh sensors-
-Valid for USA- 		$314.50
29 205285 4 SENSOR
-Weigh sensors-
-Valid for USA- 		$588.90
30 231106 2 RELAYS FOR ACTUATOR $119.93
31 69013500 1 SENSORS SUPPORTING STRUCTURE
-Weigh sensors-
-Valid for USA- 		$1,110.71

* Quantity shown indicates the number of pieces used in the diagram.
