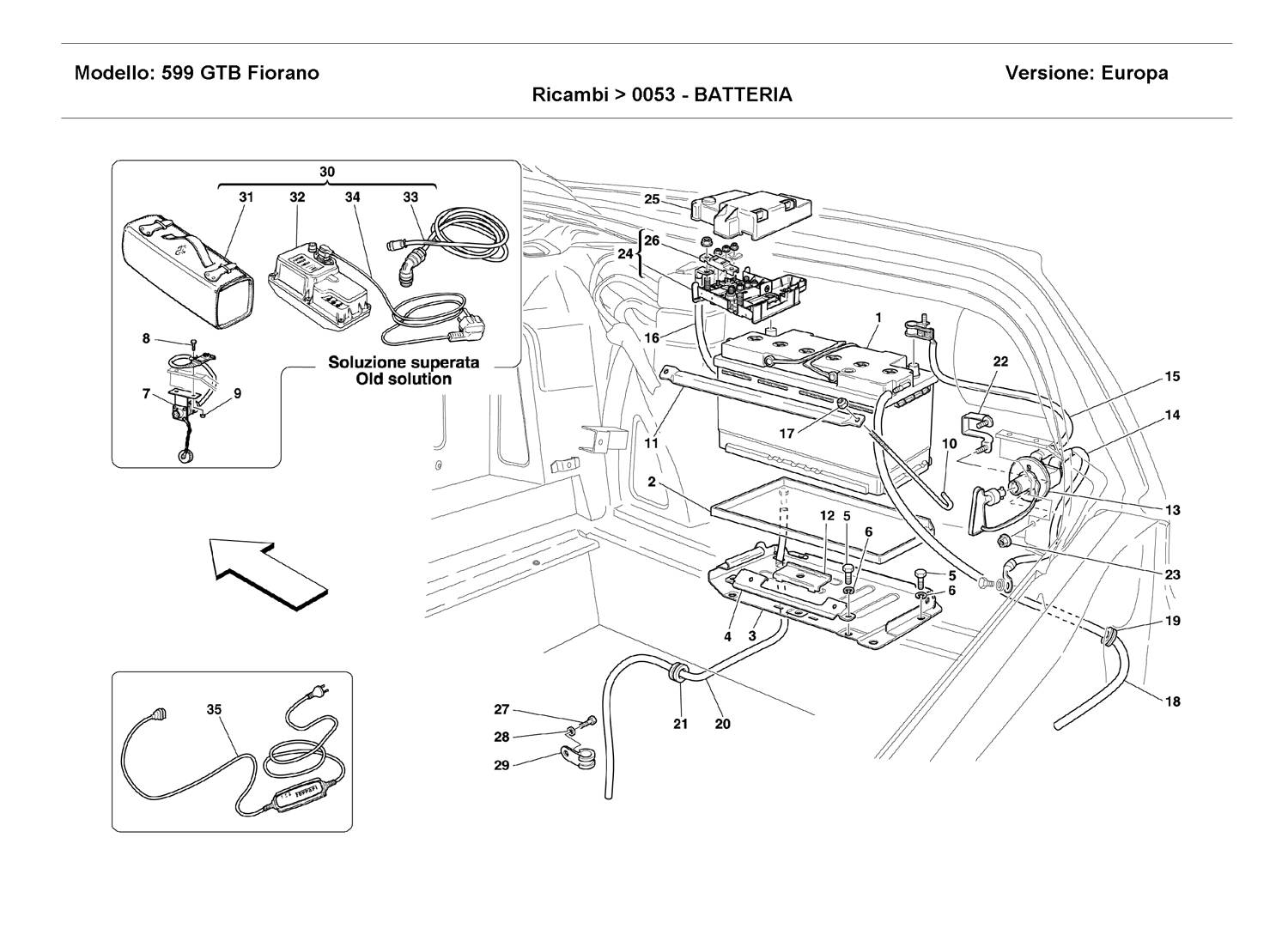

BATTERY

Location	Part #	Quantity*	Description	Price	Add To Cart
1	180055	1	BATTERY 12V-74AH-400A		Superseded
2	204767	1	PAN FOR BATTERY LIQUID	$22.41
3	204773	1	BATTERY BIN	$586.65
4	204772	1	BRACKET FOR BATTERY INTRODUCTION	$55.20
5	16043524	6	SCREW		Unavailable
6	14496524	6	WASHER	$0.90
7	200857	1	BATTERY CHARGER LINK CABLE		Unavailable
8	13274114	2	SCREW		Unavailable
9	14059114	2	NUT		Unavailable
10	188272	2	TIE ROD	$10.33
11	217834	1	ANGLE PIECE	$345.08
12	204770	1	MOBILE BRACKET FOR BATTERY FIXING	$9.30
13	196157	1	CUT-OUT SWITCH		Unavailable
14	196553	1	CUT OUT SWITCH-MASS CONNECTING PLAIT	$185.32
15	196552	1	BATTERY-CUT OUT SWITCH CONNECTING PLAIT	$224.29
16	204716	1	BATTERY POSITIVE CABLE -Not for RHD-	$207.67
16	218747	1	BATTERY POSITIVE CABLE -Valid for RHD-	$406.08
17	102741	2	NUT	$0.90
18	214478	1	PIPE	$4.65
19	10396380	1	CABLE GROMMET		Unavailable
20	204760	1	BATTERY VENT PIPE	$2.35
21	10396380	1	CABLE GROMMET		Unavailable
22	191533	1	BRACKET	$15.04
23	14059111	2	NUT		Unavailable
24	199904	1	BATTERY CONTROL STATION	$129.39
25	199905	1	COVER FOR BATTERY CONTROL STATION	$9.83
26	198704	1	MEGA FUSE	$31.04
27	10902324	1	SCREW		Superseded
28	127494	1	WASHER	$0.90
29	10441290	1	BRACKET WITH SHEATH		Unavailable
30	178682	1	BATTERY CHARGER KIT -Not for USA, CDN, J, GB, Hong Kong and AUS- -Optional-	$2,054.72
30	178683	1	BATTERY CHARGER KIT -Valid for USA, CDN and J- -Optional-		Superseded
30	178685	1	BATTERY CHARGER KIT -Valid for GB and Hong Kong- -Optional-	$1,420.98
30	178684	1	BATTERY CHARGER KIT -Valid for AUS- -Optional-	$869.96
31	65699200	1	BATTERY BAG CASE -Optional-		Unavailable
32	177791	1	BATTERY CHARGER -230V- -Not for USA, CDN and J- -Optional-	$896.55
32	177792	1	BATTERY CHARGER -110V- -Not for USA, CDN and J- -Optional-	$2,047.76
33	178676	1	CABLE WITH CONNECTOR -Optional-		Unavailable
34	177794	1	POWER SUPPLY CABLE -Not for USA, CDN, J, GB, Hong Kong and AUS- -Optional-	$32.76
34	177795	1	POWEER SUPPLY CABLE -Valid for USA, CDN and J- -Optional-	$25.86
34	178294	1	POWER SUPPLY CABLE -Valid for GB and Hong Kong- -Optional-	$79.35
34	177796	1	POWER SUPPLY CABLE -Valid for AUS- -Optional-	$42.51
35	231503	1	BATTERY CHARGER KIT -Not for USA, CDN, GB, J- -Optional-		Unavailable
35	231504	1	BATTERY CHARGER KIT -Valid for USA and CDN- -Optional-		Superseded
35	231506	1	BATTERY CHARGER KIT -Valid for GB- -Optional-		Unavailable
35	236798	1	BATTERY CHARGER KIT -Valid for J- -Optional-		Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
