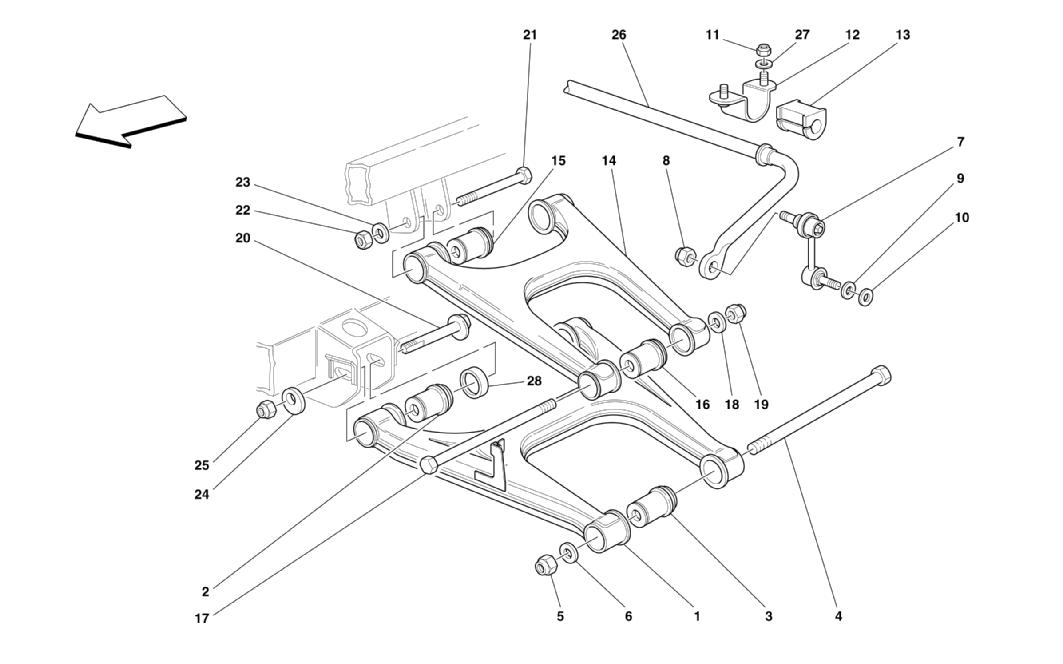

REAR SUSPENSION - WISHBONES AND STABILIZER BAR

Go to Split View

REAR SUSPENSION - WISHBONES AND STABILIZER BAR

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 183772 *Qty: 1 L.H. LOWER LEVER $584.77
Location: 1 Prev | Next Part: 183956 *Qty: 1 R.H. LOWER LEVER $584.77
Location: 2 Prev | Next Part: 186495 *Qty: 4 FLAMBLOCK FOR LOWER FORK $224.25
Location: 3 Prev | Next Part: 186496 *Qty: 4 FLAMBLOCK FOR LOWER FORK $177.73
Location: 4 Prev | Next Part: 168445 *Qty: 2 SCREW $39.25
Location: 5 Prev | Next Part: 150238 *Qty: 2 NUT $0.90
Location: 6 Prev | Next Part: 105434 *Qty: 2 WASHER $23.95
Location: 7 Prev | Next Part: 171812 *Qty: 2 TIE ROD $129.40
Location: 8 Prev | Next Part: 102742 *Qty: 2 NUT $0.90
Location: 9 Prev | Next Part: 102901 *Qty: 2 WASHER $0.90
Location: 10 Prev | Next Part: 160092 *Qty: 2 WASHER $0.90
Location: 11 Prev | Next Part: 147985 *Qty: 4 NUT $0.90
Location: 12 Prev | Next Part: 153148 *Qty: 2 PAD FASTENING PLATE $6.38
Location: 13 Prev | Next Part: 212936 *Qty: 2 BAR BUFFER -? 17- -Not for cars with handling Fiorano equipment -Valid after stock exhaustion of 153146 $14.03
Location: 13 Prev | Next Part: 130533 *Qty: 2 BAR BUFFER -? 21- -Valid for cars with handling Fiorano equipment -Optional $78.54
Location: 13 Prev | Next Part: 210897 *Qty: 2 BAR BUFFER -? 19.5- -HGTC Version Call
Location: 14 Prev | Next Part: 188736 *Qty: 2 UPPER LEVER $316.39
Location: 15 Prev | Next Part: 186496 *Qty: 4 FLAMBLOCK FOR UPPER FORK $177.73
Location: 16 Prev | Next Part: 186493 *Qty: 4 FLAMBLOCK FOR UPPER FORK $136.49
Location: 17 Prev | Next Part: 144747 *Qty: 2 SCREW $35.17
Location: 18 Prev | Next Part: 12601574 *Qty: 2 WASHER $0.90
Location: 19 Prev | Next Part: 148020 *Qty: 2 NUT $4.84
Location: 20 Prev | Next Part: 150789 *Qty: 4 ECCENTRIC SCREW $67.31
Location: 21 Prev | Next Part: 106422 *Qty: 4 SCREW $32.43
Location: 22 Prev | Next Part: 150238 *Qty: 4 NUT $0.90
Location: 23 Prev | Next Part: 12601674 *Qty: 4 WASHER $0.90
Location: 24 Prev | Next Part: 175077 *Qty: 4 ECCENTRIC WASHER $22.88
Location: 25 Prev | Next Part: 150238 *Qty: 4 NUT $0.90
Location: 26 Prev | Next Part: 210888 *Qty: 1 REAR ANTI-ROLL BAR -? 19.5- -HGTC Version Call
Location: 26 Prev | Next Part: 169120 *Qty: 1 REAR ANTI-ROLL BAR -? 17- -Not for cars with handling Fiorano equipment $307.43
Location: 27 Prev | Next Part: 10519624 *Qty: 4 WASHER $0.90
Location: 28 Prev | Next Part: 187016 *Qty: 4 SPACER FOR FLAMBLOCK $4.43

* Quantity shown indicates the number of pieces used in the diagram.
