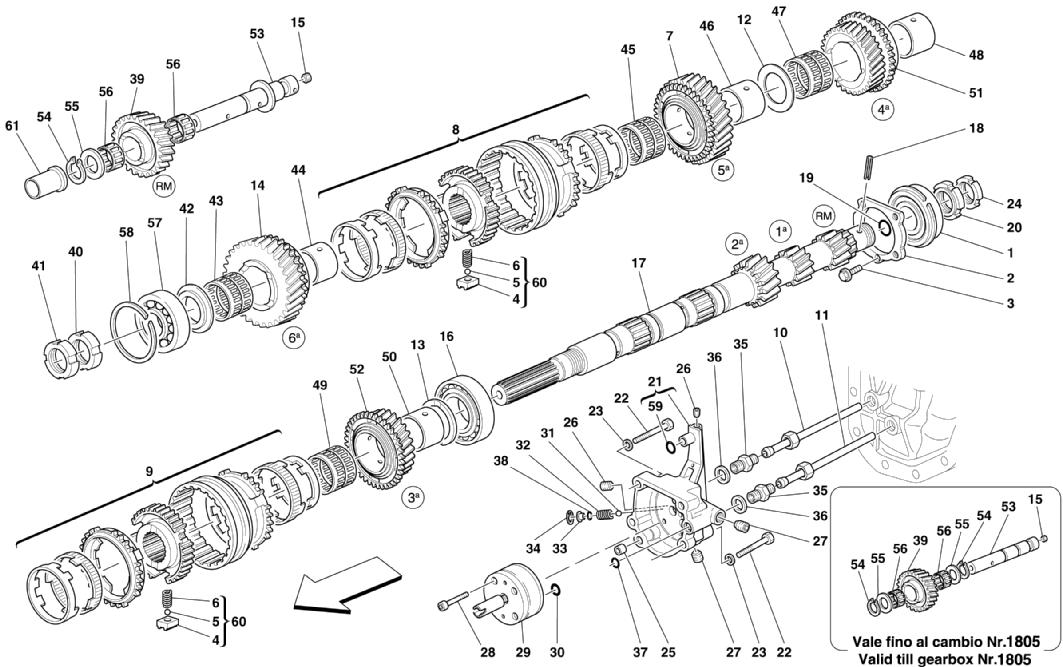

MAIN SHAFT GEARS AND CLUTCH OIL PUMP

Go to Split View

MAIN SHAFT GEARS AND CLUTCH OIL PUMP

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 196155 *Qty: 1 COMPLETE OIL PUMP BODY $508.45
Location: 1 Prev | Next Part: 144502 *Qty: 1 BEARING FOR MAIN SHAFT PUMP OIL SIDE $170.34
Location: 2 Prev | Next Part: 144444 *Qty: 1 SUPPORT RING $64.74
Location: 3 Prev | Next Part: 16287124 *Qty: 1 SCREW $1.26
Location: 4 Prev | Next Part: 184991 *Qty: 6 SMALL BLOCK -Not as spare part -Replaced by 194029 -See ref. 60 Call
Location: 5 Prev | Next Part: 184997 *Qty: 6 BALL -Not as spare part -Replaced by 194029 -See ref. 60 Call
Location: 6 Prev | Next Part: 189523 *Qty: 6 SPRING -Not as spare part -Replaced by 194029 -See ref. 60 Call
Location: 7 Prev | Next Part: 189691 *Qty: 1 PINION FOR 5th GEAR Call
Location: 8 Prev | Next Part: 189689 *Qty: 1 5th AND 6th GEAR COMPLETE SYNCHRONIZER $748.05
Location: 9 Prev | Next Part: 189657 *Qty: 1 3th AND 4th GEAR COMPLETE SYNCHRONIZER $705.70
Location: 10 Prev | Next Part: 179660 *Qty: 1 OIL RETURN PIPE $104.67
Location: 11 Prev | Next Part: 179659 *Qty: 1 OIL DELIVERY PIPE $104.67
Location: 12 Prev | Next Part: 189671 *Qty: 1 RING $777.03
Location: 13 Prev | Next Part: 189700 *Qty: 1 RING $39.90
Location: 14 Prev | Next Part: 189693 *Qty: 1 PINION FOR 6th GEAR $750.53
Location: 15 Prev | Next Part: 189573 *Qty: 1 PLUG $6.09
Location: 16 Prev | Next Part: 131056 *Qty: 1 ROLLER BEARING $199.75
Location: 17 Prev | Next Part: 189526 *Qty: 1 MAIN SHAFT FOR GEAR LEVER $1,191.18
Location: 18 Prev | Next Part: 14601270 *Qty: 1 FLEXIBLE PIN $0.90
Location: 19 Prev | Next Part: 109724 *Qty: 1 O.R. GASKET $1.39
Location: 20 Prev | Next Part: 163670 *Qty: 1 RING NUT $64.68
Location: 21 Prev | Next Part: 195013 *Qty: 1 OIL PUMP BODY -With complete oil pump body Call
Location: 21 Prev | Next Part: 189117 *Qty: 1 OIL PUMP BODY -With complete oil pump body -Not as spare part -Replaced by 195013 Call
Location: 22 Prev | Next Part: 16044321 *Qty: 4 SCREW $0.90
Location: 23 Prev | Next Part: 12601374 *Qty: 4 WASHER $0.90
Location: 24 Prev | Next Part: 163684 *Qty: 1 RING NUT $21.15
Location: 25 Prev | Next Part: 102704 *Qty: 1 CENTERING DOWEL $1.90
Location: 26 Prev | Next Part: 14326150 *Qty: 2 PLUG $0.90
Location: 27 Prev | Next Part: 10269550 *Qty: 2 PLUG $0.90
Location: 28 Prev | Next Part: 14303474 *Qty: 4 SCREW $0.90
Location: 29 Prev | Next Part: 185458 *Qty: 1 COMPLETE BEARBOX OIL PUMP $391.98
Location: 30 Prev | Next Part: 137192 *Qty: 1 O.R. GASKET $0.90
Location: 31 Prev | Next Part: 135770 *Qty: 1 BALL $0.90
Location: 32 Prev | Next Part: 171889 *Qty: 1 SPRING $4.05
Location: 33 Prev | Next Part: 102591 *Qty: 1 SPACER $7.57
Location: 34 Prev | Next Part: 11057576 *Qty: 1 SEEGER RING $0.90
Location: 35 Prev | Next Part: 150577 *Qty: 2 UNION $21.43
Location: 36 Prev | Next Part: 10257060 *Qty: 2 GASKET $0.90
Location: 37 Prev | Next Part: 137192 *Qty: 1 GASKET $0.90
Location: 38 Prev | Next Part: 14453281 *Qty: 1 GASKET $1.54
Location: 39 Prev | Next Part: 189570 *Qty: 1 IDLE GEAR FOR REVERSE $932.80
Location: 40 Prev | Next Part: 189707 *Qty: 1 RING NUT $56.73
Location: 41 Prev | Next Part: 189708 *Qty: 1 RING NUT $85.14
Location: 42 Prev | Next Part: 189704 *Qty: 1 SPACER -Th. mm 3,9 $28.50
Location: 42 Prev | Next Part: 189709 *Qty: 1 SPACER -Th. mm 4,15 $33.61
Location: 43 Prev | Next Part: 109002 *Qty: 1 ROLLER CAGE $31.46
Location: 44 Prev | Next Part: 189705 *Qty: 1 BUSHING $67.21
Location: 45 Prev | Next Part: 109002 *Qty: 1 ROLLER CAGE $31.46
Location: 46 Prev | Next Part: 189669 *Qty: 1 BUSHING Call
Location: 47 Prev | Next Part: 109002 *Qty: 1 ROLLER CAGE $31.46
Location: 48 Prev | Next Part: 189669 *Qty: 1 BUSHING Call
Location: 49 Prev | Next Part: 109002 *Qty: 1 ROLLER CAGE $31.46
Location: 50 Prev | Next Part: 189656 *Qty: 1 BUSHING $57.01
Location: 51 Prev | Next Part: 189661 *Qty: 1 PINION FOR 4th GEAR Call
Location: 52 Prev | Next Part: 189659 *Qty: 1 PINION FOR 3RD GEAR $750.53
Location: 53 Prev | Next Part: 189574 *Qty: 1 PIN -Valid till gearbox Nr. 1805 $60.77
Location: 53 Prev | Next Part: 211960 *Qty: 1 PIN -Valid from gearbox Nr. 1806 $100.26
Location: 54 Prev | Next Part: 158272 *Qty: 2 FLEXIBLE RING -Q.ty 1 from gearbox Nr. 1806 $0.90
Location: 55 Prev | Next Part: 193892 *Qty: 2 SPACER WASHER -Th. mm. 4,1 -Q.ty 1 from gearbox Nr. 1806 $30.56
Location: 55 Prev | Next Part: 193891 *Qty: 2 SPACER WASHER -Th. mm. 4,0 -Q.ty 1 from gearbox Nr. 1806 $30.56
Location: 55 Prev | Next Part: 193893 *Qty: 2 SPACER WASHER -Th. mm. 3,9 -Q.ty 1 from gearbox Nr. 1806 $30.56
Location: 56 Prev | Next Part: 104256 *Qty: 2 ROLLER CAGE $8.92
Location: 57 Prev | Next Part: 103030 *Qty: 1 ROLLER BEARING $239.07
Location: 58 Prev | Next Part: 144511 *Qty: 1 STOP RING $1.08
Location: 59 Prev | Next Part: 14452981 *Qty: 1 O.R. GASKET $1.54
Location: 60 Prev | Next Part: 194029 *Qty: 2 PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT $13.65
Location: 61 Prev | Next Part: 211961 *Qty: 1 SPACER BUSHING -Valid from gearbox Nr. 1806 $22.74

* Quantity shown indicates the number of pieces used in the diagram.
