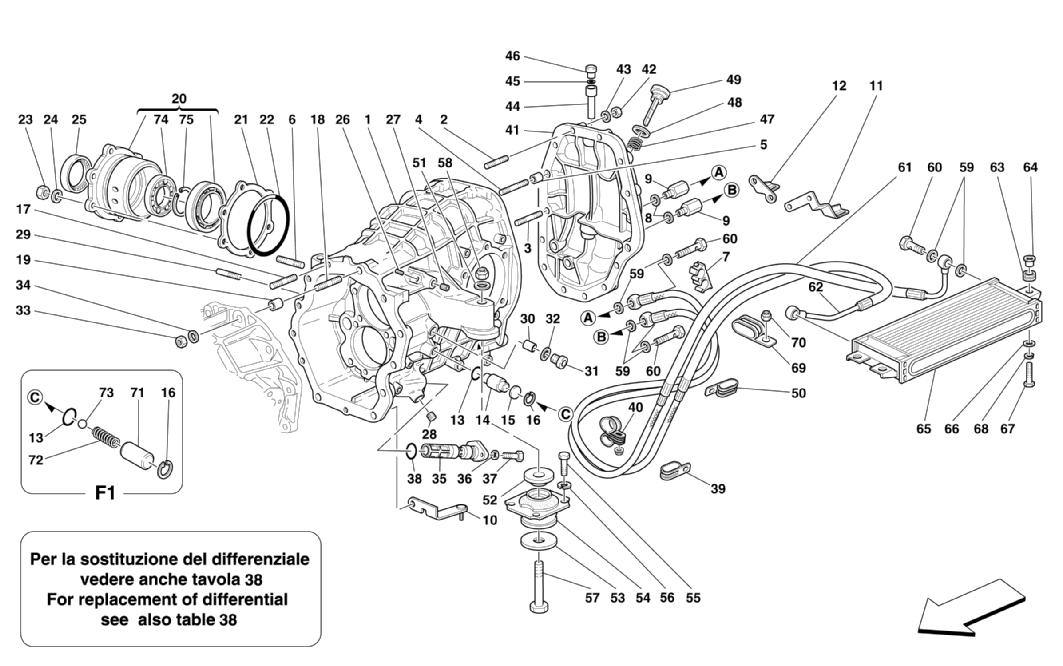

DIFFERENTIAL CARRIER AND CLUTCH COOLING RADIATOR

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 179650 *Qty: 1 COMPLETE GEARBOX ASSEMBLY $8,682.99
Location: 1 Prev | Next Part: 189595 *Qty: 1 GEAR BOX 4th ELEMENT -With complete gear box Unavailable
Location: 2 Prev | Next Part: 13543624 *Qty: 10 STUD Unavailable
Location: 3 Prev | Next Part: 13543724 *Qty: 2 STUD Unavailable
Location: 4 Prev | Next Part: 13543824 *Qty: 2 STUD Superseded
Location: 5 Prev | Next Part: 102704 *Qty: 2 CENTERING DOWEL $3.44
Location: 6 Prev | Next Part: 13546224 *Qty: 12 STUD $17.04
Location: 7 Prev | Next Part: 140728 *Qty: 2 FIXING CLIP $0.90
Location: 8 Prev | Next Part: 10259960 *Qty: 2 GASKET $0.90
Location: 9 Prev | Next Part: 185233 *Qty: 2 UNION -Not as spare part -Replaced by 198126 Unavailable
Location: 9 Prev | Next Part: 198126 *Qty: 2 UNION Unavailable
Location: 10 Prev | Next Part: 186254 *Qty: 1 BRACKET -Valid for F1 $25.68
Location: 11 Prev | Next Part: 186314 *Qty: 1 L.H. BRACKET $25.73
Location: 12 Prev | Next Part: 169465 *Qty: 1 R.H. BRACKET $15.56
Location: 13 Prev | Next Part: 14453381 *Qty: 1 O.R. GASKET $1.40
Location: 14 Prev | Next Part: 153719 *Qty: 1 PIN $18.17
Location: 15 Prev | Next Part: 154698 *Qty: 1 PAD Unavailable
Location: 16 Prev | Next Part: 11057476 *Qty: 1 STOP RING Unavailable
Location: 17 Prev | Next Part: 13543524 *Qty: 7 STUD $5.37
Location: 18 Prev | Next Part: 13543624 *Qty: 2 STUD Unavailable
Location: 19 Prev | Next Part: 102704 *Qty: 2 CENTERING DOWEL $3.44
Location: 20 Prev | Next Part: 189100 *Qty: 1 COMPLETE L.H. DIFFERENTIAL COVER $740.12
Location: 20 Prev | Next Part: 189098 *Qty: 1 COMPLETE R.H. DIFFERENTIAL COVER $740.12
Location: 21 Prev | Next Part: 150102 *Qty: 0 DITTO THINCKNESS mm. 1.6 $89.76
Location: 21 Prev | Next Part: 150106 *Qty: 0 DITTO THINCKNESS mm. 1.45 $105.35
Location: 21 Prev | Next Part: 150099 *Qty: 2 DIFFERENTIAL COVER THRUST THINCKNESS mm. 1,3 $110.68
Location: 21 Prev | Next Part: 150103 *Qty: 0 DITTO THINCKNESS mm. 1.7 $199.64
Location: 21 Prev | Next Part: 150107 *Qty: 0 DITTO THINCKNESS mm. 1.55 $105.35
Location: 21 Prev | Next Part: 150101 *Qty: 0 DITTO THINCKNESS mm. 1.5 $89.76
Location: 21 Prev | Next Part: 150100 *Qty: 0 DITTO THINCKNESS mm. 1.4 $89.76
Location: 21 Prev | Next Part: 150105 *Qty: 0 DITTO THINCKNESS mm. 1.9 $105.35
Location: 21 Prev | Next Part: 150104 *Qty: 0 DITTO THINCKNESS mm. 1.8 $110.68
Location: 21 Prev | Next Part: 150108 *Qty: 0 DITTO THINCKNESS mm. 1.65 $89.76
Location: 22 Prev | Next Part: 14461381 *Qty: 2 O.R. GASKET $13.87
Location: 23 Prev | Next Part: 133988 *Qty: 12 NUT Unavailable
Location: 24 Prev | Next Part: 12601474 *Qty: 12 WASHER Unavailable
Location: 25 Prev | Next Part: 181618 *Qty: 1 R.H. GASKET $50.37
Location: 25 Prev | Next Part: 181617 *Qty: 1 L.H. GASKET $45.35
Location: 26 Prev | Next Part: 65928500 *Qty: 2 PLUG $18.29
Location: 27 Prev | Next Part: 14326150 *Qty: 1 PLUG Unavailable
Location: 28 Prev | Next Part: 14326050 *Qty: 1 PLUG $1.54
Location: 29 Prev | Next Part: 16183021 *Qty: 1 SCREW Unavailable
Location: 30 Prev | Next Part: 115376 *Qty: 3 BUSHING $47.90
Location: 31 Prev | Next Part: 150731 *Qty: 1 PLUG $4.35
Location: 32 Prev | Next Part: 10282460 *Qty: 1 GASKET $1.04
Location: 33 Prev | Next Part: 16100812 *Qty: 13 NUT Unavailable
Location: 34 Prev | Next Part: 12601374 *Qty: 13 WASHER Unavailable
Location: 35 Prev | Next Part: 143939 *Qty: 1 OIL FILTER ON THE GEAR BOX $104.42
Location: 36 Prev | Next Part: 11199277 *Qty: 2 WASHER $0.90
Location: 37 Prev | Next Part: 10977624 *Qty: 2 SCREW Unavailable
Location: 38 Prev | Next Part: 182119 *Qty: 1 O.R. GASKET $2.63
Location: 39 Prev | Next Part: 139512 *Qty: 1 BRACKET WITH SHEATH $2.60
Location: 40 Prev | Next Part: 10441501 *Qty: 2 FIXING BRACKET $2.16
Location: 41 Prev | Next Part: 190240 *Qty: 1 GEARBOX REAR COVER $156.84
Location: 42 Prev | Next Part: 16100812 *Qty: 14 NUT Unavailable
Location: 43 Prev | Next Part: 12601374 *Qty: 14 WASHER Unavailable
Location: 44 Prev | Next Part: 153500 *Qty: 1 EXTENSION FOR OIL EXHAUST $10.78
Location: 45 Prev | Next Part: 13415400 *Qty: 1 OIL DEFLECTOR DISC FOR VENT Unavailable
Location: 46 Prev | Next Part: 13414691 *Qty: 1 OIL BREATHER $13.90
Location: 47 Prev | Next Part: 112254 *Qty: 1 THREADED INSERT $4.52
Location: 48 Prev | Next Part: 10261860 *Qty: 1 GASKET $0.90
Location: 49 Prev | Next Part: 199407 *Qty: 1 PLUG $38.05
Location: 49 Prev | Next Part: 172478 *Qty: 1 PLUG -Not as spare part -Replaced by 199407 $100.49
Location: 50 Prev | Next Part: 61712500 *Qty: 1 BRACKET WITH SHEATH $1.92
Location: 51 Prev | Next Part: 12601774 *Qty: 2 WASHER Unavailable
Location: 52 Prev | Next Part: 172935 *Qty: 2 UPPER SPACER $14.10
Location: 53 Prev | Next Part: 132269 *Qty: 2 LOWER SPACER Unavailable
Location: 54 Prev | Next Part: 169492 *Qty: 2 WICK BODY $99.98
Location: 55 Prev | Next Part: 15970634 *Qty: 8 SCREW Unavailable
Location: 56 Prev | Next Part: 127497 *Qty: 8 WASHER $0.90
Location: 57 Prev | Next Part: 156458 *Qty: 2 SCREW $14.95
Location: 58 Prev | Next Part: 176573 *Qty: 2 NUT $2.15
Location: 59 Prev | Next Part: 10261560 *Qty: 8 GASKET $0.90
Location: 60 Prev | Next Part: 10181911 *Qty: 4 UNION $7.63
Location: 61 Prev | Next Part: 186088 *Qty: 1 OIL DELIVERY TUBE TO RADIATOR $667.96
Location: 62 Prev | Next Part: 186089 *Qty: 1 OIL RETURN TUBE FROM RADIATOR -Not as spare part -Replaced by 201351 Unavailable
Location: 62 Prev | Next Part: 201351 *Qty: 1 OIL DELIVERY TUBE TO RADIATOR $700.83
Location: 63 Prev | Next Part: 103549 *Qty: 3 CABLE GROMMET $1.40
Location: 64 Prev | Next Part: 149707 *Qty: 3 SPACER $1.26
Location: 65 Prev | Next Part: 186087 *Qty: 1 OIL RADIATOR $880.01
Location: 66 Prev | Next Part: 12643724 *Qty: 3 WASHER Superseded
Location: 67 Prev | Next Part: 10902524 *Qty: 3 SCREW Unavailable
Location: 68 Prev | Next Part: 127494 *Qty: 3 WASHER $0.90
Location: 69 Prev | Next Part: 138478 *Qty: 1 CLAMP $5.79
Location: 70 Prev | Next Part: 102948 *Qty: 1 NUT Superseded
Location: 71 Prev | Next Part: 193435 *Qty: 1 PIN -Valid for F1 Unavailable
Location: 72 Prev | Next Part: 100750 *Qty: 1 SPRING -Valid for F1 $1.64
Location: 73 Prev | Next Part: 101612 *Qty: 1 BALL -Valid for F1 $1.24
Location: 74 Prev | Next Part: 184995 *Qty: 2 BALL BEARING $167.66
Location: 75 Prev | Next Part: 185723 *Qty: 2 SEEGER RING $4.89

* Quantity shown indicates the number of pieces used in the diagram.
