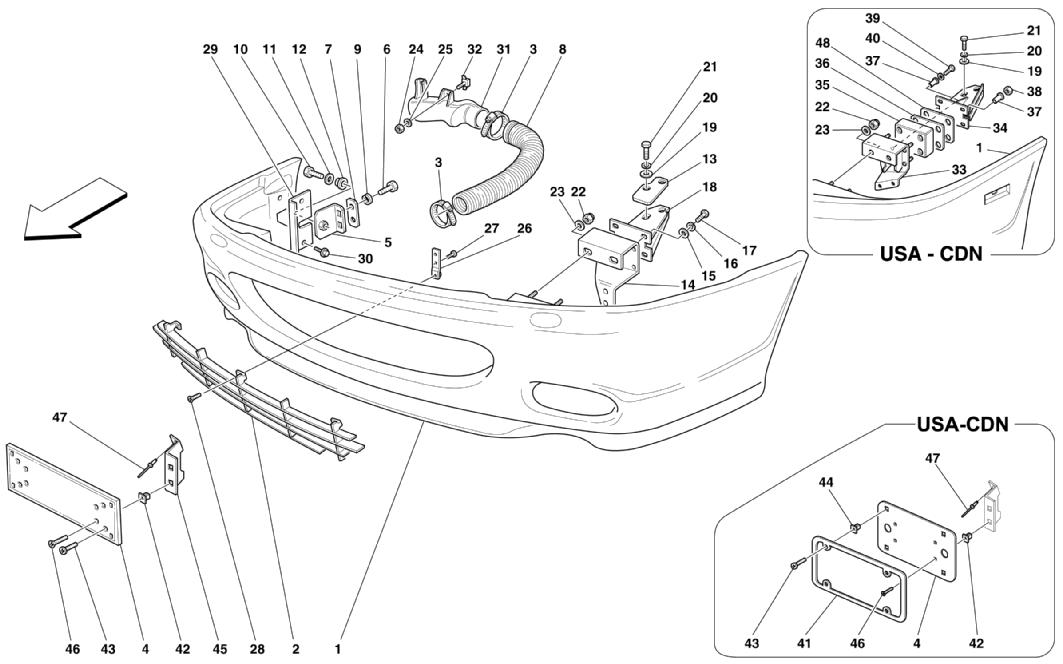

FRONT BUMPER

Go to Split View

FRONT BUMPER

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 66082010 *Qty: 1 COMPLETE FRONT BUMPER -Not for USA and CDN Call
Location: 1 Prev | Next Part: 66407510 *Qty: 1 COMPLETE FRONT BUMPER -Valid for USA Call
Location: 1 Prev | Next Part: 66615210 *Qty: 1 COMPLETE FRONT BUMPER -Valid for CDN Call
Location: 2 Prev | Next Part: 66084100 *Qty: 1 COMPLETE FRONT BUMPER GRILL $1,240.70
Location: 2 Prev | Next Part: 67944700 *Qty: 1 COMPLETE FRONT BUMPER GRILL 250 GT2 type -Optional $1,535.70
Location: 3 Prev | Next Part: 13001090 *Qty: 4 SCREW COLLAR $1.64
Location: 4 Prev | Next Part: 63736400 *Qty: 1 FRONT PLATE FRAME -Not for USA,CDN,AUS,GB,J,CH and D $63.64
Location: 4 Prev | Next Part: 63736300 *Qty: 1 FRONT PLATE FRAME -Valid for GB and D $66.68
Location: 4 Prev | Next Part: 65271400 *Qty: 1 FRONT PLATE FRAME -Valid for USA and CDN $75.79
Location: 4 Prev | Next Part: 65272100 *Qty: 1 FRONT PLATE FRAME -Valid for J $33.88
Location: 4 Prev | Next Part: 65271000 *Qty: 1 FRONT PLATE FRAME -Valid for AUS Call
Location: 4 Prev | Next Part: 65272400 *Qty: 1 FRONT PLATE FRAME -Valid for CH Call
Location: 5 Prev | Next Part: 65238400 *Qty: 1 R.H. BRACKET $67.04
Location: 5 Prev | Next Part: 65239000 *Qty: 1 L.H. BRACKET $67.04
Location: 6 Prev | Next Part: 10902624 *Qty: 4 SCREW $0.90
Location: 7 Prev | Next Part: 67123200 *Qty: 2 SPACER $3.05
Location: 7 Prev | Next Part: 12640624 *Qty: 4 WASHER -Not as spare part -Replaced by 67123200 $0.90
Location: 8 Prev | Next Part: 174155 *Qty: 2 PIPE FOR FRONT BRAKES COOLING $186.46
Location: 9 Prev | Next Part: 127494 *Qty: 4 WASHER $0.90
Location: 10 Prev | Next Part: 65228800 *Qty: 2 PIN $7.39
Location: 11 Prev | Next Part: 65406400 *Qty: 2 WASHER $0.90
Location: 12 Prev | Next Part: 65228700 *Qty: 2 BUSHING $6.30
Location: 13 Prev | Next Part: 63215400 *Qty: 8 SPACER -Not for USA and CDN $2.28
Location: 14 Prev | Next Part: 66171700 *Qty: 1 R.H. INNER BRACKET -Not for USA and CDN $188.55
Location: 14 Prev | Next Part: 66171800 *Qty: 1 L.H. INNER BRACKET -Not for USA and CDN $188.55
Location: 15 Prev | Next Part: 12646821 *Qty: 8 WASHER -Not for USA and CDN $0.90
Location: 16 Prev | Next Part: 127497 *Qty: 8 WASHER -Not for USA and CDN $0.90
Location: 17 Prev | Next Part: 11227921 *Qty: 8 SCREW -Not for USA and CDN $0.90
Location: 18 Prev | Next Part: 65033100 *Qty: 1 L.H. SUPPORT -Not for USA and CDN $235.60
Location: 18 Prev | Next Part: 65033000 *Qty: 1 R.H. SUPPORT -Not for USA and CDN $235.60
Location: 19 Prev | Next Part: 12648504 *Qty: 4 WASHER $0.90
Location: 20 Prev | Next Part: 127498 *Qty: 4 WASHER $0.90
Location: 21 Prev | Next Part: 15540621 *Qty: 4 SCREW $1.98
Location: 22 Prev | Next Part: 12574521 *Qty: 8 NUT $0.90
Location: 23 Prev | Next Part: 12646821 *Qty: 8 WASHER $0.90
Location: 24 Prev | Next Part: 102741 *Qty: 4 NUT $0.90
Location: 25 Prev | Next Part: 12646601 *Qty: 4 WASHER $0.90
Location: 26 Prev | Next Part: 66223600 *Qty: 8 BRACKET $26.38
Location: 27 Prev | Next Part: 16285127 *Qty: 16 SCREW $0.90
Location: 28 Prev | Next Part: 13274177 *Qty: 8 SCREW $0.90
Location: 29 Prev | Next Part: 65270200 *Qty: 2 SIDE BRACKET $352.97
Location: 30 Prev | Next Part: 16287024 *Qty: 4 SCREW $0.90
Location: 31 Prev | Next Part: 168356 *Qty: 1 L.H. AIR INLET $40.45
Location: 31 Prev | Next Part: 168355 *Qty: 1 R.H. AIR INLET $40.45
Location: 32 Prev | Next Part: 14662695 *Qty: 4 SCREW WITH CAGE $4.92
Location: 33 Prev | Next Part: 66288200 *Qty: 1 L.H. INNER BRACKET -Valid for USA and CDN $293.37
Location: 33 Prev | Next Part: 66288100 *Qty: 1 R.H. INNER BRACKET -Valid for USA and CDN $293.37
Location: 34 Prev | Next Part: 65170300 *Qty: 1 L.H. SUPPORT -Valid for USA and CDN $348.90
Location: 34 Prev | Next Part: 65170200 *Qty: 1 R.H. SUPPORT -Valid for USA and CDN $348.90
Location: 35 Prev | Next Part: 63214100 *Qty: 2 PAD -Valid for USA and CDN $42.95
Location: 36 Prev | Next Part: 63738800 *Qty: 2 PLATE -Valid for USA and CDN $4.29
Location: 37 Prev | Next Part: 65372900 *Qty: 8 SPACER -Valid for USA and CDN $6.41
Location: 38 Prev | Next Part: 12574521 *Qty: 6 NUT -Valid for USA and CDN $0.90
Location: 39 Prev | Next Part: 15888721 *Qty: 2 SCREW -Valid for USA and CDN $2.42
Location: 40 Prev | Next Part: 12646821 *Qty: 2 WASHER -Valid for USA and CDN $0.90
Location: 41 Prev | Next Part: 60987900 *Qty: 1 FRONT NUMBER PLATE RIM -Valid for USA and CDN $18.33
Location: 42 Prev | Next Part: 14115680 *Qty: 4 NUT SCREW $0.90
Location: 43 Prev | Next Part: 15688175 *Qty: 4 SCREW -Valid for USA and CDN $0.90
Location: 43 Prev | Next Part: 15687375 *Qty: 4 SCREW -Not for USA and CDN $0.90
Location: 44 Prev | Next Part: 14201980 *Qty: 4 BLOCK -Valid for USA and CDN $0.90
Location: 45 Prev | Next Part: 66087600 *Qty: 1 L.H. BRACKET $54.40
Location: 45 Prev | Next Part: 66087500 *Qty: 1 R.H. BRACKET $54.40
Location: 46 Prev | Next Part: 15917777 *Qty: 4 SCREW $0.90
Location: 47 Prev | Next Part: 14296196 *Qty: 4 RIVET $0.90
Location: 48 Prev | Next Part: 67418600 *Qty: 2 SPACER -Valid for USA and CDN $219.74

* Quantity shown indicates the number of pieces used in the diagram.
