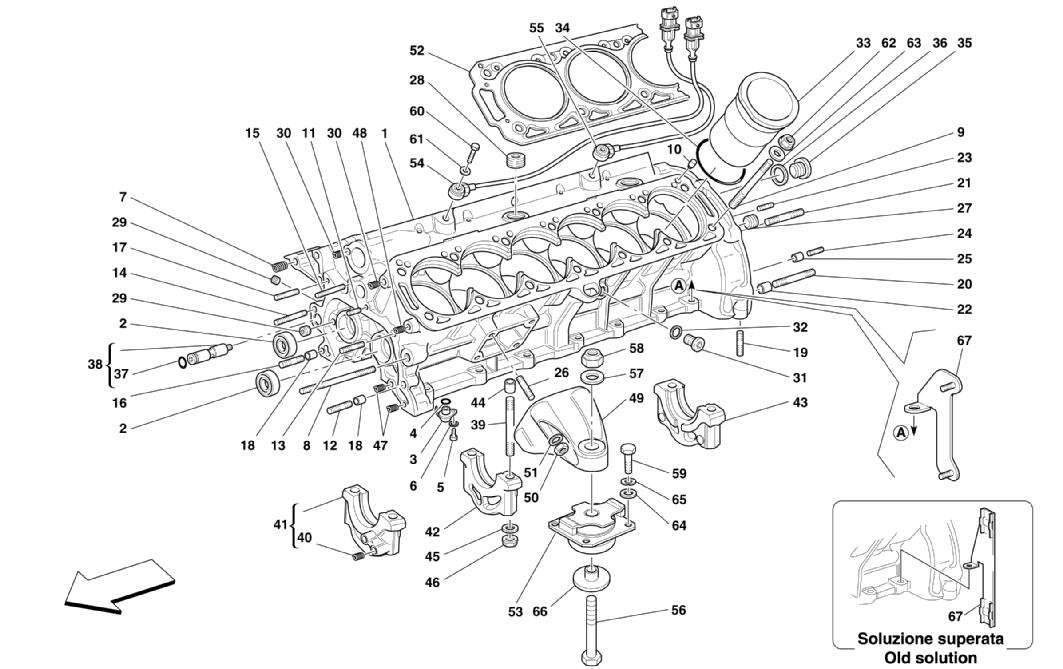

CRANKCASE

Location	Part #	Quantity*	Description	Price	Add To Cart
-	194382	1	COMPLETE CRANKCASE	$5,593.26
1	185310	1	ENGINE BASE-PLATE -With the complete crankcase		Unavailable
2	171177	2	BEARING	$24.34
3	170749	12	PISTONS COOLING NOZZLE	$62.10
4	143856	12	O.R. GASKET		Unavailable
5	14303021	12	SCREW	$2.33
6	12601074	12	WASHER		Unavailable
7	13526170	3	THREADED INSERT	$6.52
8	13972234	1	STUD		Unavailable
9	140591	28	STUD		Unavailable
10	163121	4	DOWEL	$1.77
11	13541224	1	STUD	$49.49
12	13543924	1	STUD	$2.27
13	13543524	1	STUD		Unavailable
14	13541924	1	STUD	$4.14
15	13541724	1	STUD		Unavailable
16	13543424	1	STUD		Unavailable
17	13543824	1	STUD		Superseded
18	100041	2	DOWEL	$9.91
19	13517224	2	STUD		Unavailable
20	13543924	2	STUD	$2.27
21	13543824	3	STUD		Superseded
22	102704	2	DOWEL	$4.24
23	13541024	2	STUD		Unavailable
24	13541224	2	STUD	$49.49
25	103038	2	DOWEL		Unavailable
26	13546524	8	STUD		Superseded
27	10268450	2	THREADED PLUG	$4.51
28	14325540	2	THREADED PLUG	$12.77
29	10275550	3	THREADED PLUG	$1.28
30	13525870	2	THREADED INSERT		Unavailable
31	150731	2	THREADED PLUG -Not as spare part -Replaced by 200988	$5.32
31	200988	2	THREADED PLUG		Unavailable
32	10280060	2	GASKET	$0.90
33	180387	12	CYLINDER LINER	$906.37
34	140321	12	GASKET	$9.42
35	10304640	1	THREADED PLUG	$6.11
36	10264560	1	GASKET		Unavailable
37	134232	1	O.R. GASKET		Unavailable
38	151160	1	OIL PRESSURE RELIEF VALVE		Unavailable
39	180263	14	STUD	$12.63
40	13525770	2	THREADED INSERT		Unavailable
41	185302	1	FRONT CAP -With complete crankcase		Unavailable
42	185303	5	INTERMEDIATE CAP -With complete crankcase		Unavailable
43	185304	1	REAR CAP -With complete crankcase		Unavailable
44	125317	14	DOWEL	$1.66
45	103842	14	WASHER	$3.84
46	6103841	14	NUT	$13.99
47	13525570	2	THREADED INSERT	$2.86
48	13525570	1	THREADED INSERT	$2.86
49	141892	2	ENGINE FIXING SUPPORT	$248.19
50	133988	8	NUT		Unavailable
51	11190574	8	WASHER	$0.90
52	185558	2	GASKET		Unavailable
53	192022	2	WICK BODY	$327.82
54	181809	2	SENSOR FOR FIRING -L=650	$292.30
55	182266	2	SENSOR FOR FIRING -L=400	$74.68
56	15981634	2	SCREW	$33.70
57	12601774	2	WASHER		Unavailable
58	176573	2	NUT	$2.58
59	15970634	8	SCREW		Unavailable
60	16043834	4	SCREW		Unavailable
61	11198074	4	WASHER		Unavailable
62	140664	28	NUT	$83.72
63	140603	28	WASHER	$8.24
64	14496624	8	WASHER	$0.90
65	127497	8	WASHER	$0.90
66	182141	2	WASHER	$50.02
67	212777	1	INJECTION CABLE SSUPPORTING BRACKET	$43.12

* Quantity shown indicates the number of pieces used in the diagram.
