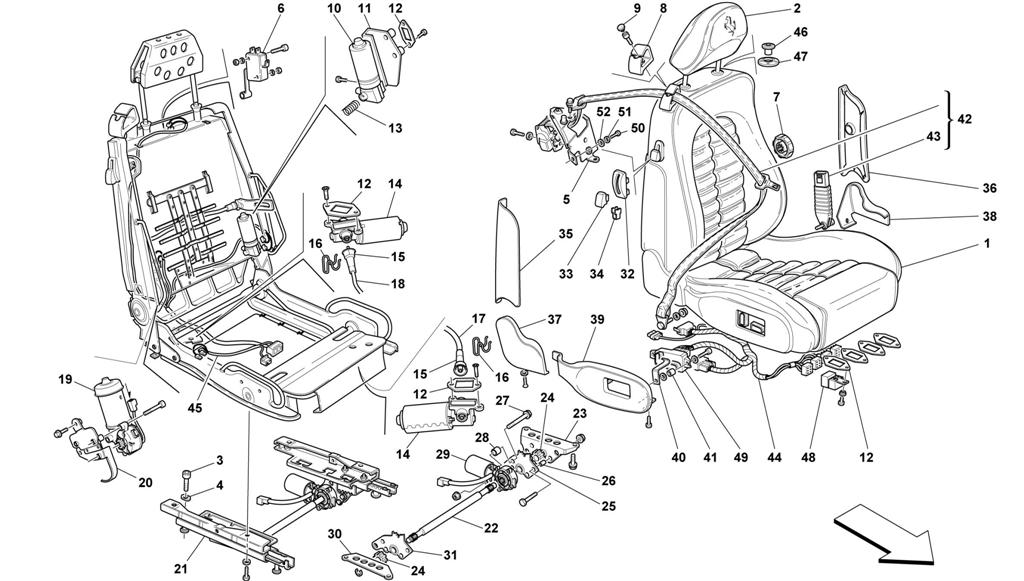

SEAT AND SAFETY BELTS -COMFORT-

Go to Split View

SEAT AND SAFETY BELTS -COMFORT-

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 640262.. *Qty: 2 COMPLETE SEAT BACK CENTRAL LINING Unavailable
Location: - Prev | Next Part: 655028.. *Qty: 1 PASSENGER CUSHION R.H. SIDE LINING Unavailable
Location: - Prev | Next Part: 655029.. *Qty: 1 DRIVER CUSHION R.H. SIDE LINING Unavailable
Location: - Prev | Next Part: 655030.. *Qty: 1 DRIVER CUSHION L.H. SIDE LINING Unavailable
Location: - Prev | Next Part: 655031.. *Qty: 1 PASSENGER CUSHION L.H. SIDE LINING Unavailable
Location: - Prev | Next Part: 655015.. *Qty: 2 COMPLETE CUSHION CENTRAL LINING Unavailable
Location: - Prev | Next Part: 655017.. *Qty: 1 L.H. SEAT BACK OUTER LINING Unavailable
Location: - Prev | Next Part: 640261.. *Qty: 1 R.H. SEAT BACK OUTER LINING Unavailable
Location: 1 Prev | Next Part: 651437.. *Qty: 1 R.H. SEAT COMPLETE WITH GUIDES -Not for RHD Unavailable
Location: 1 Prev | Next Part: 651438.. *Qty: 1 L.H. SEAT COMPLETE WITH GUIDES -Not for RHD Unavailable
Location: 1 Prev | Next Part: 652479.. *Qty: 1 R.H. SEAT COMPLETE WITH GUIDES -Valid for RHD Unavailable
Location: 1 Prev | Next Part: 652480.. *Qty: 1 L.H. SEAT COMPLETE WITH GUIDES -Valid for RHD Unavailable
Location: 2 Prev | Next Part: 640257.. *Qty: 2 UPHOLSTERED COMPLETE HEAD-REST Unavailable
Location: 2 Prev | Next Part: 655016.. *Qty: 2 LINING Unavailable
Location: 3 Prev | Next Part: 62618700 *Qty: 8 SCREW $7.58
Location: 4 Prev | Next Part: 63395300 *Qty: 8 ELASTIC PLATE Unavailable
Location: 5 Prev | Next Part: 65217600 *Qty: 1 R.H. BRACKET $51.32
Location: 5 Prev | Next Part: 65217800 *Qty: 1 L.H. BRACKET $51.32
Location: 6 Prev | Next Part: 64021200 *Qty: 2 MICRO-SWITCH $72.94
Location: 7 Prev | Next Part: 64021300 *Qty: 2 ADJUSTING KNOB $57.84
Location: 8 Prev | Next Part: 64021400 *Qty: 2 BELT-SLIDING $144.69
Location: 9 Prev | Next Part: 64021500 *Qty: 2 PLUG FOR SCREW $11.56
Location: 10 Prev | Next Part: 64021600 *Qty: 2 GEAR MOTOR $298.80
Location: 11 Prev | Next Part: 64021700 *Qty: 2 BRACKET FOR ENGINE $115.66
Location: 12 Prev | Next Part: 64021800 *Qty: 14 GASKET $33.62
Location: 13 Prev | Next Part: 64021900 *Qty: 2 SPRING $28.90
Location: 14 Prev | Next Part: 64022000 *Qty: 4 MOTOR $199.22
Location: 15 Prev | Next Part: 64022100 *Qty: 4 BOOT $20.40
Location: 16 Prev | Next Part: 64022200 *Qty: 4 SPRING $28.90
Location: 17 Prev | Next Part: 64022300 *Qty: 2 FRONT BOWDEN CABLE $108.65
Location: 18 Prev | Next Part: 64022400 *Qty: 2 REAR BOWDEN CABLE $195.45
Location: 19 Prev | Next Part: 64022500 *Qty: 2 MOTOR $249.02
Location: 20 Prev | Next Part: 64022600 *Qty: 2 BRACKET $115.66
Location: 21 Prev | Next Part: 64022800 *Qty: 1 PASSENGER SEAT SLIDE $1,595.52
Location: 21 Prev | Next Part: 64022700 *Qty: 1 DRIVER SEAT SLIDE $1,595.52
Location: 22 Prev | Next Part: 64022900 *Qty: 2 CONNECTION PIPE $84.48
Location: 23 Prev | Next Part: 64023000 *Qty: 2 R.H. BRACKET $115.66
Location: 24 Prev | Next Part: 64023100 *Qty: 2 PINION $404.85
Location: 25 Prev | Next Part: 64025800 *Qty: 2 R.H. PLATE $173.50
Location: 26 Prev | Next Part: 64023200 *Qty: 16 SPACER $12.24
Location: 27 Prev | Next Part: 64023300 *Qty: 2 PIN $13.11
Location: 28 Prev | Next Part: 64023400 *Qty: 2 SPACER $13.63
Location: 29 Prev | Next Part: 64023500 *Qty: 1 L.H. MOTOR $407.06
Location: 29 Prev | Next Part: 64023600 *Qty: 1 R.H. MOTOR $407.06
Location: 30 Prev | Next Part: 64023700 *Qty: 2 R.H. BRACKET $115.66
Location: 31 Prev | Next Part: 64023800 *Qty: 2 L.H. PLATE $173.50
Location: 32 Prev | Next Part: 64023900 *Qty: 2 FRAME $5.80
Location: 33 Prev | Next Part: 64024000 *Qty: 2 RELEASE LEVER $33.08
Location: 34 Prev | Next Part: 64024100 *Qty: 2 CLIP $2.50
Location: 35 Prev | Next Part: 655020.. *Qty: 1 LINING Unavailable
Location: 35 Prev | Next Part: 640242.. *Qty: 1 R.H. UPPER MOULDING FOR L.H. SEAT Unavailable
Location: 35 Prev | Next Part: 640243.. *Qty: 1 R.H. UPPER MOULDING FOR R.H. SEAT Unavailable
Location: 35 Prev | Next Part: 655018.. *Qty: 1 LINING Unavailable
Location: 36 Prev | Next Part: 655019.. *Qty: 1 LINING Unavailable
Location: 36 Prev | Next Part: 640244.. *Qty: 1 L.H. UPPER MOULDING FOR L.H. SEAT Unavailable
Location: 36 Prev | Next Part: 640245.. *Qty: 1 L.H. UPPER MOULDING FOR R.H. SEAT Unavailable
Location: 36 Prev | Next Part: 655021.. *Qty: 1 LINING Unavailable
Location: 37 Prev | Next Part: 640246.. *Qty: 1 R.H. LOWER MOULDING FOR L.H. SEAT Unavailable
Location: 37 Prev | Next Part: 655022.. *Qty: 1 LINING Unavailable
Location: 37 Prev | Next Part: 640247.. *Qty: 1 R.H. LOWER MOULDING FOR R.H. SEAT Unavailable
Location: 37 Prev | Next Part: 655025.. *Qty: 1 LINING Unavailable
Location: 38 Prev | Next Part: 655023.. *Qty: 1 LINING Unavailable
Location: 38 Prev | Next Part: 640248.. *Qty: 1 L.H. LOWER MOULDING FOR L.H. SEAT Unavailable
Location: 38 Prev | Next Part: 655024.. *Qty: 1 LINING Unavailable
Location: 38 Prev | Next Part: 640249.. *Qty: 1 L.H. LOWER MOULDING FOR R.H. SEAT Unavailable
Location: 39 Prev | Next Part: 640250.. *Qty: 1 L.H. COVER FOR SWITCH PANEL Unavailable
Location: 39 Prev | Next Part: 655026.. *Qty: 1 LINING FOR R.H. COVER FOR SWITCH PANEL Unavailable
Location: 39 Prev | Next Part: 640251.. *Qty: 1 R.H. COVER FOR SWITCH PANEL Unavailable
Location: 39 Prev | Next Part: 655027.. *Qty: 1 LINING FOR L.H. COVER FOR SWITCH PANEL Unavailable
Location: 40 Prev | Next Part: 64025200 *Qty: 2 UPPER BRACKET $71.28
Location: 41 Prev | Next Part: 64025300 *Qty: 2 SPACER $12.26
Location: 42 Prev | Next Part: 64929000 *Qty: 1 SAFETY BELTS ASSEMBLY -Not for USA, CDN, AUS and J $1,207.45
Location: 42 Prev | Next Part: 64929400 *Qty: 1 SAFETY BELTS ASSEMBLY -Valid for USA and CDN $556.15
Location: 42 Prev | Next Part: 65459400 *Qty: 1 SAFETY BELTS ASSEMBLY -Valid for AUS and J $656.48
Location: 44 Prev | Next Part: 172506 *Qty: 1 PASSENGER SEAT CONNECTING CABLES $578.35
Location: 44 Prev | Next Part: 172507 *Qty: 1 DRIVER SEAT CONNECTING CABLES $578.35
Location: 45 Prev | Next Part: 172508 *Qty: 2 SEAT BACK CONNECTING CABLE $993.42
Location: 46 Prev | Next Part: 64025400 *Qty: 4 BUSHING $27.99
Location: 47 Prev | Next Part: 64025500 *Qty: 4 WASHER $13.44
Location: 48 Prev | Next Part: 64025600 *Qty: 8 RELAY $45.60
Location: 49 Prev | Next Part: 65084600 *Qty: 1 R.H. SEAT SWITCH PANEL Unavailable
Location: 49 Prev | Next Part: 65084700 *Qty: 1 L.H. SEAT SWITCH PANEL $542.32
Location: 50 Prev | Next Part: 16043434 *Qty: 6 SCREW Unavailable
Location: 51 Prev | Next Part: 11194074 *Qty: 6 WASHER $0.90
Location: 52 Prev | Next Part: 12646724 *Qty: 6 WASHER Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
