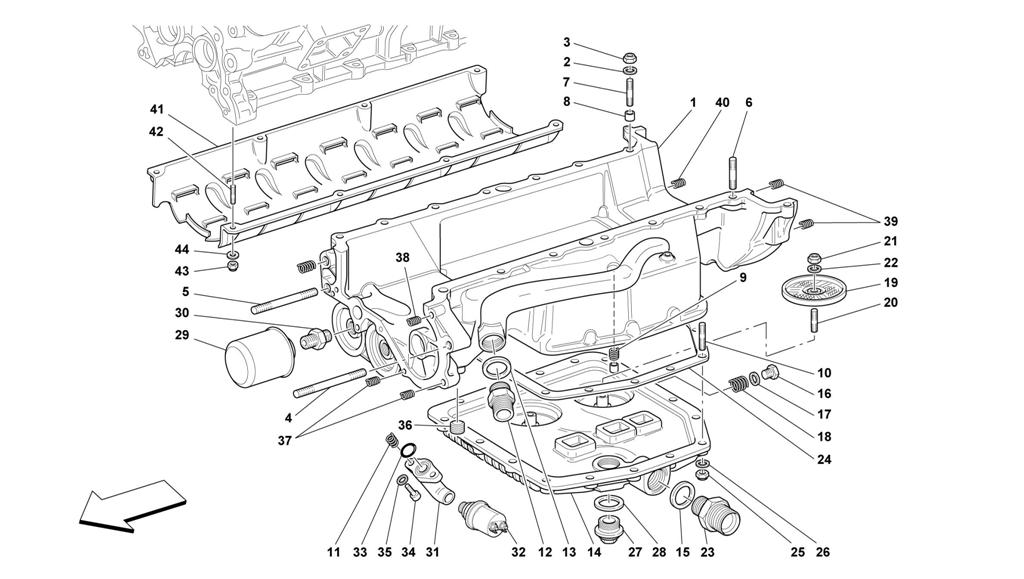

LUBRICATION - OIL SUMPS AND FILTERS

Go to Split View

LUBRICATION - OIL SUMPS AND FILTERS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 172465 *Qty: 1 COMPLETE OIL SUMP $1,577.86
Location: 1 Prev | Next Part: 165757 *Qty: 1 OIL SUMP -With complete oil sump Unavailable
Location: 2 Prev | Next Part: 12601374 *Qty: 14 WASHER Unavailable
Location: 3 Prev | Next Part: 101139 *Qty: 14 NUT $0.90
Location: 4 Prev | Next Part: 13971134 *Qty: 1 STUD $3.05
Location: 5 Prev | Next Part: 153423 *Qty: 1 STUD $10.58
Location: 6 Prev | Next Part: 13543424 *Qty: 12 STUD Unavailable
Location: 7 Prev | Next Part: 13543624 *Qty: 2 STUD Unavailable
Location: 8 Prev | Next Part: 100041 *Qty: 2 CENTERING DOWEL $8.31
Location: 9 Prev | Next Part: 13525770 *Qty: 4 THREADED INSERT Unavailable
Location: 10 Prev | Next Part: 13541224 *Qty: 16 STUD $0.90
Location: 11 Prev | Next Part: 13525470 *Qty: 2 THREADED INSERT Unavailable
Location: 12 Prev | Next Part: 145085 *Qty: 1 UNION $22.87
Location: 13 Prev | Next Part: 144485 *Qty: 1 GASKET Unavailable
Location: 14 Prev | Next Part: 154602 *Qty: 1 SUMP COVER $2,312.05
Location: 15 Prev | Next Part: 144485 *Qty: 1 GASKET Unavailable
Location: 16 Prev | Next Part: 153903 *Qty: 1 OIL OUTLET PLUG $15.82
Location: 17 Prev | Next Part: 10280060 *Qty: 1 GASKET $0.90
Location: 18 Prev | Next Part: 13526570 *Qty: 1 THREADED INSERT $0.94
Location: 19 Prev | Next Part: 125308 *Qty: 2 OIL SUCTION FILTER $857.39
Location: 20 Prev | Next Part: 13540724 *Qty: 2 STUD Unavailable
Location: 21 Prev | Next Part: 15896214 *Qty: 2 NUT Unavailable
Location: 22 Prev | Next Part: 11197771 *Qty: 2 WASHER Superseded
Location: 23 Prev | Next Part: 138149 *Qty: 1 UNION $52.70
Location: 24 Prev | Next Part: 141960 *Qty: 1 GASKET $47.62
Location: 25 Prev | Next Part: 102741 *Qty: 16 NUT $0.90
Location: 26 Prev | Next Part: 12601274 *Qty: 16 WASHER $0.90
Location: 27 Prev | Next Part: 156144 *Qty: 1 THREADED PLUG $136.67
Location: 28 Prev | Next Part: 144485 *Qty: 1 GASKET Unavailable
Location: 29 Prev | Next Part: 206166 *Qty: 2 OIL FILTER CARTRIDGE -As an alternative $28.00
Location: 30 Prev | Next Part: 141707 *Qty: 2 UNION $25.11
Location: 31 Prev | Next Part: 143866 *Qty: 1 SUPPORT $377.83
Location: 32 Prev | Next Part: 135940 *Qty: 1 OIL PRESSURE TRANSMITTER $180.85
Location: 33 Prev | Next Part: 132248 *Qty: 1 O.R. GASKET Unavailable
Location: 34 Prev | Next Part: 14305324 *Qty: 2 SCREW Unavailable
Location: 35 Prev | Next Part: 11197771 *Qty: 2 WASHER Superseded
Location: 36 Prev | Next Part: 10269850 *Qty: 2 PLUG $2.06
Location: 37 Prev | Next Part: 13525870 *Qty: 2 THREADED INSERT $3.06
Location: 38 Prev | Next Part: 13525570 *Qty: 4 THREADED INSERT $2.86
Location: 39 Prev | Next Part: 13525870 *Qty: 2 THREADED INSERT $3.06
Location: 40 Prev | Next Part: 13525570 *Qty: 4 THREADED INSERT $2.86
Location: 41 Prev | Next Part: 167016 *Qty: 1 ANTI-SHAKING OIL PANEL $25.76
Location: 42 Prev | Next Part: 13540824 *Qty: 8 STUD Unavailable
Location: 43 Prev | Next Part: 14048115 *Qty: 8 NUT Superseded
Location: 44 Prev | Next Part: 14496424 *Qty: 8 WASHER Superseded

* Quantity shown indicates the number of pieces used in the diagram.
