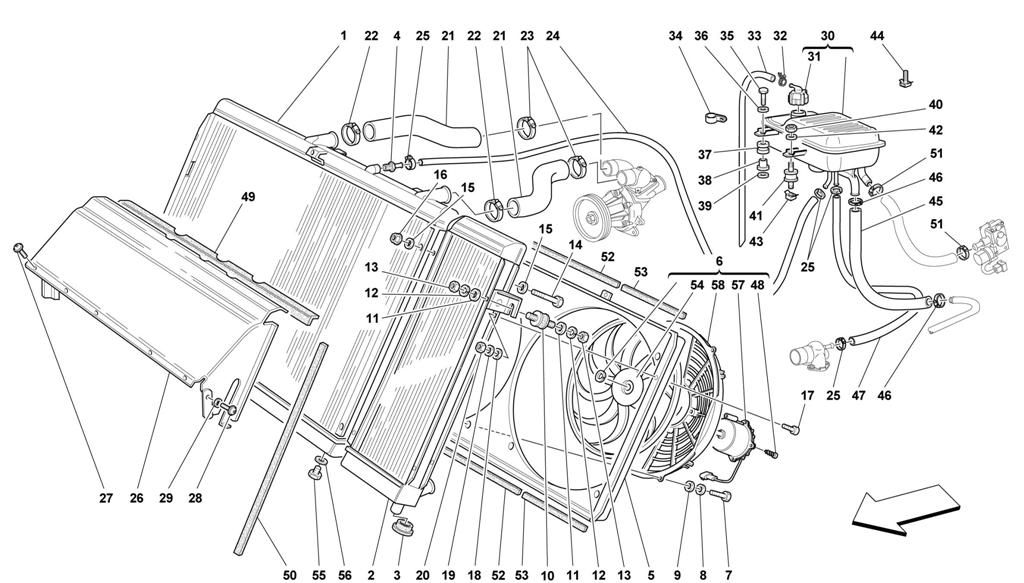

COOLING SYSTEM - RADIATOR AND NOURICE

Go to Split View

COOLING SYSTEM - RADIATOR AND NOURICE

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 171772 *Qty: 1 COMPLETE WATER RADIATOR $4,305.40
Location: 2 Prev | Next Part: 168213 *Qty: 1 COMPLETE OIL RADIATOR $1,409.20
Location: 3 Prev | Next Part: 138926 *Qty: 2 RUBBER $4.95
Location: 4 Prev | Next Part: 157160 *Qty: 1 UNION (METRIC THREAD) Call
Location: 4 Prev | Next Part: 174220 *Qty: 1 UNION (THREAD INCHES) $125.13
Location: 5 Prev | Next Part: 165134 *Qty: 1 HOOD FOR ELECTROFANS $222.28
Location: 6 Prev | Next Part: 160910 *Qty: 2 COMPLETE ELECTROFAN $639.38
Location: 7 Prev | Next Part: 10977824 *Qty: 8 SCREW $0.90
Location: 8 Prev | Next Part: 127493 *Qty: 8 WASHER Superseded
Location: 9 Prev | Next Part: 12637824 *Qty: 8 WASHER $0.90
Location: 10 Prev | Next Part: 157650 *Qty: 2 FIXING PAD $13.03
Location: 11 Prev | Next Part: 12646724 *Qty: 4 WASHER $0.90
Location: 12 Prev | Next Part: 127496 *Qty: 4 WASHER $0.90
Location: 13 Prev | Next Part: 133989 *Qty: 4 NUT $0.90
Location: 14 Prev | Next Part: 15201024 *Qty: 1 SCREW $0.90
Location: 15 Prev | Next Part: 12637824 *Qty: 8 WASHER $0.90
Location: 16 Prev | Next Part: 14058311 *Qty: 1 NUT $0.90
Location: 17 Prev | Next Part: 14305224 *Qty: 4 SCREW $0.90
Location: 18 Prev | Next Part: 12648224 *Qty: 4 WASHER $0.90
Location: 19 Prev | Next Part: 127494 *Qty: 4 WASHER $0.90
Location: 20 Prev | Next Part: 15896214 *Qty: 4 NUT $0.90
Location: 21 Prev | Next Part: 179037 *Qty: 2 SLEEVE $211.77
Location: 22 Prev | Next Part: 13000690 *Qty: 2 SCREW COLLAR $0.90
Location: 23 Prev | Next Part: 13000690 *Qty: 2 SCREW COLLAR $0.90
Location: 24 Prev | Next Part: 171668 *Qty: 1 VENT PIPE FROM RADIATOR TO EXPANSION TANK -Not for RHD $43.95
Location: 24 Prev | Next Part: 167465 *Qty: 1 VENT PIPE FROM RADIATOR TO EXPANSION TANK -Valid for RHD $27.50
Location: 25 Prev | Next Part: 12179690 *Qty: 4 SCREW COLLAR Call
Location: 26 Prev | Next Part: 65206300 *Qty: 1 AIR CONVEYOR $893.12
Location: 27 Prev | Next Part: 62940900 *Qty: 9 SCREW $1.57
Location: 28 Prev | Next Part: 14305287 *Qty: 1 SCREW Call
Location: 29 Prev | Next Part: 127496 *Qty: 1 WASHER $0.90
Location: 30 Prev | Next Part: 171974 *Qty: 1 COMPLETE FUEL CANISTER -Not for RHD $559.68
Location: 30 Prev | Next Part: 171327 *Qty: 1 COMPLETE FUEL CANISTER -Valid for RHD $338.89
Location: 31 Prev | Next Part: 145030 *Qty: 1 PLUG $49.75
Location: 32 Prev | Next Part: 13423171 *Qty: 1 ELASTIC COLLAR $0.90
Location: 33 Prev | Next Part: 156082 *Qty: 1 VENT PIPE $44.33
Location: 34 Prev | Next Part: 156083 *Qty: 1 CLIP $0.90
Location: 35 Prev | Next Part: 10902624 *Qty: 1 SCREW $0.90
Location: 36 Prev | Next Part: 127494 *Qty: 4 WASHER $0.90
Location: 37 Prev | Next Part: 103549 *Qty: 2 CABLE GROMMET $1.37
Location: 38 Prev | Next Part: 149707 *Qty: 2 SPACER $1.23
Location: 39 Prev | Next Part: 12643724 *Qty: 2 WASHER Superseded
Location: 40 Prev | Next Part: 15896214 *Qty: 4 NUT $0.90
Location: 41 Prev | Next Part: 102947 *Qty: 1 ANTIVIBRATION PAD $15.94
Location: 42 Prev | Next Part: 12643724 *Qty: 2 WASHER Superseded
Location: 43 Prev | Next Part: 60758600 *Qty: 2 NUT WITH CAGE $0.90
Location: 44 Prev | Next Part: 14662995 *Qty: 1 SCREW WITH CAGE $1.83
Location: 45 Prev | Next Part: 194911 *Qty: 1 RUBBER PIPE FROM EXPANSION TANK TO ENGINE $72.32
Location: 46 Prev | Next Part: 13000490 *Qty: 2 SCREW COLLAR Superseded
Location: 47 Prev | Next Part: 155618 *Qty: 1 RUBBER PIPE FROM ENGINE TO EXPANSION TANK -Not for RHD $40.51
Location: 47 Prev | Next Part: 157744 *Qty: 1 RUBBER PIPE FROM ENGINE TO EXPANSION TANK -Valid for RHD Call
Location: 48 Prev | Next Part: 166550 *Qty: 8 SCREW $9.85
Location: 49 Prev | Next Part: 63762800 *Qty: 1 UPPER GASKET Call
Location: 50 Prev | Next Part: 63882200 *Qty: 1 SIDE GASKET $0.90
Location: 51 Prev | Next Part: 13000490 *Qty: 2 SCREW COLLAR Superseded
Location: 52 Prev | Next Part: 169382 *Qty: 2 GASKET $1.28
Location: 53 Prev | Next Part: 168346 *Qty: 2 GASKET $0.90
Location: 54 Prev | Next Part: 164096 *Qty: 2 BLOWER Call
Location: 55 Prev | Next Part: 174538 *Qty: 1 PLUG $16.76
Location: 56 Prev | Next Part: 174539 *Qty: 1 O.R. GASKET $13.18
Location: 57 Prev | Next Part: 153174 *Qty: 2 MOTOR Call
Location: 58 Prev | Next Part: 152920 *Qty: 2 AIR CONVEYOR $126.52

* Quantity shown indicates the number of pieces used in the diagram.
