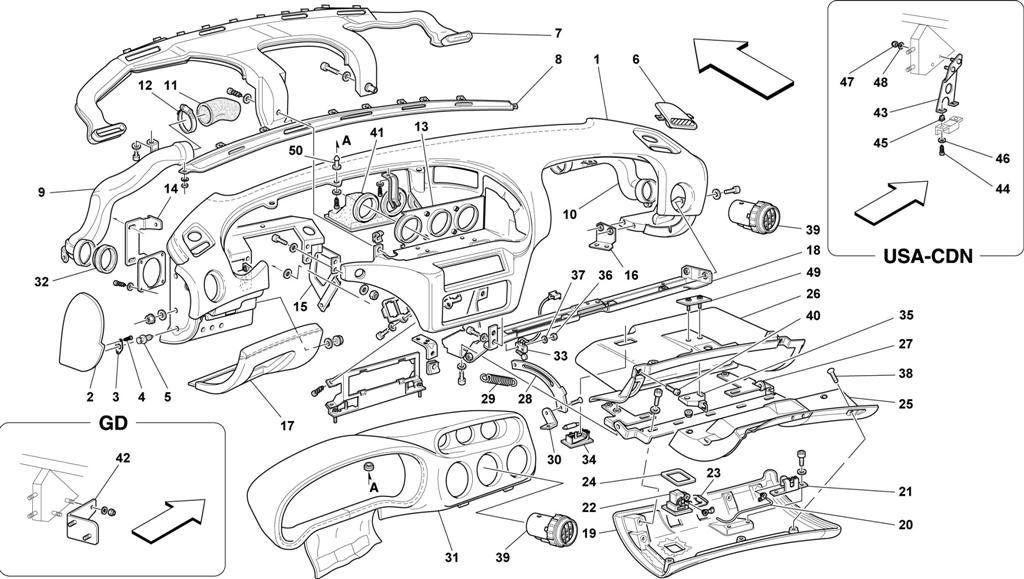

INSTRUMENTS PANEL

Go to Split View

INSTRUMENTS PANEL

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 647583.. *Qty: 1 COVERED DASHBOARD WITH INSTRUMENTS -Not for RHD Unavailable
Location: 1 Prev | Next Part: 651138.. *Qty: 1 COVERED DASHBOARD WITH INSTRUMENTS -Valid for RHD Unavailable
Location: 2 Prev | Next Part: 647665.. *Qty: 1 L.H. LATERAL COVER Unavailable
Location: 2 Prev | Next Part: 647668.. *Qty: 1 R.H. LATERAL COVER Unavailable
Location: 3 Prev | Next Part: 64712800 *Qty: 4 PLATE $1.90
Location: 4 Prev | Next Part: 15914877 *Qty: 8 SCREW $0.90
Location: 5 Prev | Next Part: 14188181 *Qty: 4 RETAINER $0.90
Location: 6 Prev | Next Part: 63204200 *Qty: 1 R.H. PLATE $94.92
Location: 6 Prev | Next Part: 63204300 *Qty: 1 L.H. PLATE $94.92
Location: 7 Prev | Next Part: 64707400 *Qty: 1 AIR DUCTING -Not for RHD $770.92
Location: 7 Prev | Next Part: 65024100 *Qty: 1 AIR DUCTING -Valid for RHD $770.95
Location: 8 Prev | Next Part: 63202100 *Qty: 1 LOWER ENCLOSURE Unavailable
Location: 9 Prev | Next Part: 65212200 *Qty: 1 L.H. AIR DUCTING -Valid for RHD $21.78
Location: 9 Prev | Next Part: 64706200 *Qty: 1 L.H. AIR DUCTING -Not for RHD $27.94
Location: 10 Prev | Next Part: 64706300 *Qty: 1 R.H. AIR DUCTING -Not for RHD $27.94
Location: 10 Prev | Next Part: 65212100 *Qty: 1 R.H. AIR DUCTING -Valid for RHD $21.78
Location: 11 Prev | Next Part: 65216600 *Qty: 1 R.H. SLEEVE -Valid for RHD $64.26
Location: 11 Prev | Next Part: 65217300 *Qty: 1 L.H. SLEEVE -Valid for RHD $61.45
Location: 11 Prev | Next Part: 64758100 *Qty: 1 R.H. SLEEVE -Not for RHD $56.72
Location: 11 Prev | Next Part: 64758200 *Qty: 1 L.H. SLEEVE -Not for RHD $55.85
Location: 12 Prev | Next Part: 13000890 *Qty: 2 SCREW COLLAR $1.22
Location: 13 Prev | Next Part: 64719500 *Qty: 1 AIR DUCT CONNECTION Unavailable
Location: 14 Prev | Next Part: 64701500 *Qty: 1 DASHBOARD R.H. LATERAL FIXING BRACKET $283.52
Location: 14 Prev | Next Part: 64701700 *Qty: 1 DASHBOARD L.H. LATERAL FIXING BRACKET $283.52
Location: 15 Prev | Next Part: 64720000 *Qty: 1 BRACKET -Not for RHD $189.94
Location: 15 Prev | Next Part: 65049700 *Qty: 1 BRACKET -Valid for RHD $209.49
Location: 16 Prev | Next Part: 65024700 *Qty: 1 R.H. BRACKET -Valid for RHD $67.05
Location: 16 Prev | Next Part: 64703200 *Qty: 1 R.H. BRACKET -Not for RHD $20.65
Location: 17 Prev | Next Part: 650250.. *Qty: 1 R.H. LOWER COVER -Valid for RHD Unavailable
Location: 17 Prev | Next Part: 647591.. *Qty: 1 L.H. LOWER COVER -Not for RHD Unavailable
Location: 18 Prev | Next Part: 65049400 *Qty: 1 R.H. SIDE BRACKET -Valid for RHD $349.15
Location: 18 Prev | Next Part: 64588000 *Qty: 1 L.H. SIDE BRACKET -Not for RHD $195.52
Location: 19 Prev | Next Part: 650498.. *Qty: 1 GLOVE BOX SHUTTER -Valid for RHD Unavailable
Location: 19 Prev | Next Part: 645882.. *Qty: 1 GLOVE BOX SHUTTER -Not for RHD Unavailable
Location: 20 Prev | Next Part: 64653900 *Qty: 1 TIE ROD -Not for RHD $22.33
Location: 20 Prev | Next Part: 65166800 *Qty: 1 TIE ROD -Valid for RHD $47.49
Location: 21 Prev | Next Part: 63768800 *Qty: 1 GLOVE BOX LOCK $419.16
Location: 22 Prev | Next Part: 64926500 *Qty: 1 PUSH BUTTON Unavailable
Location: 23 Prev | Next Part: 63769000 *Qty: 1 FORK $5.59
Location: 24 Prev | Next Part: 63768900 *Qty: 1 PLATE $1.37
Location: 25 Prev | Next Part: 65024900 *Qty: 1 DOOR FRAME -Valid for RHD $184.35
Location: 25 Prev | Next Part: 64653700 *Qty: 1 DOOR FRAME -Not for RHD $173.19
Location: 26 Prev | Next Part: 65103900 *Qty: 1 DASHBOARD DRAWER -Valid for RHD Unavailable
Location: 26 Prev | Next Part: 64767600 *Qty: 1 DASHBOARD DRAWER -Not for RHD $312.85
Location: 27 Prev | Next Part: 65026800 *Qty: 1 BOX HINGE -Valid for RHD $324.01
Location: 27 Prev | Next Part: 64653200 *Qty: 1 BOX HINGE -Not for RHD $142.46
Location: 28 Prev | Next Part: 63765700 *Qty: 1 LEVER $13.51
Location: 29 Prev | Next Part: 63876700 *Qty: 1 DOOR SPRING $5.59
Location: 30 Prev | Next Part: 65024600 *Qty: 1 BRACKET -Valid for RHD $41.88
Location: 30 Prev | Next Part: 64580800 *Qty: 1 BRACKET -Not for RHD $73.13
Location: 31 Prev | Next Part: 647595.. *Qty: 1 COVERED DASH BOARD -Not for RHD Unavailable
Location: 31 Prev | Next Part: 651043.. *Qty: 1 COVERED DASH BOARD -Valid for RHD Unavailable
Location: 31 Prev | Next Part: 647596.. *Qty: 1 COVERED DASH BOARD -Not for RHD -Not as spare part now -Replaced by 647595.. Unavailable
Location: 32 Prev | Next Part: 62188300 *Qty: 2 GASKET Unavailable
Location: 33 Prev | Next Part: 173939 *Qty: 1 MICRO-SWITCH $39.15
Location: 34 Prev | Next Part: 139517 *Qty: 1 ROOF LIGHT $14.27
Location: 35 Prev | Next Part: 65258900 *Qty: 1 STRIKER $47.28
Location: 36 Prev | Next Part: 61524300 *Qty: 2 NUT $0.90
Location: 37 Prev | Next Part: 61524200 *Qty: 4 WASHER $0.90
Location: 38 Prev | Next Part: 65212000 *Qty: 3 SCREW $1.17
Location: 39 Prev | Next Part: 63352600 *Qty: 5 AIR OPENING $235.93
Location: 40 Prev | Next Part: 65361300 *Qty: 2 PIN $11.18
Location: 41 Prev | Next Part: 65024300 *Qty: 1 UNION FROM EVAPORATOR UNIT TO AIR OPENING -Valid for RHD $75.40
Location: 41 Prev | Next Part: 64587400 *Qty: 1 UNION FROM EVAPORATOR UNIT TO AIR OPENING -Not for RHD $73.54
Location: 42 Prev | Next Part: 171800 *Qty: 1 INTERMEDIATE BRACKET -Valid for RHD $29.85
Location: 43 Prev | Next Part: 168961 *Qty: 1 OBDII CONNECTOR FIXING BRACKET -Valid for USA and CDN Unavailable
Location: 44 Prev | Next Part: 15688170 *Qty: 2 SCREW -Valid for USA and CDN $0.90
Location: 45 Prev | Next Part: 14202580 *Qty: 2 BLOCK -Valid for USA and CDN $0.90
Location: 46 Prev | Next Part: 10519224 *Qty: 2 WASHER -Valid for USa and CDN $0.90
Location: 47 Prev | Next Part: 113647 *Qty: 2 NUT -Valid for USA and CDN $0.90
Location: 48 Prev | Next Part: 12637824 *Qty: 2 WASHER -Valid for USA and CDN $0.90
Location: 49 Prev | Next Part: 63765300 *Qty: 1 STRIKER FIXING PLATE $4.11
Location: 50 Prev | Next Part: 65879900 *Qty: 3 PIN $19.76

* Quantity shown indicates the number of pieces used in the diagram.
