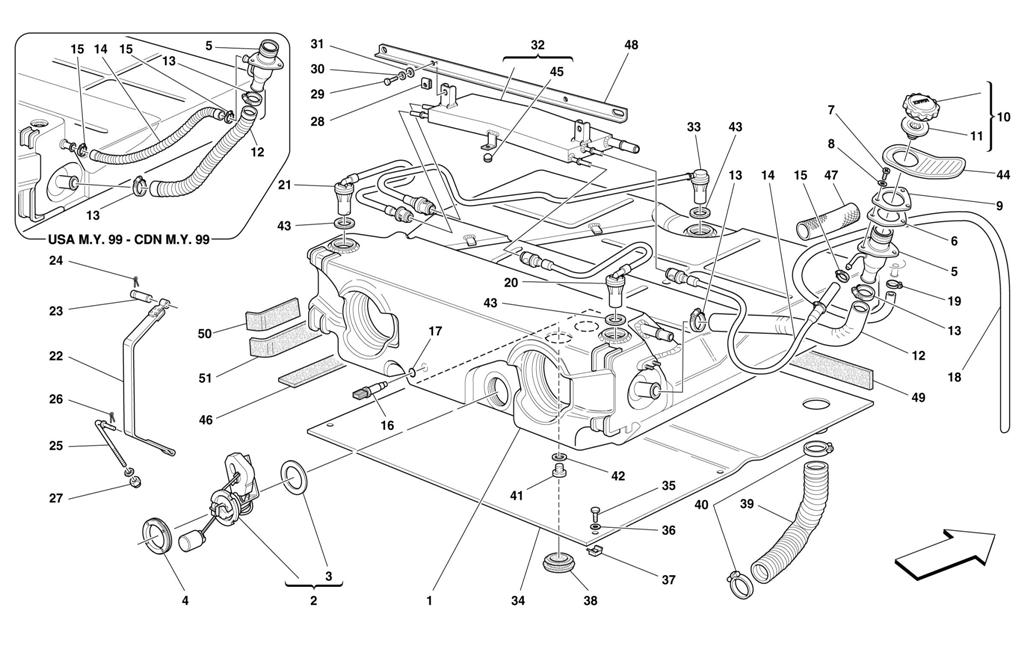

FUEL TANK -VALID FOR USA AND CDN M.Y. 99 & 2000-

Go to Split View

FUEL TANK -VALID FOR USA AND CDN M.Y. 99 & 2000-

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 179178 *Qty: 1 FUEL TANK -Valid for USA M.Y. 99 and CDN M.Y. 99 $2,793.29
Location: 1 Prev | Next Part: 186103 *Qty: 1 FUEL TANK -Valid for USA M.Y. 2000 and CDN M.Y. 2000 $4,282.66
Location: 1 Prev | Next Part: 181926 *Qty: 1 FUEL TANK -Valid for USA M.Y. 2000 and CDN M.Y. 2000 -Not as spare part now -Replaced by 186103 Call
Location: 2 Prev | Next Part: 168238 *Qty: 1 COMPLETE FUEL LEVEL INDICATOR CONTROL Call
Location: 3 Prev | Next Part: 154802 *Qty: 1 GASKET $27.94
Location: 4 Prev | Next Part: 121435 *Qty: 1 RING NUT $132.79
Location: 5 Prev | Next Part: 181932 *Qty: 1 FILLER -Valid for USA M.Y. 2000 and CDN M.Y. 2000 $255.06
Location: 5 Prev | Next Part: 171278 *Qty: 1 FILLER -Valid for USA M.Y. 99 and CDN M.Y. 99 $234.41
Location: 6 Prev | Next Part: 174095 *Qty: 1 GASKET $5.52
Location: 7 Prev | Next Part: 13276470 *Qty: 3 SCREW $0.90
Location: 8 Prev | Next Part: 12601274 *Qty: 3 WASHER $0.90
Location: 9 Prev | Next Part: 174093 *Qty: 1 FLANGE $9.09
Location: 10 Prev | Next Part: 180321 *Qty: 1 PLUG Call
Location: 11 Prev | Next Part: 180119 *Qty: 1 GASKET Superseded
Location: 12 Prev | Next Part: 181977 *Qty: 1 FILLER-TANK CONNECTING PIPE -Valid for USA M.Y. 2000 and CDN M.Y. 2000 $316.51
Location: 12 Prev | Next Part: 167131 *Qty: 1 FILLER-TANK CONNECTING PIPE -Valid for USA M.Y. 99 and CDN M.Y. 99 Call
Location: 13 Prev | Next Part: 170127 *Qty: 2 SCREW COLLAR $1.00
Location: 14 Prev | Next Part: 182265 *Qty: 1 VENT PIPE FROM VAPOR SEPARATOR TO FILLER -Valid for USA M.Y. 2000 and CDN M.Y. 2000 $107.62
Location: 14 Prev | Next Part: 165132 *Qty: 1 VENT PIPE FROM TANK TO FILLER -Valid for USA M.Y. 99 and CDN M.Y. 99 $29.33
Location: 15 Prev | Next Part: 13432070 *Qty: 1 COLLAR FOR SLEEVE -Valid for USA M.Y. 2000 and CDN M.Y. 2000 $0.90
Location: 15 Prev | Next Part: 164015 *Qty: 2 SCREW COLLAR -Valid for USA M.Y. 99 and CDN M.Y. 99 $0.90
Location: 16 Prev | Next Part: 125769 *Qty: 1 TEMPERATURE SENSOR $27.61
Location: 17 Prev | Next Part: 179321 *Qty: 1 GASKET $13.41
Location: 18 Prev | Next Part: 179851 *Qty: 1 RUBBER HOSE $26.87
Location: 19 Prev | Next Part: 161490 *Qty: 1 SCREW COLLAR $2.16
Location: 20 Prev | Next Part: 179191 *Qty: 1 R.H. VALVE COMPLETED WITH PIPING -Valid for USA M.Y. 99 and CDN M.Y. 99 $197.55
Location: 20 Prev | Next Part: 181936 *Qty: 1 R.H. VALVE COMPLETED WITH PIPING -Valid for USA M.Y. 2000 and CDN M.Y. 2000 $188.55
Location: 21 Prev | Next Part: 179191 *Qty: 1 R.H. VALVE COMPLETED WITH PIPING -Valid for USA M.Y. 99 and CDN M.Y. 99 $197.55
Location: 21 Prev | Next Part: 181935 *Qty: 1 L.H. VALVE COMPLETED WITH PIPING -Valid for USA M.Y. 2000 and CDN M.Y. 2000 $188.55
Location: 22 Prev | Next Part: 181692 *Qty: 2 FUEL TANK FASTENER -Valid for USA M.Y. 2000 and CDN M.Y. 2000 $111.73
Location: 22 Prev | Next Part: 172340 *Qty: 2 FUEL TANK FASTENER -Valid for USA M.Y. 99 and CDN M.Y. 99 $78.20
Location: 23 Prev | Next Part: 103447 *Qty: 2 PIN $2.86
Location: 24 Prev | Next Part: 10796440 *Qty: 4 SPLIT PIN $0.90
Location: 25 Prev | Next Part: 127529 *Qty: 2 THREADED TIE ROD $101.70
Location: 26 Prev | Next Part: 10796440 *Qty: 4 SPLIT PIN $0.90
Location: 27 Prev | Next Part: 104030 *Qty: 2 NUT $0.90
Location: 28 Prev | Next Part: 62766300 *Qty: 2 CLIP $0.90
Location: 29 Prev | Next Part: 10902124 *Qty: 2 SCREW -Valid for USA M.Y. 2000 and CDN M.Y. 2000 $0.90
Location: 29 Prev | Next Part: 10902224 *Qty: 2 SCREW -Valid for USA M.Y. 99 and CDN M.Y. 99 $0.90
Location: 30 Prev | Next Part: 127494 *Qty: 2 WASHER -Valid for USA M.Y. 99 and CDN M.Y. 99 $0.90
Location: 30 Prev | Next Part: 12639724 *Qty: 2 WASHER -Valid for USA M.Y. 2000 and CDN M.Y. 2000 $0.90
Location: 31 Prev | Next Part: 10519424 *Qty: 2 WASHER -Valid for USA M.Y. 99 and CDN M.Y. 99 Call
Location: 31 Prev | Next Part: 127494 *Qty: 2 WASHER -Valid for USA M.Y. 99 and CDN M.Y. 99 $0.90
Location: 32 Prev | Next Part: 178866 *Qty: 1 DISAREATOR -Valid for USA M.Y. 99 and CDN M.Y. 99 Call
Location: 32 Prev | Next Part: 181931 *Qty: 1 DISAREATOR -Valid for USA M.Y. 2000 and CDN M.Y. 2000 $317.06
Location: 33 Prev | Next Part: 180469 *Qty: 1 VALVE COMPLETED WITH PIPING -Valid for USA M.Y. 2000 and CDN M.Y. 2000 Call
Location: 33 Prev | Next Part: 169937 *Qty: 1 VALVE COMPLETED WITH PIPING -Valid for USA M.Y. 99 and CDN M.Y. 99 $199.61
Location: 34 Prev | Next Part: 65083800 *Qty: 1 UNDER TANK SHIELD $698.33
Location: 35 Prev | Next Part: 10902424 *Qty: 4 SCREW $0.90
Location: 36 Prev | Next Part: 12643724 *Qty: 4 WASHER Superseded
Location: 37 Prev | Next Part: 60758600 *Qty: 4 NUT WITH CAGE $0.90
Location: 38 Prev | Next Part: 64783600 *Qty: 1 RUBBER PLUG $6.41
Location: 39 Prev | Next Part: 65084500 *Qty: 2 AIR DELIVERY TUBE TO TANK $68.67
Location: 40 Prev | Next Part: 13000790 *Qty: 4 SCREW COLLAR $0.90
Location: 41 Prev | Next Part: 148045 *Qty: 1 THREADED PLUG $19.59
Location: 42 Prev | Next Part: 123622 *Qty: 1 O.R. GASKET $1.67
Location: 43 Prev | Next Part: 195049 *Qty: 3 GASKET $4.02
Location: 44 Prev | Next Part: 62943200 *Qty: 1 RUBBER PROTECTION $23.73
Location: 45 Prev | Next Part: 14622387 *Qty: 1 PLUG -Valid for USA M.Y. 2000 and CDN M.Y. 2000 $3.47
Location: 46 Prev | Next Part: 156682 *Qty: 2 LOWER THICKNESS $11.62
Location: 47 Prev | Next Part: 171163 *Qty: 1 PROTECTION SHEATH -Valid for USA M.Y. 2000 and CDN M.Y. 2000 Call
Location: 48 Prev | Next Part: 183850 *Qty: 1 BRACKET -Valid for USA M.Y. 2000 and CDN M.Y. 2000 $26.63
Location: 49 Prev | Next Part: 167025 *Qty: 1 FRONT THICKNESS $6.81
Location: 50 Prev | Next Part: 183685 *Qty: 2 REAR THICKNESS -Valid for USA M.Y. 2000 and CDN M.Y. 2000 $5.33
Location: 51 Prev | Next Part: 157411 *Qty: 2 REAR THICKNESS -Valid for USA M.Y. 99 and CDN M.Y. 99 $2.28
Location: 51 Prev | Next Part: 183387 *Qty: 2 REAR THICKNESS -Valid for USA M.Y. 2000 and CDN M.Y. 2000 Call

* Quantity shown indicates the number of pieces used in the diagram.
