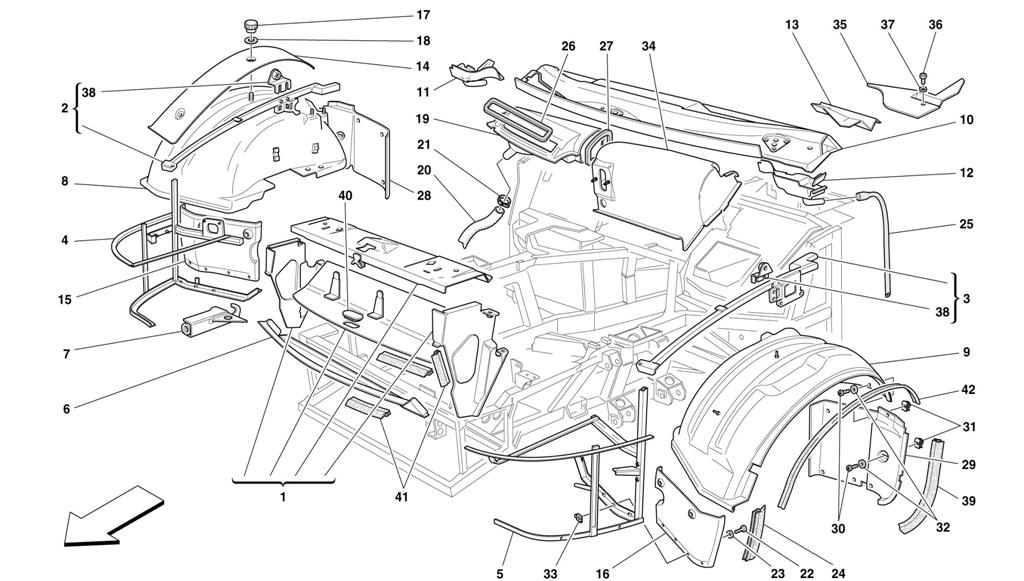

FRONT STRUCTURES AND COMPONENTS

Go to Split View

FRONT STRUCTURES AND COMPONENTS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 64716800 *Qty: 1 COMPLETE FRONT CROSS MEMBER Unavailable
Location: 2 Prev | Next Part: 64945600 *Qty: 1 R.H. SIDE FRAME -Not for RHD $1,306.20
Location: 2 Prev | Next Part: 65219500 *Qty: 1 R.H. SIDE FRAME -Valid for RHD $2,614.39
Location: 3 Prev | Next Part: 64945700 *Qty: 1 L.H. SIDE FRAME -Not for RHD $900.47
Location: 3 Prev | Next Part: 65219600 *Qty: 1 L.H. SIDE FRAME -Valid for RHD $1,444.12
Location: 4 Prev | Next Part: 65177700 *Qty: 1 R.H. FRONT FRAME $772.63
Location: 5 Prev | Next Part: 65177800 *Qty: 1 L.H. FRONT FRAME $772.63
Location: 6 Prev | Next Part: 64558400 *Qty: 1 LOWER CONVEYOR $295.47
Location: 7 Prev | Next Part: 64943000 *Qty: 1 TOW HOOK BRACKET $260.77
Location: 8 Prev | Next Part: 64560200 *Qty: 1 R.H. FRONT WHEELHOUSE -Not for RHD Unavailable
Location: 8 Prev | Next Part: 65210600 *Qty: 1 R.H. FRONT WHEELHOUSE -Valid for RHD Unavailable
Location: 9 Prev | Next Part: 64560300 *Qty: 1 L.H. FRONT WHEELHOUSE -Not for RHD Unavailable
Location: 9 Prev | Next Part: 65219400 *Qty: 1 L.H. FRONT WHEELHOUSE -Valid for RHD $583.21
Location: 10 Prev | Next Part: 64787200 *Qty: 1 WINDSHIELD LOWER CROSS MEMBER -Not for RHD $324.50
Location: 10 Prev | Next Part: 65210700 *Qty: 1 WINDSHIELD LOWER CROSS MEMBER -Valid for RHD $1,332.52
Location: 11 Prev | Next Part: 64789400 *Qty: 1 R.H. COMPLETE FRONT INSERT $77.23
Location: 12 Prev | Next Part: 64789500 *Qty: 1 L.H. COMPLETE FRONT INSERT $77.23
Location: 13 Prev | Next Part: 64561700 *Qty: 1 R.H. LOWER SEAL $76.36
Location: 13 Prev | Next Part: 64561800 *Qty: 1 L.H. LOWER SEAL $77.89
Location: 14 Prev | Next Part: 65142100 *Qty: 2 COVER -Valid after stock exhaustion of 63198800 $30.13
Location: 14 Prev | Next Part: 63198800 *Qty: 2 COVER -Valid till stock exhaustion $223.47
Location: 15 Prev | Next Part: 64902400 *Qty: 1 R.H. FRONT GRAVEL GUARD $144.84
Location: 16 Prev | Next Part: 64902500 *Qty: 1 L.H. FRONT GRAVEL GUARD $72.09
Location: 17 Prev | Next Part: 63198900 *Qty: 6 RING NUT $59.84
Location: 18 Prev | Next Part: 13604115 *Qty: 6 SPACER $1.52
Location: 19 Prev | Next Part: 64281800 *Qty: 1 AIR DUCTING -Valid for RHD $1,117.30
Location: 19 Prev | Next Part: 63200700 *Qty: 1 AIR DUCTING -Not for RHD Unavailable
Location: 20 Prev | Next Part: 64537300 *Qty: 1 WATER EXHAUST TUBE -Valid for RHD $81.08
Location: 20 Prev | Next Part: 63200800 *Qty: 1 WATER EXHAUST TUBE -Not for RHD $53.91
Location: 21 Prev | Next Part: 13000690 *Qty: 1 SCREW COLLAR Unavailable
Location: 22 Prev | Next Part: 10902224 *Qty: 14 SCREW $0.90
Location: 23 Prev | Next Part: 10519424 *Qty: 14 WASHER Unavailable
Location: 24 Prev | Next Part: 65260100 *Qty: 2 GASKET $3.70
Location: 25 Prev | Next Part: 65195300 *Qty: 2 WATER EXHAUST TUBE $7.26
Location: 26 Prev | Next Part: 65192200 *Qty: 1 GASKET $6.44
Location: 27 Prev | Next Part: 63201100 *Qty: 1 GASKET $5.95
Location: 28 Prev | Next Part: 64560400 *Qty: 1 R.H. LOWER FRONT WHEELHOUSE Unavailable
Location: 29 Prev | Next Part: 64560500 *Qty: 1 L.H. LOWER FRONT WHEELHOUSE $101.47
Location: 30 Prev | Next Part: 13276477 *Qty: 14 SCREW Unavailable
Location: 31 Prev | Next Part: 62766300 *Qty: 6 CLIP Unavailable
Location: 32 Prev | Next Part: 10519424 *Qty: 14 WASHER Unavailable
Location: 33 Prev | Next Part: 60758600 *Qty: 8 NUT WITH CAGE $0.90
Location: 34 Prev | Next Part: 65081800 *Qty: 1 PROTECTION FOR AIR CONDITIONING -Not for RHD $256.89
Location: 34 Prev | Next Part: 170688 *Qty: 1 PROTECTION FOR AIR CONDITIONING -Valid for RHD $459.47
Location: 35 Prev | Next Part: 65194100 *Qty: 1 R.H. LATERAL COVER $16.79
Location: 35 Prev | Next Part: 65194200 *Qty: 1 L.H. LATERAL COVER $16.79
Location: 36 Prev | Next Part: 64460500 *Qty: 2 SCREW Unavailable
Location: 37 Prev | Next Part: 12638124 *Qty: 2 WASHER $0.90
Location: 38 Prev | Next Part: 65886700 *Qty: 2 HOOD GAS SHOCK ABSORBER BRACKET Unavailable
Location: 39 Prev | Next Part: 65747600 *Qty: 2 GASKET $6.12
Location: 40 Prev | Next Part: 62797700 *Qty: 1 PLUG $3.12
Location: 41 Prev | Next Part: 63403200 *Qty: 3 GASKET $9.50
Location: 42 Prev | Next Part: 65747600 *Qty: 2 GASKET $6.12

* Quantity shown indicates the number of pieces used in the diagram.
