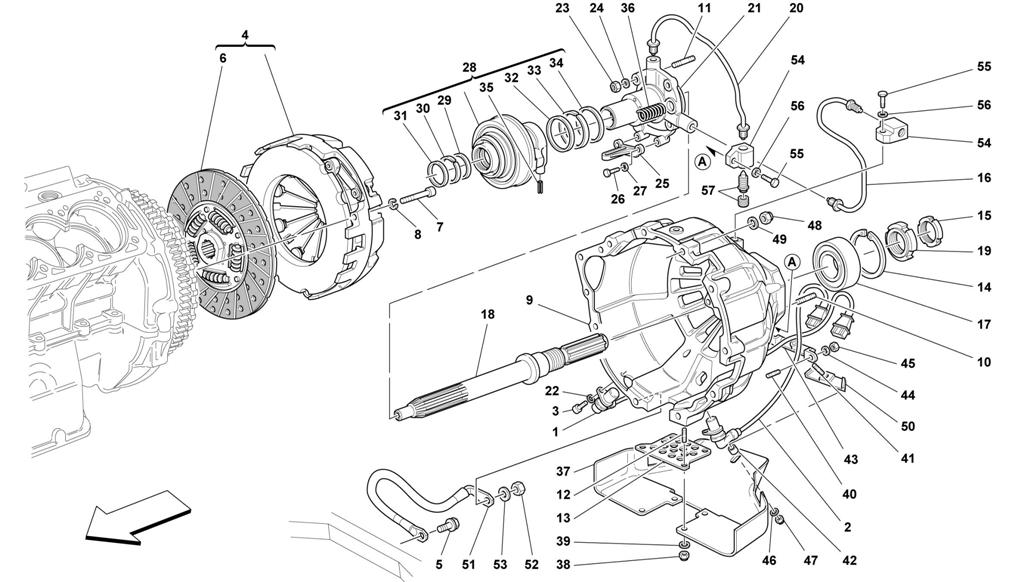

CLUTCH - CONTROLS

Go to Split View

CLUTCH - CONTROLS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 164082 *Qty: 1 R.H. SIDE ANGOLAR SPEED SENSOR Call
Location: 2 Prev | Next Part: 164083 *Qty: 1 L.H. SIDE ANGOLAR SPEED SENSOR $73.08
Location: 3 Prev | Next Part: 14305124 *Qty: 2 SCREW $0.90
Location: 4 Prev | Next Part: 194775 *Qty: 1 COMPLETE CLUTCH $2,465.00
Location: 5 Prev | Next Part: 16296421 *Qty: 1 SCREW $36.24
Location: 6 Prev | Next Part: 194776 *Qty: 1 CLUTCH DISC $797.47
Location: 7 Prev | Next Part: 14305934 *Qty: 9 SCREW $0.90
Location: 8 Prev | Next Part: 127494 *Qty: 9 WASHER $0.90
Location: 9 Prev | Next Part: 168915 *Qty: 1 CLUTCH HOUSING -With complete clutch housing Call
Location: 9 Prev | Next Part: 151601 *Qty: 1 COMPLETE CLUTCH HOUSING $2,943.99
Location: 10 Prev | Next Part: 13546334 *Qty: 8 STUD $1.10
Location: 11 Prev | Next Part: 13543124 *Qty: 4 STUD $0.90
Location: 12 Prev | Next Part: 11001024 *Qty: 4 STUD $2.85
Location: 13 Prev | Next Part: 144441 *Qty: 1 CLUTCH HOUSING SMALL COVER $3.18
Location: 14 Prev | Next Part: 144511 *Qty: 1 STOP RING $1.08
Location: 15 Prev | Next Part: 165576 *Qty: 1 RING NUT $24.50
Location: 16 Prev | Next Part: 165759 *Qty: 1 OIL DELIVERY TUBE $38.74
Location: 17 Prev | Next Part: 174470 *Qty: 1 BEARING -Valid after stock exhaustion of 145805 $47.27
Location: 17 Prev | Next Part: 145805 *Qty: 1 BEARING -Valid till stock exhaustion $169.87
Location: 18 Prev | Next Part: 165573 *Qty: 1 CLUTCH SHAFT $578.01
Location: 19 Prev | Next Part: 165575 *Qty: 1 RING NUT $24.50
Location: 20 Prev | Next Part: 165733 *Qty: 1 VENT PIPE $45.37
Location: 21 Prev | Next Part: 169137 *Qty: 1 FLANGE WITH SLEEVE Call
Location: 22 Prev | Next Part: 12601274 *Qty: 2 WASHER $0.90
Location: 23 Prev | Next Part: 133989 *Qty: 4 NUT $0.90
Location: 24 Prev | Next Part: 127496 *Qty: 4 WASHER $0.90
Location: 25 Prev | Next Part: 151693 *Qty: 1 PLATE Call
Location: 26 Prev | Next Part: 10977524 *Qty: 2 SCREW $0.90
Location: 27 Prev | Next Part: 127493 *Qty: 2 WASHER Superseded
Location: 28 Prev | Next Part: 177201 *Qty: 1 COMPLETE THRUST BEARING $588.43
Location: 28 Prev | Next Part: CRB456/550 *Qty: 1 Thrust Bearing with Seals $478.00
Location: 29 Prev | Next Part: 154505 *Qty: 1 SEAL RING $12.15
Location: 30 Prev | Next Part: 154504 *Qty: 1 RING $6.40
Location: 31 Prev | Next Part: 154550 *Qty: 1 SCRAPER RING $22.08
Location: 32 Prev | Next Part: 154508 *Qty: 1 SEAL RING $36.32
Location: 33 Prev | Next Part: 154507 *Qty: 1 RING $3.53
Location: 34 Prev | Next Part: 154551 *Qty: 1 SCRAPER RING $24.92
Location: 35 Prev | Next Part: 14163970 *Qty: 1 FLEXIBLE PIN $0.90
Location: 36 Prev | Next Part: 155207 *Qty: 2 PRELOAD SPRING $11.12
Location: 37 Prev | Next Part: 170115 *Qty: 1 SHIELD FOR FASE SENSOR PROTECTION $432.17
Location: 38 Prev | Next Part: 15896470 *Qty: 4 NUT $0.90
Location: 39 Prev | Next Part: 12601174 *Qty: 4 WASHER $0.90
Location: 40 Prev | Next Part: 13540824 *Qty: 2 STUD $0.90
Location: 41 Prev | Next Part: 155177 *Qty: 1 STUD $9.24
Location: 42 Prev | Next Part: 155175 *Qty: 1 SPACER $1.83
Location: 43 Prev | Next Part: 154464 *Qty: 1 SUPPORT $36.25
Location: 44 Prev | Next Part: 12639724 *Qty: 2 WASHER $0.90
Location: 45 Prev | Next Part: 102741 *Qty: 2 NUT $0.90
Location: 46 Prev | Next Part: 11199274 *Qty: 1 WASHER $0.90
Location: 47 Prev | Next Part: 15896470 *Qty: 4 NUT $0.90
Location: 48 Prev | Next Part: 16100814 *Qty: 5 NUT $0.90
Location: 49 Prev | Next Part: 12601374 *Qty: 5 WASHER $0.90
Location: 50 Prev | Next Part: 146654 *Qty: 1 SUPPORT $79.10
Location: 51 Prev | Next Part: 155918 *Qty: 1 GROUND CABLE $20.65
Location: 52 Prev | Next Part: 15896470 *Qty: 4 NUT $0.90
Location: 53 Prev | Next Part: 11199274 *Qty: 1 WASHER $0.90
Location: 54 Prev | Next Part: 139471 *Qty: 2 UNION $37.62
Location: 55 Prev | Next Part: 10902624 *Qty: 2 SCREW $0.90
Location: 56 Prev | Next Part: 11181874 *Qty: 2 WASHER $0.90
Location: 57 Prev | Next Part: 121699 *Qty: 1 BLEEDER SCREW $51.03

* Quantity shown indicates the number of pieces used in the diagram.
