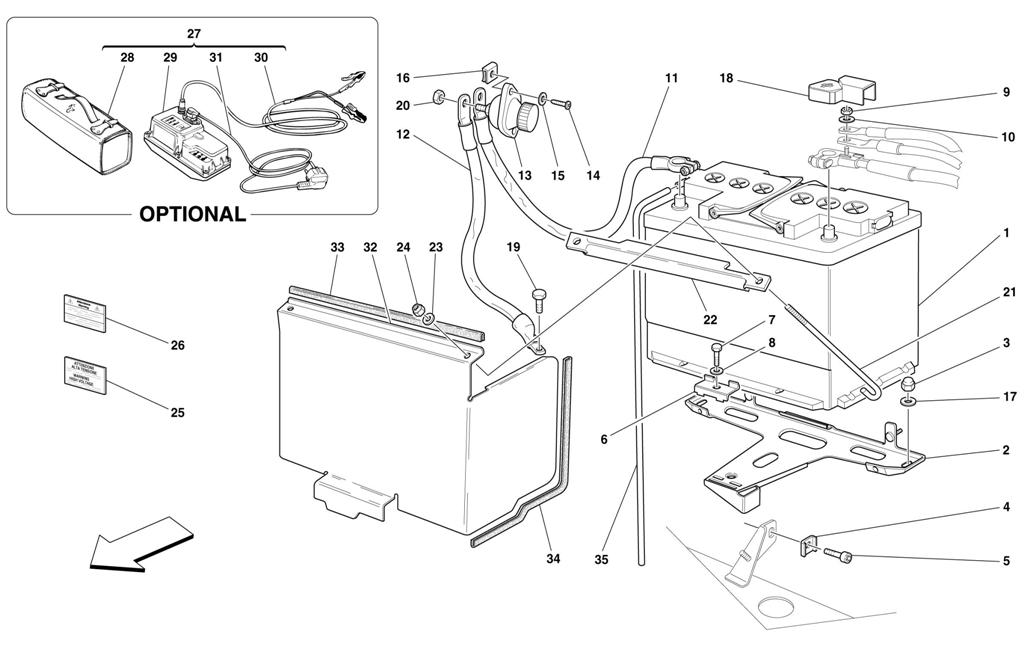

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 188066 *Qty: 1 BATTERY 12V-74AH 400A -Not for RHD Call
Location: 1 Prev | Next Part: 156575 *Qty: 1 BATTERY 12V-70AH-420A -Valid for RHD Call
Location: 2 Prev | Next Part: 171918 *Qty: 1 PLATE FOR BATTERY SUPPORT -Valid from Ass. Nr. 24713 -Not for RHD $119.85
Location: 2 Prev | Next Part: 172556 *Qty: 1 PLATE FOR BATTERY SUPPORT -Valid for RHD $119.85
Location: 2 Prev | Next Part: 154320 *Qty: 1 PLATE FOR BATTERY SUPPORT -Valid till Ass. Nr. 24712 -Not for RHD $133.48
Location: 3 Prev | Next Part: 150595 *Qty: 2 CAP NUT $1.02
Location: 4 Prev | Next Part: 155599 *Qty: 1 BRACKET $2.50
Location: 5 Prev | Next Part: 14306224 *Qty: 1 SCREW $0.90
Location: 6 Prev | Next Part: 154324 *Qty: 1 MOBILE BRACKET $52.24
Location: 7 Prev | Next Part: 16043724 *Qty: 1 SCREW $0.90
Location: 8 Prev | Next Part: 14499421 *Qty: 1 WASHER $0.90
Location: 9 Prev | Next Part: 147985 *Qty: 1 NUT $0.90
Location: 10 Prev | Next Part: 12638524 *Qty: 1 WASHER $0.90
Location: 11 Prev | Next Part: 167502 *Qty: 1 COPPER PLAIT FROM BATTERY TO SWITCH $264.36
Location: 12 Prev | Next Part: 167501 *Qty: 1 COPPER PLAIT FROM SWITCH TO EARTH $242.20
Location: 13 Prev | Next Part: 139607 *Qty: 1 BATTERY CUT-OUT SWITCH Call
Location: 14 Prev | Next Part: 15688275 *Qty: 2 SCREW $0.90
Location: 15 Prev | Next Part: 12637878 *Qty: 2 WASHER Call
Location: 16 Prev | Next Part: 61067800 *Qty: 2 BRACKET $0.90
Location: 17 Prev | Next Part: 12646724 *Qty: 2 WASHER $0.90
Location: 18 Prev | Next Part: 144727 *Qty: 1 PROTECTION BOOT $28.06
Location: 19 Prev | Next Part: 16296421 *Qty: 1 SCREW $36.24
Location: 20 Prev | Next Part: 102741 *Qty: 2 NUT $0.90
Location: 21 Prev | Next Part: 189130 *Qty: 2 TIE ROD -Valid from Ass. Nr. 24713 $65.57
Location: 22 Prev | Next Part: 171903 *Qty: 1 ANGLE PIECE -Valid from Ass. Nr. 24713 Call
Location: 23 Prev | Next Part: 14496424 *Qty: 2 WASHER -Valid from Ass. Nr. 24713 Superseded
Location: 24 Prev | Next Part: 102948 *Qty: 2 NUT -Valid from Ass. Nr. 24713 $0.90
Location: 25 Prev | Next Part: 113404 *Qty: 1 WARNING HIGH VOLTAGE PLATE $0.90
Location: 26 Prev | Next Part: 184205 *Qty: 2 BATTERY EXCLUSION PLATE -Valid for USA M.Y. 2000 and CDN M.Y. 2000 Call
Location: 27 Prev | Next Part: 70000906 *Qty: 1 BATTERY CHARGER KIT -Valid for AUS -Optional Call
Location: 27 Prev | Next Part: 70000909 *Qty: 1 BATTERY CHARGER KIT -Valid for GB and Hong Kong -Optional Call
Location: 27 Prev | Next Part: 70000904 *Qty: 1 BATTERY CHARGER KIT -Not for USA, CDN, GB, Hong Kong and AUS -Optional Call
Location: 27 Prev | Next Part: 70000905 *Qty: 1 BATTERY CHARGER KIT -Valid for USA and CDN -Optional $1,628.93
Location: 28 Prev | Next Part: 65699200 *Qty: 1 BATTERY BAG CASE -Optional $432.19
Location: 29 Prev | Next Part: 177791 *Qty: 1 BATTERY CHARGER -230V -Not for USA and CDN -Optional $896.55
Location: 29 Prev | Next Part: 177792 *Qty: 1 BATTERY CHARGER -110V -Valid for USA and CDN -Optional $1,968.24
Location: 30 Prev | Next Part: 177793 *Qty: 1 CABLE WITH TERMINAL -Optional Call
Location: 31 Prev | Next Part: 177794 *Qty: 1 POWER SUPPLY CABLE -Not for USA, CDN, GB, Hong Kong and AUS -Optional $26.83
Location: 31 Prev | Next Part: 177795 *Qty: 1 POWER SUPPLY CABLE -Valid for USA and CDN -Optional $20.12
Location: 31 Prev | Next Part: 177796 *Qty: 1 POWER SUPPLY CABLE -Valid for AUS -Optional Call
Location: 31 Prev | Next Part: 178294 *Qty: 1 POWER SUPPLY CABLE -Valid for GB and Hong Kong -Optional Call
Location: 32 Prev | Next Part: 178884 *Qty: 1 BATTERY HEAT PROTECTION -Not for RHD $55.30
Location: 33 Prev | Next Part: 179906 *Qty: 2 GASKET -Not for RHD $6.72
Location: 34 Prev | Next Part: 179907 *Qty: 1 GASKET -Not for RHD Call
Location: 35 Prev | Next Part: 180056 *Qty: 1 BATTERY ACID EXHAUST TUBE -Not for RHD Call

* Quantity shown indicates the number of pieces used in the diagram.
