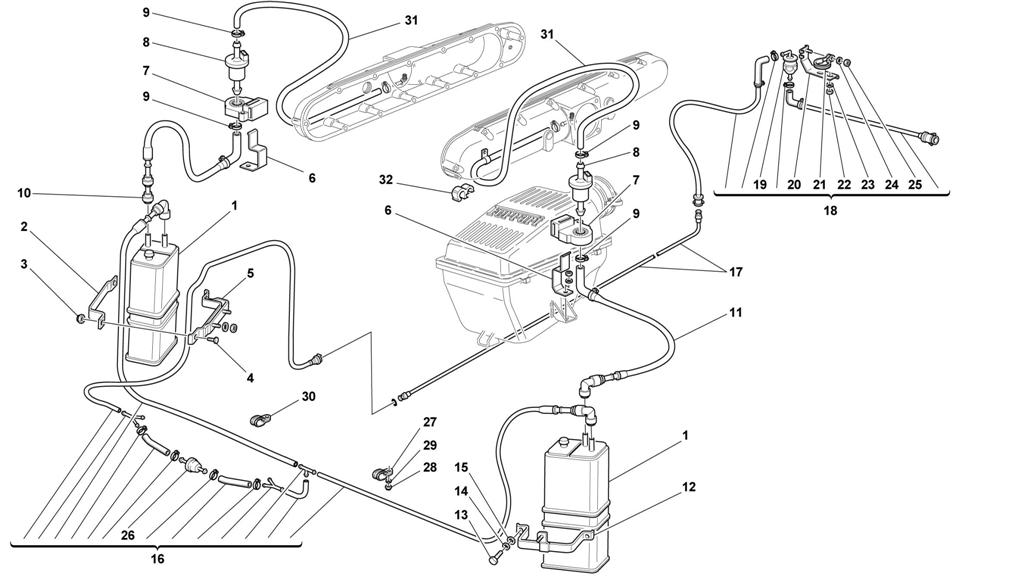

ANTIEVAPORATION DEVICE -VALID FOR USA M.Y. 99 AND CDN M.Y. 99-

Go to Split View

ANTIEVAPORATION DEVICE -VALID FOR USA M.Y. 99 AND CDN M.Y. 99-

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 174626 *Qty: 2 FUEL VAPOR FILTER Unavailable
Location: 2 Prev | Next Part: 154385 *Qty: 1 BRACKET $89.64
Location: 3 Prev | Next Part: 102948 *Qty: 2 NUT Superseded
Location: 4 Prev | Next Part: 10902124 *Qty: 2 SCREW $0.90
Location: 5 Prev | Next Part: 156452 *Qty: 1 BRACKET $30.25
Location: 6 Prev | Next Part: 178792 *Qty: 2 PAD SUPPORT BRACKET $5.15
Location: 7 Prev | Next Part: 174623 *Qty: 2 PAD $11.35
Location: 8 Prev | Next Part: 162412 *Qty: 2 WASHER VALVE $123.72
Location: 9 Prev | Next Part: 13431870 *Qty: 4 CLAMP Unavailable
Location: 10 Prev | Next Part: 178787 *Qty: 1 UNION COMPLETE R.H. TUBE $105.03
Location: 11 Prev | Next Part: 178788 *Qty: 1 UNION COMPLETE L.H. TUBE $100.17
Location: 12 Prev | Next Part: 169917 *Qty: 1 VAPOR FILTER FIXING BRACKET $21.88
Location: 13 Prev | Next Part: 10902124 *Qty: 2 SCREW $0.90
Location: 14 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 15 Prev | Next Part: 10519424 *Qty: 2 WASHER Unavailable
Location: 16 Prev | Next Part: 178814 *Qty: 1 VENTILATING FLAP PIPE ASSEMBLY Unavailable
Location: 17 Prev | Next Part: 183489 *Qty: 2 INTERMEDIATE UNDERFLOOR TUBE $13.22
Location: 17 Prev | Next Part: 178858 *Qty: 2 INTERMEDIATE UNDERFLOOR TUBE -Not as spare part now -Replaced by 183489 Unavailable
Location: 18 Prev | Next Part: 179024 *Qty: 1 ROLL-OVER VALVE ASSEMBLY $263.98
Location: 19 Prev | Next Part: 170522 *Qty: 1 ANTI FLOWING BACK VALVE $49.23
Location: 20 Prev | Next Part: 172458 *Qty: 1 VALVE SUPPORTING BRACKET $9.15
Location: 21 Prev | Next Part: 172460 *Qty: 1 CLAMP $3.73
Location: 22 Prev | Next Part: 102948 *Qty: 2 NUT Superseded
Location: 23 Prev | Next Part: 14499324 *Qty: 2 WASHER Superseded
Location: 24 Prev | Next Part: 12637824 *Qty: 1 WASHER $0.90
Location: 25 Prev | Next Part: 113647 *Qty: 1 NUT Unavailable
Location: 26 Prev | Next Part: 174594 *Qty: 2 TANK VENTILATION VALVE $12.16
Location: 27 Prev | Next Part: 10441290 *Qty: 4 R.H. AND L.H. FIXING BRACKET Unavailable
Location: 28 Prev | Next Part: 102948 *Qty: 2 NUT Superseded
Location: 29 Prev | Next Part: 14499324 *Qty: 2 WASHER Superseded
Location: 30 Prev | Next Part: 10441690 *Qty: 1 R.H. FIXING BRACKET $2.41
Location: 31 Prev | Next Part: 179768 *Qty: 2 PIPE FROM AIR CAPACITY TO VALVE Unavailable
Location: 32 Prev | Next Part: 180148 *Qty: 2 CLIP Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
