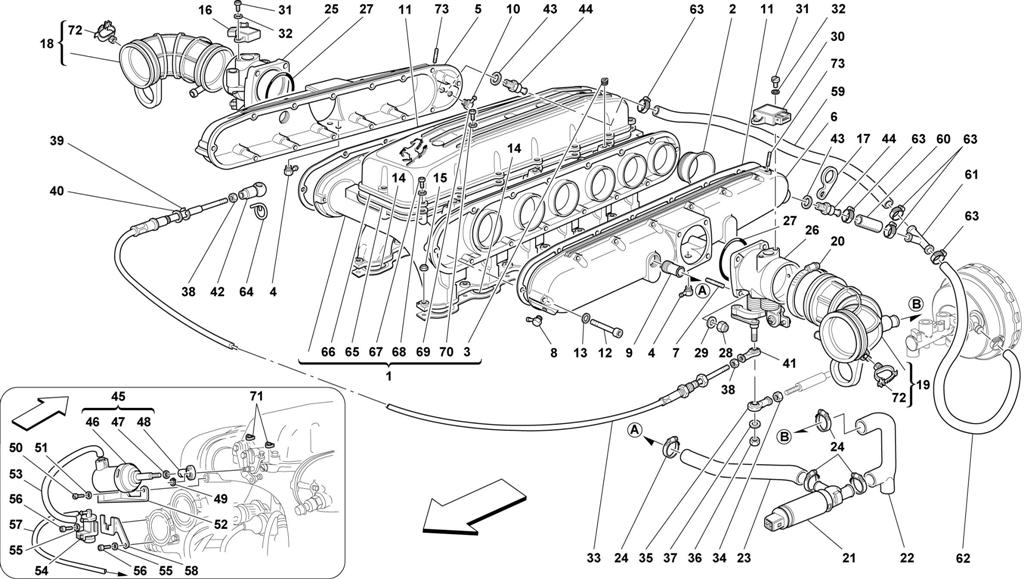

AIR INTAKE MANIFOLDS

Go to Split View

AIR INTAKE MANIFOLDS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 183054 *Qty: 1 L.H. COMPLETE SUCTION MANIFOLDS COVER -Valid from car Ass. Nr. 32057 -Valid for USA M.Y. 99 and C Call
Location: - Prev | Next Part: 171619 *Qty: 1 R.H.COMPLETE SUCTION MANIFOLDS COVER -Valid till car Ass. Nr. 32101 LHD and till car Ass. Nr. 3210 $655.29
Location: - Prev | Next Part: 171620 *Qty: 1 L.H. COMPLETE SUCTION MANIFOLDS COVER -Valid till car Ass. Nr. 32101 LHD and till car Ass. Nr. 321 $637.11
Location: - Prev | Next Part: 177538 *Qty: 1 COMPLETE SUCTION MANIFOLD WITH ACTUATOR -Valid from engine Nr. 49834 $8,484.42
Location: - Prev | Next Part: 183031 *Qty: 1 R.H.COMPLETE SUCTION MANIFOLDS COVER -Valid from car Ass. Nr. 32102 LHD and from car Ass. Nr. 3210 $601.01
Location: - Prev | Next Part: 183032 *Qty: 1 L.H. COMPLETE SUCTION MANIFOLDS COVER -Valid from car Ass. Nr. 32102 LHD and from car Ass. Nr. 321 $589.84
Location: - Prev | Next Part: 183051 *Qty: 1 R.H.COMPLETE SUCTION MANIFOLDS COVER -Valid till car Ass. Nr. 32056 -Valid for USA M.Y. 99 and CD Call
Location: - Prev | Next Part: 183052 *Qty: 1 L.H. COMPLETE SUCTION MANIFOLDS COVER -Valid till car Ass. Nr. 32056 -Valid for USA M.Y. 99 and C Call
Location: - Prev | Next Part: 183053 *Qty: 1 R.H.COMPLETE SUCTION MANIFOLDS COVER -Valid from car Ass. Nr. 32057 -Valid for USA M.Y. 99 and CD Call
Location: 1 Prev | Next Part: 177539 *Qty: 1 SUCTION MANIFOLD -Valid from engine Nr. 49834 -Not as spare part -With complete suction manifolds Call
Location: 1 Prev | Next Part: 162768 *Qty: 1 SUCTION MANIFOLD -Valid till engine Nr. 49833 -Not as spare part -With complete suction manifolds Call
Location: 2 Prev | Next Part: 168161 *Qty: 12 END MANIFOLD $30.56
Location: 3 Prev | Next Part: 13525570 *Qty: 6 THREADED INSERT $2.86
Location: 4 Prev | Next Part: 174818 *Qty: 2 UNION -Valid for USA M.Y. 99 and CDN M.Y. 99 $14.68
Location: 4 Prev | Next Part: 128016 *Qty: 2 UNION -Not for USA M.Y. 99 and CDN M.Y. 99 $11.78
Location: 7 Prev | Next Part: 13541324 *Qty: 8 STUD $0.97
Location: 8 Prev | Next Part: 128016 *Qty: 2 UNION -Not for USA M.Y. 99 and CDN M.Y. 99 $11.78
Location: 9 Prev | Next Part: 143286 *Qty: 2 UNION $5.44
Location: 10 Prev | Next Part: 128016 *Qty: 2 UNION -Not for USA M.Y. 99 and CDN M.Y. 99 $11.78
Location: 11 Prev | Next Part: 154562 *Qty: 2 GASKET $22.05
Location: 12 Prev | Next Part: 156828 *Qty: 28 SCREW Call
Location: 13 Prev | Next Part: 12601274 *Qty: 28 WASHER $0.90
Location: 14 Prev | Next Part: 225462 *Qty: 2 GASKET Superseded
Location: 15 Prev | Next Part: 159601 *Qty: 24 NUT Call
Location: 16 Prev | Next Part: 172750 *Qty: 1 POTENTIOMETER FOR R.H. THROTTLE VALVE $170.91
Location: 17 Prev | Next Part: 154754 *Qty: 1 BRACKET $1.23
Location: 18 Prev | Next Part: 159830 *Qty: 1 R.H. SLEEVE -Valid till engine Nr. 52415 Call
Location: 18 Prev | Next Part: 180140 *Qty: 1 R.H. SLEEVE -Valid from engine Nr. 52416 $185.74
Location: 19 Prev | Next Part: 159831 *Qty: 1 L.H. SLEEVE -Valid till engine Nr. 52415 Call
Location: 19 Prev | Next Part: 180141 *Qty: 1 L.H. SLEEVE -Valid from engine Nr. 52416 Call
Location: 20 Prev | Next Part: 13001190 *Qty: 2 SCREEW COLLAR $1.31
Location: 21 Prev | Next Part: 142432 *Qty: 2 REGULATOR FOR IDLE ADJUSTMENT Call
Location: 22 Prev | Next Part: 159120 *Qty: 2 PIPE FROM REGULATOR TO SLEEVE $202.21
Location: 23 Prev | Next Part: 171759 *Qty: 2 PIPE FROM REGULATOR TO PLENUM CHAMBER Call
Location: 24 Prev | Next Part: 12180290 *Qty: 8 SCREW COLLAR Call
Location: 25 Prev | Next Part: 174463 *Qty: 1 COMPLETE R.H. THROTTLE HOLDER -Valid for RHD $867.96
Location: 25 Prev | Next Part: 171006 *Qty: 1 COMPLETE R.H. THROTTLE HOLDER -Not for RHD $993.44
Location: 26 Prev | Next Part: 171007 *Qty: 1 COMPLETE L.H. THROTTLE HOLDER -Not for RHD $850.64
Location: 26 Prev | Next Part: 171203 *Qty: 1 COMPLETE L.H. THROTTLE HOLDER -Valid for RHD $993.44
Location: 27 Prev | Next Part: 142934 *Qty: 2 O.R. GASKET $1.83
Location: 28 Prev | Next Part: 101239 *Qty: 8 NUT $1.56
Location: 29 Prev | Next Part: 14496424 *Qty: 8 WASHER Superseded
Location: 30 Prev | Next Part: 158170 *Qty: 1 POTENTIOMETER FOR L.H. THROTTLE VALVE $370.95
Location: 31 Prev | Next Part: 10444521 *Qty: 4 SCREW $0.90
Location: 32 Prev | Next Part: 12601074 *Qty: 4 WASHER $0.90
Location: 33 Prev | Next Part: 178200 *Qty: 1 PUSH-PULL CABLE $129.38
Location: 34 Prev | Next Part: 15896470 *Qty: 2 NUT $0.90
Location: 35 Prev | Next Part: 111530 *Qty: 1 BALL JOINT $31.04
Location: 36 Prev | Next Part: 113647 *Qty: 1 NUT $0.90
Location: 37 Prev | Next Part: 14496324 *Qty: 1 WASHER $3.52
Location: 38 Prev | Next Part: 15896470 *Qty: 2 NUT $0.90
Location: 39 Prev | Next Part: 16160976 *Qty: 1 FLEXIBLE RING $0.90
Location: 40 Prev | Next Part: 12638624 *Qty: 1 WASHER $0.90
Location: 41 Prev | Next Part: 111530 *Qty: 1 BALL JOINT $31.04
Location: 42 Prev | Next Part: 173999 *Qty: 1 BALL JOINT $7.35
Location: 43 Prev | Next Part: 10298460 *Qty: 2 GASKET $0.90
Location: 44 Prev | Next Part: 147978 *Qty: 2 NONRETURN VALVE $19.14
Location: 45 Prev | Next Part: 168275 *Qty: 1 COMPLETE ACTUATOR $468.36
Location: 46 Prev | Next Part: 168275 *Qty: 1 ACTUATOR $468.36
Location: 47 Prev | Next Part: 173601 *Qty: 1 NUT $0.90
Location: 48 Prev | Next Part: 173596 *Qty: 1 BALL JOINT Call
Location: 49 Prev | Next Part: 173598 *Qty: 1 SEEGER RING $0.90
Location: 50 Prev | Next Part: 173599 *Qty: 2 SCREW $4.07
Location: 51 Prev | Next Part: 173600 *Qty: 2 WASHER $0.90
Location: 52 Prev | Next Part: 173595 *Qty: 1 SUPPORT $33.94
Location: 53 Prev | Next Part: 168248 *Qty: 1 RUBBER PIPE $23.05
Location: 54 Prev | Next Part: 159177 *Qty: 1 SOLENOID VALVE $169.51
Location: 55 Prev | Next Part: 12601274 *Qty: 28 WASHER $0.90
Location: 56 Prev | Next Part: 14305224 *Qty: 2 SCREW $0.90
Location: 57 Prev | Next Part: 122761 *Qty: 1 RUBBER PIPE FROM UNION TO SOLENOID VALVE $19.84
Location: 58 Prev | Next Part: 168246 *Qty: 1 SMALL PLATE $7.75
Location: 59 Prev | Next Part: 173841 *Qty: 1 RUBBER PIPE FROM R.H. VALVE TO UNION $11.13
Location: 60 Prev | Next Part: 111023 *Qty: 1 RUBBER PIPE FROM L.H. VALVE TO UNION $16.50
Location: 61 Prev | Next Part: 100881 *Qty: 1 UNION $5.48
Location: 62 Prev | Next Part: 168386 *Qty: 1 RUBBER PIPE FROM UNION TO BRAKE BOOSTER -Not for RHD $26.00
Location: 62 Prev | Next Part: 173842 *Qty: 1 RUBBER PIPE FROM UNION TO BRAKE BOOSTER -Valid for RHD Call
Location: 63 Prev | Next Part: 13000390 *Qty: 5 SCREW COLLAR $0.90
Location: 64 Prev | Next Part: 174001 *Qty: 1 CLIP $0.90
Location: 65 Prev | Next Part: 162904 *Qty: 1 GASKET $20.22
Location: 66 Prev | Next Part: 162903 *Qty: 1 COVER Call
Location: 67 Prev | Next Part: 14305424 *Qty: 16 SCREW Superseded
Location: 68 Prev | Next Part: 12601274 *Qty: 28 WASHER $0.90
Location: 69 Prev | Next Part: 163774 *Qty: 5 SCREW $6.27
Location: 70 Prev | Next Part: 12601174 *Qty: 5 WASHER $0.90
Location: 71 Prev | Next Part: 178441 *Qty: 2 SEAL RING $15.16
Location: 72 Prev | Next Part: 180139 *Qty: 6 CLIP -Valid from engine Nr. 52416 $0.90
Location: 73 Prev | Next Part: 11500024 *Qty: 2 STUD -Valid from car Ass. Nr. 32102 GS, from car Ass. Nr. 32105 RHD and from car Ass. Nr. 32057 M. $0.93

* Quantity shown indicates the number of pieces used in the diagram.
