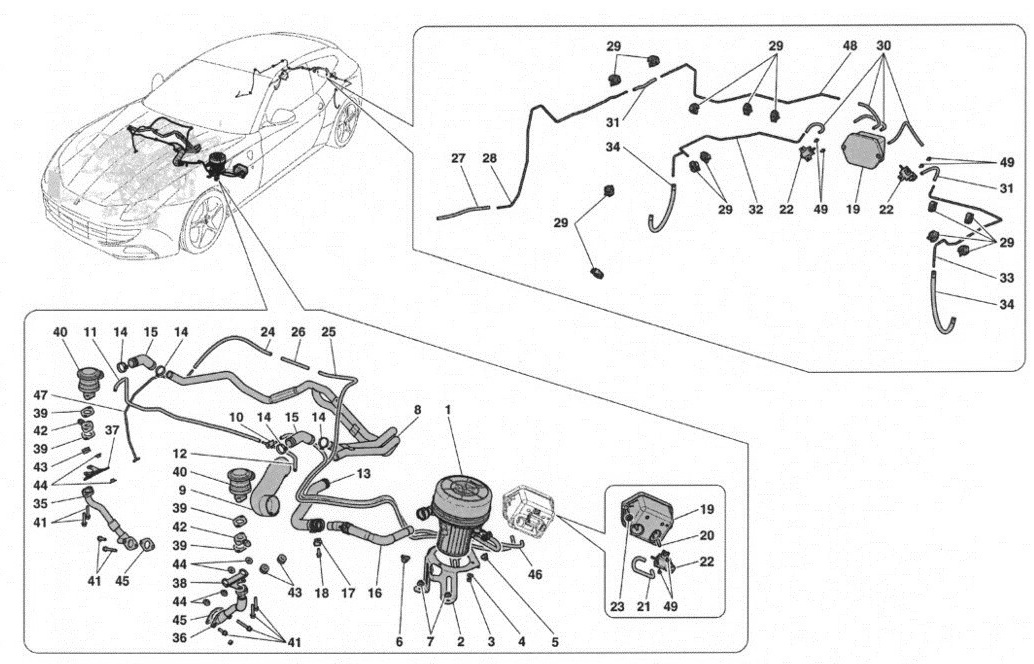

SECONDARY AIR SYSTEM

Go to Split View

SECONDARY AIR SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 247795 *Qty: 0 SECONDARY AIR SYSTEM PUMP $706.33
Location: 2 Prev | Next Part: 269285 *Qty: 0 PUMP MOUNTING BRACKET Call
Location: 3 Prev | Next Part: 15896214 *Qty: 0 NUT Call
Location: 4 Prev | Next Part: 11194674 *Qty: 0 WASHER $0.90
Location: 5 Prev | Next Part: 253769 *Qty: 0 CLIP $0.90
Location: 6 Prev | Next Part: 198253 *Qty: 0 CLIP $4.16
Location: 7 Prev | Next Part: 14039614 *Qty: 0 NUT $0.90
Location: 8 Prev | Next Part: 274980 *Qty: 0 ALUMINIUM PIPE $299.06
Location: 9 Prev | Next Part: 276435 *Qty: 0 SELF-ADHESIVE ALUMINIUM STRIP Call
Location: 9 Prev | Next Part: 276428 *Qty: 0 HEAT REFLECTIVE SLEEVE Call
Location: 10 Prev | Next Part: 275374 *Qty: 0 THREE WAY -After depletion, also order pipe 141235 ref. 12, pipe 122761 ref. 11, pipe 279281 ref. 46- -Applicable up to Ass. No. 100180- -Applicable until depletion- Superseded
Location: 10 Prev | Next Part: 257691 *Qty: 0 THREE WAY -Applicable from Ass. No. 100181- -Applicable after depletion of 275374- $1.75
Location: 11 Prev | Next Part: 275542 *Qty: 0 RUBBER PIPE -D. 3.5 X 665- -Between 3-way union and RH pneumatic valve- -After depletion, also order three-way connector 257691 ref. 10, pipe 141235 ref. 12, pipe 279281 ref. 46- -Applicable up to Ass. No. 100180- -Applicable until depletion- Superseded
Location: 11 Prev | Next Part: 122761 *Qty: 0 RUBBER PIPE -D. 3.5 X 665- -Between 3-way union and RH pneumatic valve- -Applicable from Ass. No. 100181- -Applicable after depletion of 275542- $19.84
Location: 12 Prev | Next Part: 253376 *Qty: 0 RUBBER PIPE -D. 3.5-8 X 90- -Between 3-way union and LH pneumatic valve- -After depletion, also order three-way connector 257691 ref. 10, pipe 122761 ref. 11, pipe 279281 ref. 46- -Applicable up to Ass. No. 100180- -Applicable until depletion- Call
Location: 12 Prev | Next Part: 141235 *Qty: 0 RUBBER PIPE -D. 3.5-8 X 90- -Between 3-way union and LH pneumatic valve- -Applicable from Ass. No. 100181- -Applicable after depletion of 253376- $9.35
Location: 13 Prev | Next Part: 267082 *Qty: 0 CONNECTOR PIPE Call
Location: 14 Prev | Next Part: 13432970 *Qty: 0 COLLAR $1.61
Location: 15 Prev | Next Part: 261051 *Qty: 0 CONNECTOR PIPE $64.17
Location: 16 Prev | Next Part: 267148 *Qty: 0 COMPL. HOSE Call
Location: 17 Prev | Next Part: 267133 *Qty: 0 BRACKET Call
Location: 18 Prev | Next Part: 231617 *Qty: 0 SCREW -M6 X 18- $0.90
Location: 19 Prev | Next Part: 198339 *Qty: 0 VACUUM ACCUMULATOR TANK $43.60
Location: 20 Prev | Next Part: 225098 *Qty: 0 CAP FOR UNION $1.48
Location: 21 Prev | Next Part: 115149 *Qty: 0 RUBBER PIPE $34.92
Location: 22 Prev | Next Part: 184363 *Qty: 0 ON/OFF SOLENOID VALVE $59.44
Location: 23 Prev | Next Part: 14039614 *Qty: 0 NUT $0.90
Location: 24 Prev | Next Part: 125826 *Qty: 0 RUBBER PIPE -D. 3.5-8 X 320- -Applicable up to Ass. No. 100180- $10.59
Location: 24 Prev | Next Part: 159542 *Qty: 0 RUBBER PIPE -D. 3.5-8 X 260- -Applicable from Ass. No. 100181 up to Ass. No. 100212- $2.84
Location: 24 Prev | Next Part: 194323 *Qty: 0 RUBBER PIPE -D. 3.5-8 X 330- -Applicable from Ass. No. 100213- $11.84
Location: 25 Prev | Next Part: 276433 *Qty: 0 RUBBER PIPE -D. 3.5-8 X 1500- $43.62
Location: 26 Prev | Next Part: 261684 *Qty: 0 RUBBER PIPE -D. 3.5-8 X 95- $3.17
Location: 27 Prev | Next Part: 115147 *Qty: 0 RUBBER PIPE -D. 3.5-8 X 170- $4.66
Location: 28 Prev | Next Part: 269071 *Qty: 0 RIGID PIPE Call
Location: 29 Prev | Next Part: 234284 *Qty: 0 CLIP -1 compartment- $0.90
Location: 29 Prev | Next Part: 234285 *Qty: 0 CLIP -2 compartments- $0.90
Location: 30 Prev | Next Part: 255096 *Qty: 0 RUBBER PIPE -D. 3.5 X 140- Call
Location: 30 Prev | Next Part: 277041 *Qty: 0 RUBBER PIPE -D. 3.5 X 180- $11.22
Location: 30 Prev | Next Part: 277038 *Qty: 0 RUBBER PIPE -D. 3.5 X 300- $14.96
Location: 31 Prev | Next Part: 199691 *Qty: 0 RUBBER PIPE -D. 3.5 X 120- Call
Location: 32 Prev | Next Part: 269074 *Qty: 0 RH RIGID PIPE Call
Location: 33 Prev | Next Part: 269073 *Qty: 0 LH RIGID PIPE Call
Location: 34 Prev | Next Part: 168069 *Qty: 0 RUBBER PIPE -D. 3-11.5 X 250- $23.57
Location: 35 Prev | Next Part: 257255 *Qty: 0 RH SECONDARY AIR INLET PIPE Call
Location: 36 Prev | Next Part: 257256 *Qty: 0 LH SECONDARY AIR INLET PIPE Call
Location: 37 Prev | Next Part: 257257 *Qty: 0 RH BRACKET Call
Location: 38 Prev | Next Part: 257258 *Qty: 0 LH BRACKET Call
Location: 39 Prev | Next Part: 186781 *Qty: 0 GASKET $4.93
Location: 40 Prev | Next Part: 171175 *Qty: 0 SECONDARY AIR SYSTEM VALVE $112.07
Location: 41 Prev | Next Part: 231618 *Qty: 0 SCREW -M6 X 20- $0.90
Location: 41 Prev | Next Part: 231623 *Qty: 0 SCREW -M6 X 40- $0.90
Location: 41 Prev | Next Part: 231621 *Qty: 0 SCREW -M6 X 30- $0.90
Location: 42 Prev | Next Part: 264020 *Qty: 0 SPACER ASSEMBLY $62.55
Location: 43 Prev | Next Part: 177576 *Qty: 0 GROMMET $2.38
Location: 44 Prev | Next Part: 183898 *Qty: 0 FLANGED BUSHING $3.23
Location: 45 Prev | Next Part: 202980 *Qty: 0 GASKET $2.73
Location: 46 Prev | Next Part: 276430 *Qty: 0 RUBBER PIPE -D. 3.5-8 X 1180- -After depletion, also order three-way connector 257691 ref. 10, pipe 141235 ref. 12, pipe 122761 ref. 11- -Applicable up to Ass. No. 100180- -Applicable until depletion- Call
Location: 46 Prev | Next Part: 279281 *Qty: 0 RUBBER PIPE -D. 3.5-8 X 1180- -Applicable from Ass. No. 100181- -Applicable after depletion of 276430- Call
Location: 47 Prev | Next Part: 276506 *Qty: 0 RUBBER PIPE -D. 3.5-8 X 730- -Applicable up to Ass. No. 100212- $43.62
Location: 47 Prev | Next Part: 280051 *Qty: 0 RUBBER PIPE -D. 3.5 -8mm- -Applicable from Ass. No. 100213- Call
Location: 48 Prev | Next Part: 269072 *Qty: 0 RIGID PIPE Call
Location: 49 Prev | Next Part: 15516204 *Qty: 0 SCREW -M4 X 12- Call

* Quantity shown indicates the number of pieces used in the diagram.
