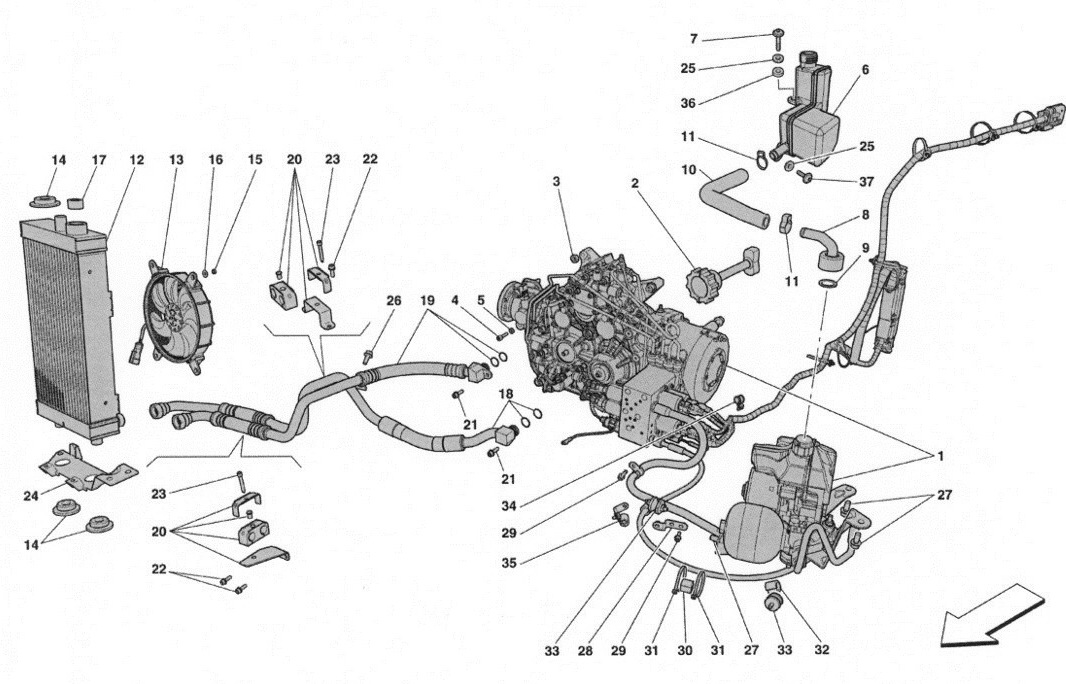

POWER TRANSFER UNIT

POWER TRANSFER UNIT

Location Part # Quantity* Description Price Add To Cart
1 271091 0 POWER TAKE OFF UNIT -Applicable until depletion- Unavailable
1 276013 0 POWER TAKE OFF UNIT -Applicable after depletion of 271091- Unavailable
2 270910 0 DECOUPLING GEAR $373.11
3 14066021 0 NUT $3.82
4 14307824 0 SCREW -M10 X 1.25 X 45- $3.05
4 14308524 0 SCREW -M10 X 1.25 X 90- Unavailable
4 14307924 0 SCREW -M10 X 1.25 X 50- $3.25
5 11190574 0 WASHER $0.90
6 273051 0 AUXILIARY TANK -Applicable up to Ass. No. 98783- -Applicable until depletion- Unavailable
6 279172 0 AUXILIARY TANK -Applicable from Ass. No. 98784- -Applicable after depletion of 273051- $44.92
7 62941000 0 SCREW -M6 X 30- $4.91
8 275459 0 TANK CAP -Applicable up to Ass. No. 98783- -Applicable until depletion- Unavailable
8 279173 0 TANK CAP -Complete with seal- -Applicable from Ass. No. 98784- -Applicable after depletion of 275459- Superseded
9 275749 0 GASKET -Applicable for tank cap part No. 275459 ref. 8- $14.82
10 274943 0 RUBBER PIPE Superseded
11 228142 0 RING CLAMP -No longer supplied- -Replaced by 13430770- $2.01
11 13430770 0 COLLAR -No longer supplied- -Replaced by 13126070- Unavailable
11 13126070 0 COLLAR $1.32
12 266825 0 OIL RADIATOR $1,186.47
13 257823 0 COMPL. ELECTRIC FAN -Applicable until depletion- $303.00
13 277070 0 COMPL. ELECTRIC FAN -Applicable after depletion of 257823- $301.23
14 138926 0 RUBBER PAD FOR PIN $5.42
15 10718011 0 NUT $0.90
16 12638101 0 WASHER Superseded
17 14325340 0 THREADED PLUG $9.50
18 278713 0 OIL DELIVERY PIPE TO RADIATOR KIT $360.51
19 278714 0 OIL RETURN PIPE FROM RADIATOR KIT $382.31
20 278715 0 FRONT RUBBER PILLORY BLOCK KIT $159.96
21 231618 0 SCREW -M6 X 20- Unavailable
22 231617 0 SCREW -M6 X 18- Unavailable
23 231624 0 SCREW -M6 X 45- Unavailable
24 272935 0 LOWER BRACKET $60.03
25 13579221 0 WASHER Unavailable
26 16286024 0 SCREW -M6 X 16- Unavailable
27 248471 0 SCREW -M8 X 20- $1.38
28 278880 0 COMPL. BRACKET $29.23
29 231617 0 SCREW -M6 X 18- Unavailable
30 278889 0 RUBBER RING $19.37
31 206739 0 CABLE TIE $10.27
32 10441390 0 BRACKET WITH SHEATH -D. 12- Unavailable
33 195373 0 PLUG $16.63
34 10441590 0 BRACKET WITH SHEATH -D. 16- Unavailable
35 278881 0 BRACKET ON DAMPER $21.62
36 279174 0 SHIM $4.93
37 64830600 0 SCREW Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
