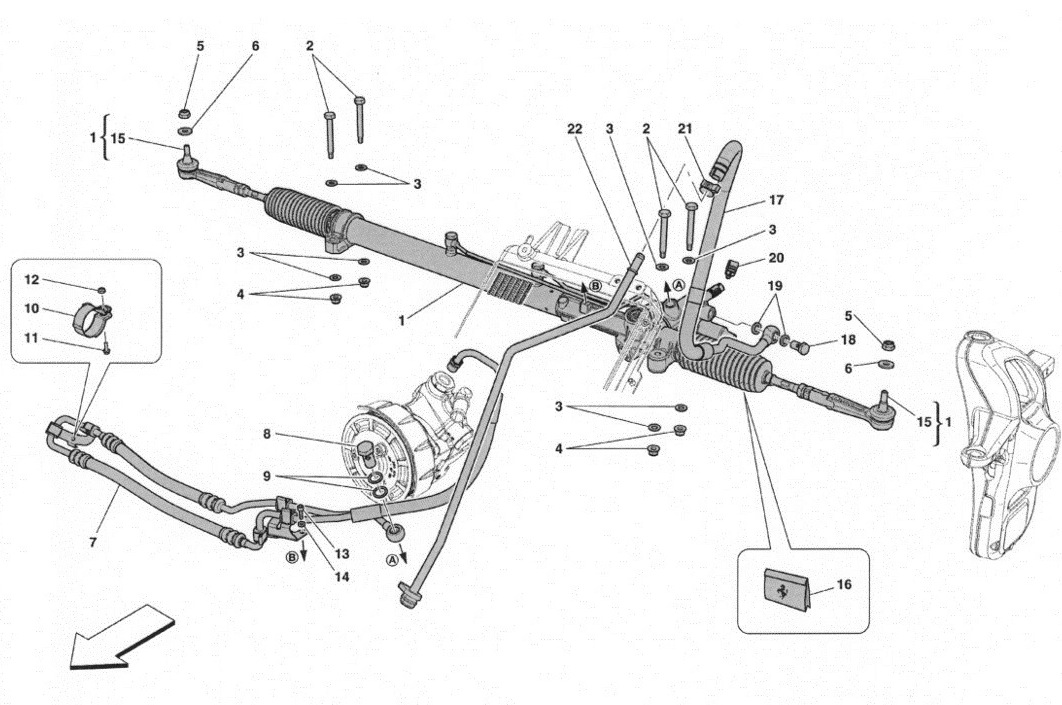

HYDRAULIC POWER STEERING BOX

Location Part # Quantity* Description Price Add To Cart
1 256225 0 STEERING BOX -Not for RHD- $5,507.78
1 267116 0 STEERING BOX -Applicable for RHD- $7,975.24
2 250236 0 SCREW -M10 X 1.25 X 80- -No longer supplied- -Replaced by 277720- Unavailable
2 277720 0 SCREW -M10 X 1.25 X 80- $5.46
3 14496624 0 WASHER $0.90
4 14058621 0 NUT Unavailable
5 102742 0 NUT Unavailable
6 12626224 0 WASHER Unavailable
7 271057 0 PIPE FROM PUMP TO STEERING BOX -Not for RHD- $586.65
7 262353 0 PIPE FROM PUMP TO STEERING BOX -Applicable for RHD- Unavailable
8 184727 0 CONNECTOR PIPE FOR UNION -Not for RHD- $7.45
8 276087 0 CONNECTOR PIPE FOR UNION -Applicable for RHD- $24.34
9 10257060 0 GASKET $0.90
10 267866 0 COMPL. BRACKET -For fastening pipe to LH bracket on steering box- $37.36
10 275430 0 COMPL. BRACKET -For fastening pipe to centre bracket on steering box- -Applicable for RHD- Unavailable
11 16285127 0 SCREW -M6 X 16- Superseded
12 14040614 0 NUT Unavailable
13 14304024 0 SCREW -M5 X 10- Superseded
14 11181574 0 WASHER Unavailable
15 250196 0 ROD END FOR STEERING BOX $483.12
16 229521 0 STEERING BOX GAITER REPLACEMENT KIT $517.63
17 268011 0 PIPE FROM STEERING BOX TO RADIATOR -Not for RHD- $169.08
17 262354 0 PIPE FROM STEERING BOX TO RADIATOR -Applicable for RHD- Unavailable
18 277407 0 CONNECTOR PIPE FOR UNION $12.24
19 10280060 0 GASKET $0.90
20 259508 0 CLIP Unavailable
21 13126070 0 COLLAR $1.38
22 268110 0 PIPE FROM DISCONNECTOR UNION TO RADIATOR $112.14

* Quantity shown indicates the number of pieces used in the diagram.
