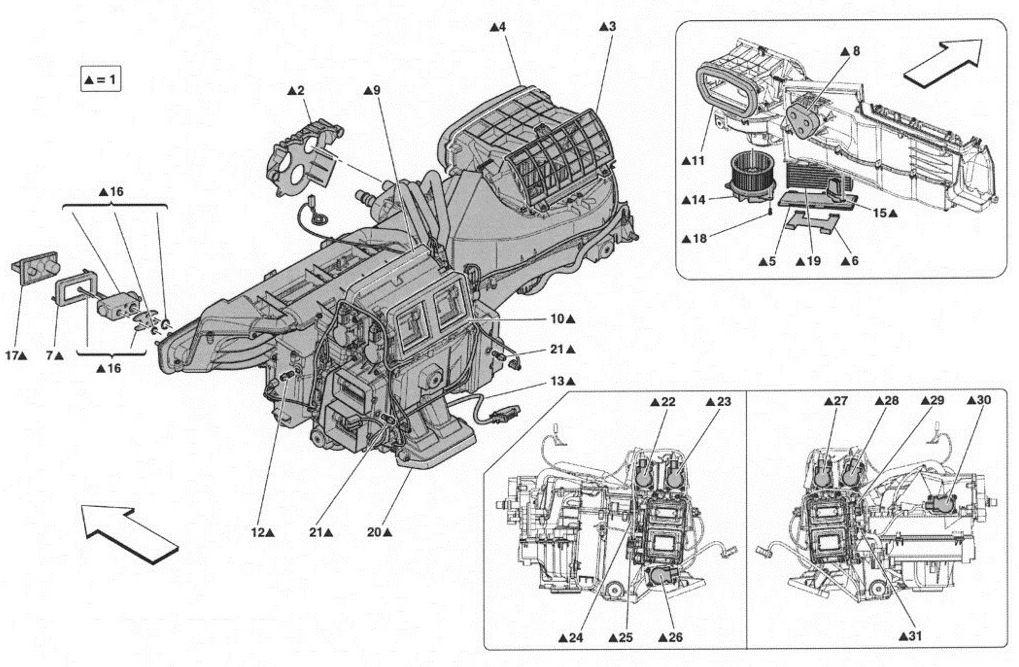

EVAPORATOR UNIT

Go to Split View

EVAPORATOR UNIT

Location Part # Quantity* Description Price Add To Cart
1 83391200 0 COMPL. AC UNIT -Not for RHD- $3,864.67
1 83737100 0 COMPL. AC UNIT -Applicable for RHD- Unavailable
2 82045500 0 PIPE RETAINER $91.45
3 82045700 0 GRILLE $163.50
4 82045800 0 FLANGE $162.05
5 68390600 0 FILTER COVER $136.13
6 68390700 0 COVER FASTENER $122.51
7 82046200 0 GASKET $265.20
8 82046400 0 WATER PIPE FILLER FOAM $136.15
9 82046600 0 DEFROSTER DUCT FILLER FOAM $187.98
10 82046800 0 FRONT FILLER FOAM $210.98
11 82046900 0 INTAKE FILLER FOAM $200.93
12 83749200 0 EVAPORATOR SENSOR $215.77
13 84025000 0 WIRING HARNESS $972.33
14 82048800 0 FAN $1,076.94
15 82049000 0 LPM2 $420.70
16 82073600 0 TXV SERVICE KIT $481.21
17 82049600 0 CAP Unavailable
18 68391900 0 SCREW $3.71
19 82035700 0 ANTI-POLLEN FILTER $104.61
20 84025100 0 REAR DUCT SEAL $266.87
21 68390100 0 AIR SENSOR $14.43
22 82047900 0 ACTUATOR $190.29
23 82047700 0 ACTUATOR $209.39
24 82048100 0 ACTUATOR $190.29
25 82048200 0 ACTUATOR $190.29
26 83941300 0 ACTUATOR $285.17
27 82047600 0 ACTUATOR $181.22
28 82047500 0 ACTUATOR $181.22
29 82047400 0 ACTUATOR $190.29
30 82047200 0 ACTUATOR $199.43
31 82047300 0 ACTUATOR $190.29

* Quantity shown indicates the number of pieces used in the diagram.
