AUDIO SPEAKER SYSTEM

Go to Split View

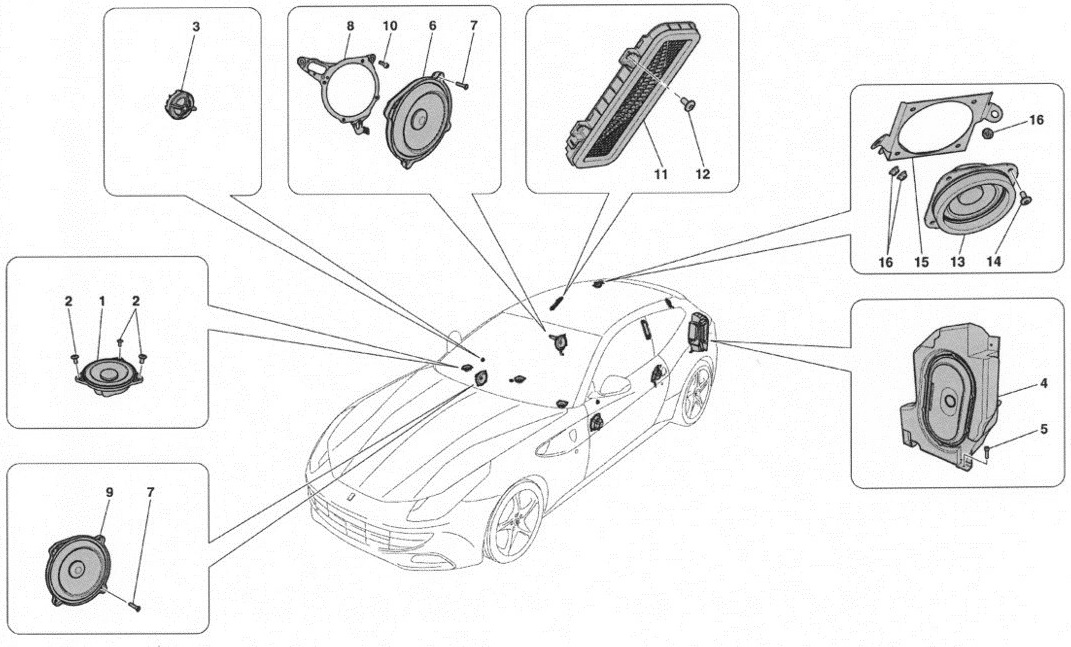

AUDIO SPEAKER SYSTEM

Location Part # Quantity* Description Price Add To Cart
1 253861 0 TWIDDLER -Q.ty 3 for Hi-Fi version- $270.31
2 68176200 0 SCREW -M5 X 10- -Q.ty 9 for Hi-Fi version- $1.24
3 258166 0 TWEETER -Q.ty 3 for Hi-Fi version- $142.61
4 252860 0 BASS BOX -Hi-Fi version- $1,041.27
5 14304220 0 SCREW -M5 X 16- -Hi-Fi version- Unavailable
6 260646 0 SPEAKER -In Kevlar- -Standard- Unavailable
7 16285127 0 SCREW -M6 X 16- -Not for J- Superseded
7 13311517 0 SCREW -M5 X 28- -Applicable for J- Unavailable
8 260802 0 RH LATERAL WOOFER MOUNTING BRACKET Unavailable
8 260804 0 LH LATERAL WOOFER MOUNTING BRACKET Unavailable
9 260646 0 SPEAKER -In Kevlar- -Standard- Unavailable
9 259402 0 SPEAKER -Hi-Fi version- $534.19
10 16285127 0 SCREW -M6 X 16- Superseded
11 255697 0 EDPL SPEAKER $271.65
12 68176200 0 SCREW -M5 X 10- $1.24
13 262757 0 SPEAKER -Hi-Fi version- $235.42
14 68176200 0 SCREW -M5 X 10- -Hi-Fi version- $1.24
15 270167 0 RH REAR SPEAKER FASTENER BRACKET -Hi-Fi version- Unavailable
15 270168 0 LH REAR SPEAKER FASTENER BRACKET -Hi-Fi version- Unavailable
16 14059111 0 NUT -Hi-Fi version- Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
