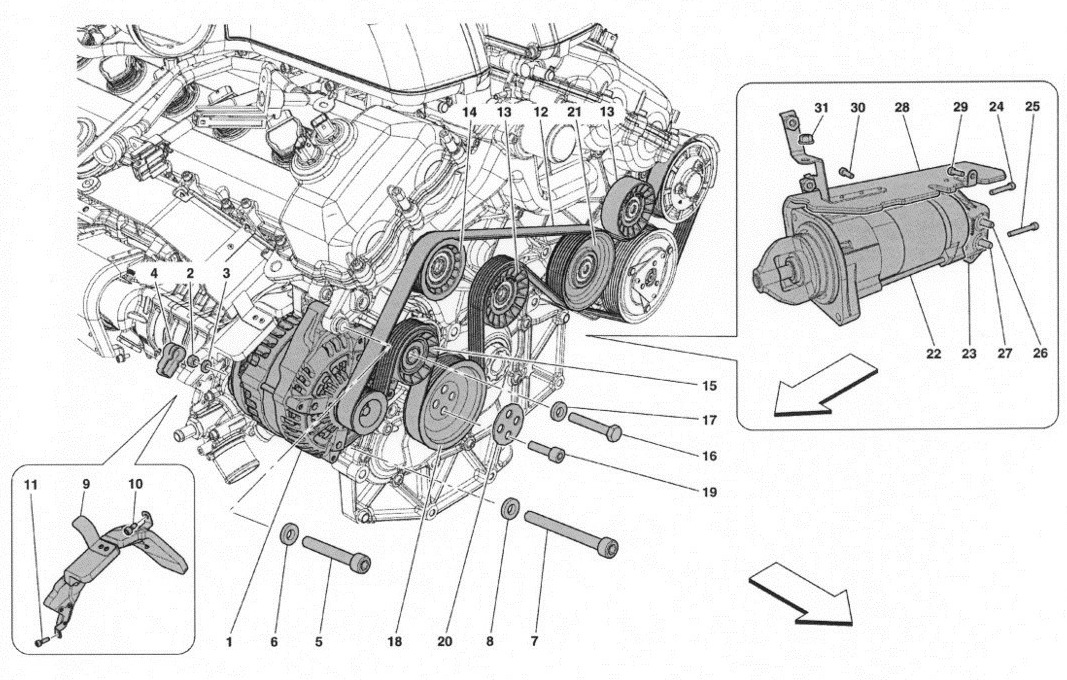

ALTERNATOR - STARTER MOTOR

Go to Split View

ALTERNATOR - STARTER MOTOR

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 263834 *Qty: 0 ALTERNATOR $1,395.23
Location: 2 Prev | Next Part: 16102314 *Qty: 0 NUT Call
Location: 3 Prev | Next Part: 12601374 *Qty: 0 WASHER $0.90
Location: 4 Prev | Next Part: 154803 *Qty: 0 PROTECTIVE CAP $5.51
Location: 5 Prev | Next Part: 14308224 *Qty: 0 SCREW -M10 X 1.25 X 65- $1.25
Location: 6 Prev | Next Part: 10569474 *Qty: 0 WASHER $0.90
Location: 7 Prev | Next Part: 14308724 *Qty: 0 SCREW -M10 X 1.25 X 100- $4.10
Location: 8 Prev | Next Part: 10569474 *Qty: 0 WASHER $0.90
Location: 9 Prev | Next Part: 268071 *Qty: 0 HEAT SHIELD Call
Location: 10 Prev | Next Part: 233600 *Qty: 0 SCREW -M6 X 12- $0.90
Location: 11 Prev | Next Part: 231617 *Qty: 0 SCREW -M6 X 18- $0.90
Location: 12 Prev | Next Part: 243857 *Qty: 0 BELT $72.11
Location: 13 Prev | Next Part: 272554 *Qty: 0 SMOOTH PULLEY $202.69
Location: 14 Prev | Next Part: 252513 *Qty: 0 6-GROOVE PULLEY WITH SCREW $148.22
Location: 15 Prev | Next Part: 271881 *Qty: 0 BELT TENSIONER $143.22
Location: 16 Prev | Next Part: 16044431 *Qty: 0 SCREW -M8 X 60- $0.90
Location: 17 Prev | Next Part: 11193874 *Qty: 0 WASHER $0.90
Location: 18 Prev | Next Part: 260136 *Qty: 0 ANCILLARY DRIVE BELT $122.98
Location: 19 Prev | Next Part: 14306424 *Qty: 0 SCREW $0.90
Location: 20 Prev | Next Part: 258597 *Qty: 0 PLATE Call
Location: 21 Prev | Next Part: 257942 *Qty: 0 6-GROOVE PULLEY WITH SCREW $184.94
Location: 22 Prev | Next Part: 272494 *Qty: 0 STARTER MOTOR $715.10
Location: 23 Prev | Next Part: 272479 *Qty: 0 REAR STARTER MOTOR BRACKET Call
Location: 24 Prev | Next Part: 231624 *Qty: 0 SCREW -M6 X 45- $0.90
Location: 25 Prev | Next Part: 255494 *Qty: 0 SCREW -M6 X 55- Call
Location: 26 Prev | Next Part: 231628 *Qty: 0 SCREW -M8 X 25- $0.90
Location: 27 Prev | Next Part: 231629 *Qty: 0 SCREW -M8 X 30- $0.90
Location: 28 Prev | Next Part: 272830 *Qty: 0 HEAT SHIELD Call
Location: 29 Prev | Next Part: 231616 *Qty: 0 SCREW -M6 X 14- $0.90
Location: 30 Prev | Next Part: 233600 *Qty: 0 SCREW -M6 X 12- $0.90
Location: 31 Prev | Next Part: 14040611 *Qty: 0 NUT $0.90

* Quantity shown indicates the number of pieces used in the diagram.
