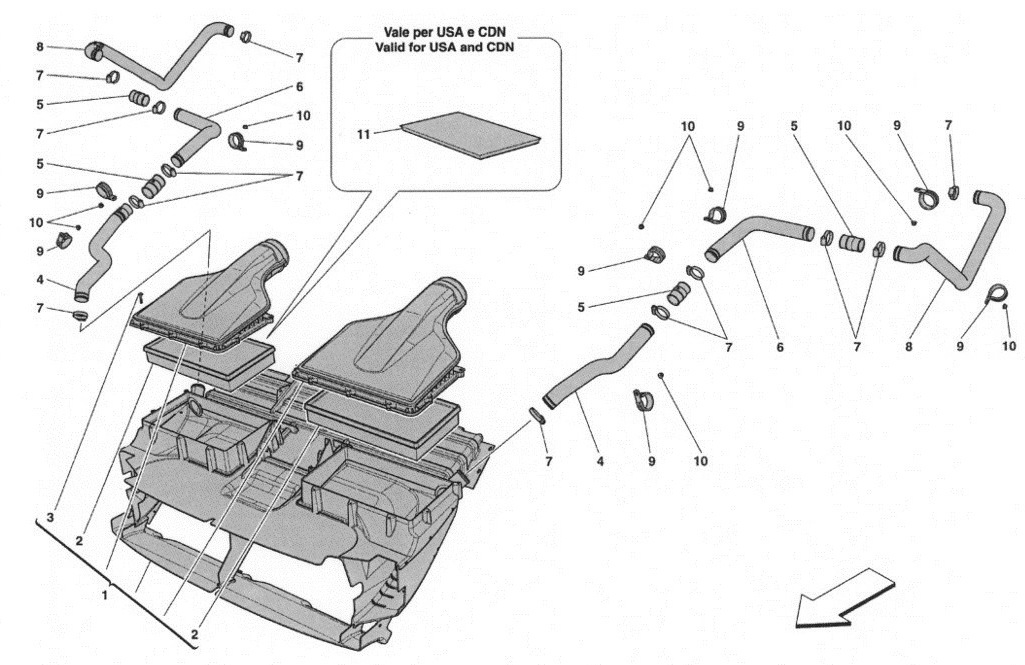

AIR INTAKE

Go to Split View

AIR INTAKE

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 265703 *Qty: 0 COMPL. AIR DUCT -Not for USA, CDN- Call
Location: 1 Prev | Next Part: 271139 *Qty: 0 COMPL. AIR DUCT -Applicable for USA, CDN- Call
Location: 2 Prev | Next Part: 223039 *Qty: 0 AIR FILTER $108.45
Location: 3 Prev | Next Part: 270024 *Qty: 0 SCREW -No longer supplied- -Replaced by 169815- Call
Location: 3 Prev | Next Part: 169815 *Qty: 0 SCREW $1.87
Location: 4 Prev | Next Part: 275476 *Qty: 0 COILED PIPE -D. 38- -L. 450 mm- $103.43
Location: 5 Prev | Next Part: 270296 *Qty: 0 MEMBRANE HOLDER PIPE -D. 38- Call
Location: 6 Prev | Next Part: 275474 *Qty: 0 COILED PIPE -D. 38- -L. 370 mm- $95.96
Location: 7 Prev | Next Part: 13000690 *Qty: 0 SCREW COLLAR $0.90
Location: 8 Prev | Next Part: 275478 *Qty: 0 COILED PIPE -D. 38- -L. 1070 mm- $173.21
Location: 9 Prev | Next Part: 107002 *Qty: 0 BRACKET WITH SHEATH $28.38
Location: 10 Prev | Next Part: 14040611 *Qty: 0 NUT $0.90
Location: 11 Prev | Next Part: 249164 *Qty: 0 AIR FILTER -Applicable for USA, CDN- $289.50

* Quantity shown indicates the number of pieces used in the diagram.
