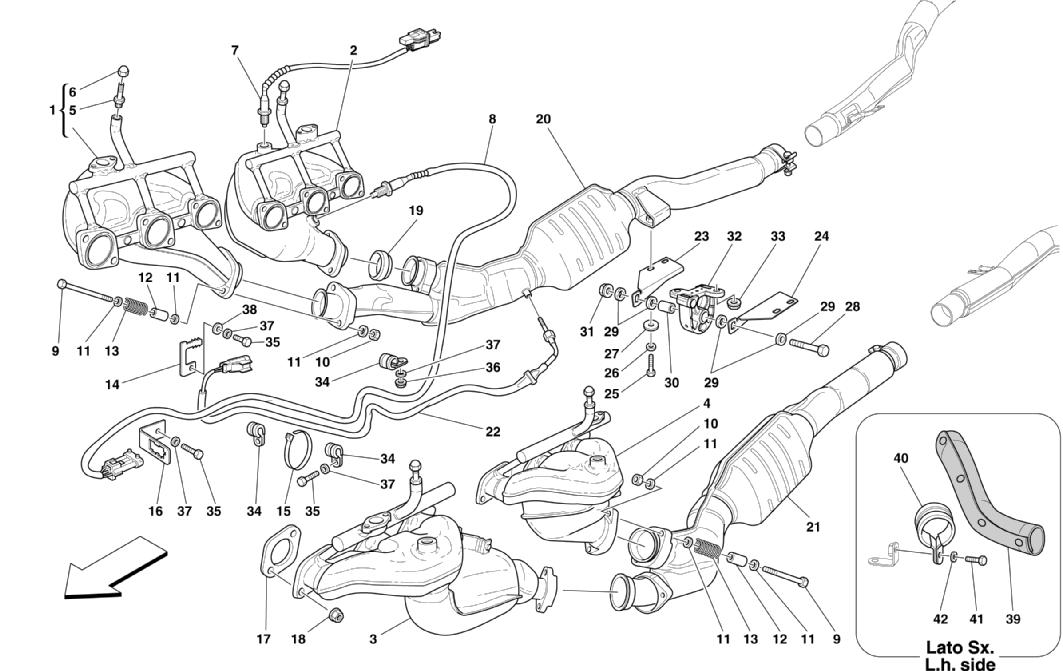

FRONT EXHAUST SYSTEM

Location Part # Quantity* Description Price Add To Cart
1 189758 1 R.H. FRONT EXHAUST MANIFOLD $5,378.36
2 194006 1 R.H. REAR EXHAUST MANIFOLD $6,562.06
3 189759 1 L.H. FRONT EXHAUST MANIFOLD $5,664.80
4 194007 1 L.H. REAR EXHAUST MANIFOLD $6,562.06
5 152630 4 THREADED UNION $97.44
6 150595 4 CAP NUT $1.16
7 182837 2 FRONT LAMBDA FEELER -For front side head $324.80
7 187587 2 FRONT LAMBDA FEELER -For rear side head $617.10
8 187586 2 REAR LAMBDA FEELER -For rear side head $276.06
8 180915 2 REAR LAMBDA FEELER -For front side head $276.06
9 16045124 8 SCREW Unavailable
10 114748 8 NUT $21.29
11 128010 24 WASHER $3.92
12 114749 8 SPACER $5.16
13 111743 8 SPRING $16.46
14 162606 2 CLIP $1.97
15 206739 7 CLAMP $11.41
16 178366 4 BRACKET $5.01
17 143408 12 GASKET $24.34
18 138392 24 NUT $1.50
19 154981 4 GASKET Unavailable
20 197578 1 R.H. CATALYST $7,122.84
21 197577 1 L.H. CATALYST $7,122.84
22 200934 2 TEMPERATURE SENSOR $227.34
23 196440 1 R.H. BRACKET $7.19
24 196441 1 L.H. BRACKET $67.15
25 16043224 4 SCREW Unavailable
26 12638578 4 WASHER Unavailable
27 12646724 4 WASHER $0.90
28 16044124 1 SCREW Unavailable
29 107618 4 WASHER $2.58
30 190622 1 SPACER $16.73
31 114748 1 NUT $21.29
32 199731 1 ANTI-VIBRATION SUPPORT $89.56
33 14058519 2 NUT Unavailable
34 10441790 4 BRACKET WITH SHEATH $0.95
35 10902224 10 SCREW $0.90
36 15896214 1 NUT Unavailable
37 127494 12 WASHER $0.90
38 12643724 2 WASHER Superseded
39 208856 1 HEAT SHIELD FOR L.H. ENGINE CABLES $63.05
40 10441990 1 BRACKET WITH SHEATH Unavailable
41 10902124 1 SCREW $0.90
42 127494 1 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
