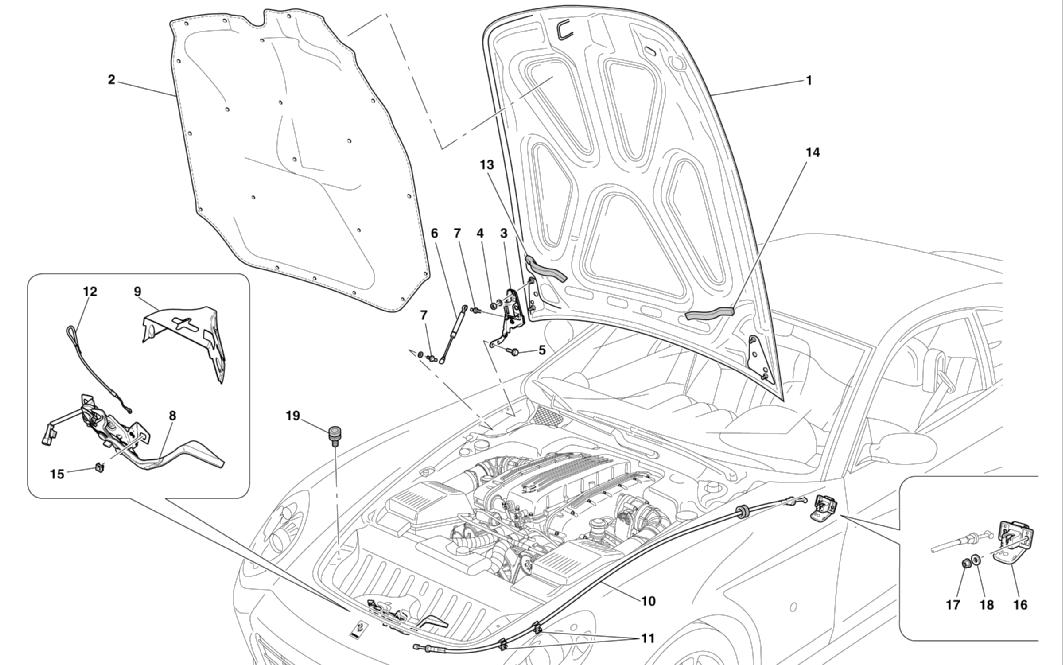

ENGINE BONNET

Go to Split View

ENGINE BONNET

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 66990211 *Qty: 1 FRONT HOOD BONNET $4,957.76
Location: 2 Prev | Next Part: 67447500 *Qty: 1 INNER LINING Call
Location: 3 Prev | Next Part: 67159900 *Qty: 1 COMPLETE L.H. HINGE $203.40
Location: 3 Prev | Next Part: 67159800 *Qty: 1 COMPLETE R.H. HINGE $203.40
Location: 4 Prev | Next Part: 14059311 *Qty: 4 NUT $0.90
Location: 5 Prev | Next Part: 16287124 *Qty: 4 SCREW $1.26
Location: 6 Prev | Next Part: 67740000 *Qty: 2 GAS SPRING $121.90
Location: 7 Prev | Next Part: 65939900 *Qty: 4 PIN $3.49
Location: 8 Prev | Next Part: 67611400 *Qty: 1 ENGINE BONNET LOCK Call
Location: 9 Prev | Next Part: 67629100 *Qty: 1 BONNET LOCK COVER -Not for RHD $146.98
Location: 9 Prev | Next Part: 67847100 *Qty: 1 BONNET LOCK COVER -Valid for RHD Call
Location: 10 Prev | Next Part: 67005600 *Qty: 1 CABLE FOR MOTOR BONNET OPENING -Not for RHD $90.04
Location: 10 Prev | Next Part: 68298600 *Qty: 1 CABLE FOR MOTOR BONNET OPENING -Valid for RHD Call
Location: 11 Prev | Next Part: 14569480 *Qty: 2 CLIP $0.90
Location: 12 Prev | Next Part: 67005700 *Qty: 1 EMERGENCY CABLE $48.26
Location: 13 Prev | Next Part: 68298400 *Qty: 1 R.H. GASKET $44.03
Location: 14 Prev | Next Part: 68298500 *Qty: 1 L.H. GASKET $44.03
Location: 15 Prev | Next Part: 67330700 *Qty: 2 NUT WITH CAGE -Not as spare part -Replaced by 68121800 Call
Location: 15 Prev | Next Part: 68121800 *Qty: 2 NUT WITH CAGE $12.90
Location: 16 Prev | Next Part: 67003800 *Qty: 1 HANDLE FOR BONNET OPENING $70.26
Location: 17 Prev | Next Part: 14059111 *Qty: 2 NUT $0.90
Location: 18 Prev | Next Part: 12639724 *Qty: 2 WASHER $0.90
Location: 19 Prev | Next Part: 67161800 *Qty: 2 ANTIVIBRATION PAD $6.32

* Quantity shown indicates the number of pieces used in the diagram.
